D6021/D6031 Double Unit Series (Push Side) Power Operator
585 Presence Detector Wiring on Double Door Opening
• For Master/Follow or Master-Coord/Follow only
(Sync Cable must be used to connect inverters.)
• Door is normally closed.
• Activating switch will open door.
• Door will close after hold open time delay has
elapsed.
• If door is closed and 585 Presence Detector
senses something in opening, door will not
open.
• If door is at open position and 585 Presence
Detector senses something in opening, door
will not close.
NOTE: Presence Detector and/or sensors CANNOT
be used to active opening cycle of door.
To activate presence detector functionality:
• On inverter, use up/down arrows to scroll to
Page 1.
• Use left/right arrows to change to Page 2.
• Use up/down arrows to scroll to PDET Option.
• Use left/right arrows to change value from OFF
to ON.
• Use instructions provided with 585 sensor to
program and make any necessary adjustments
to sensor.

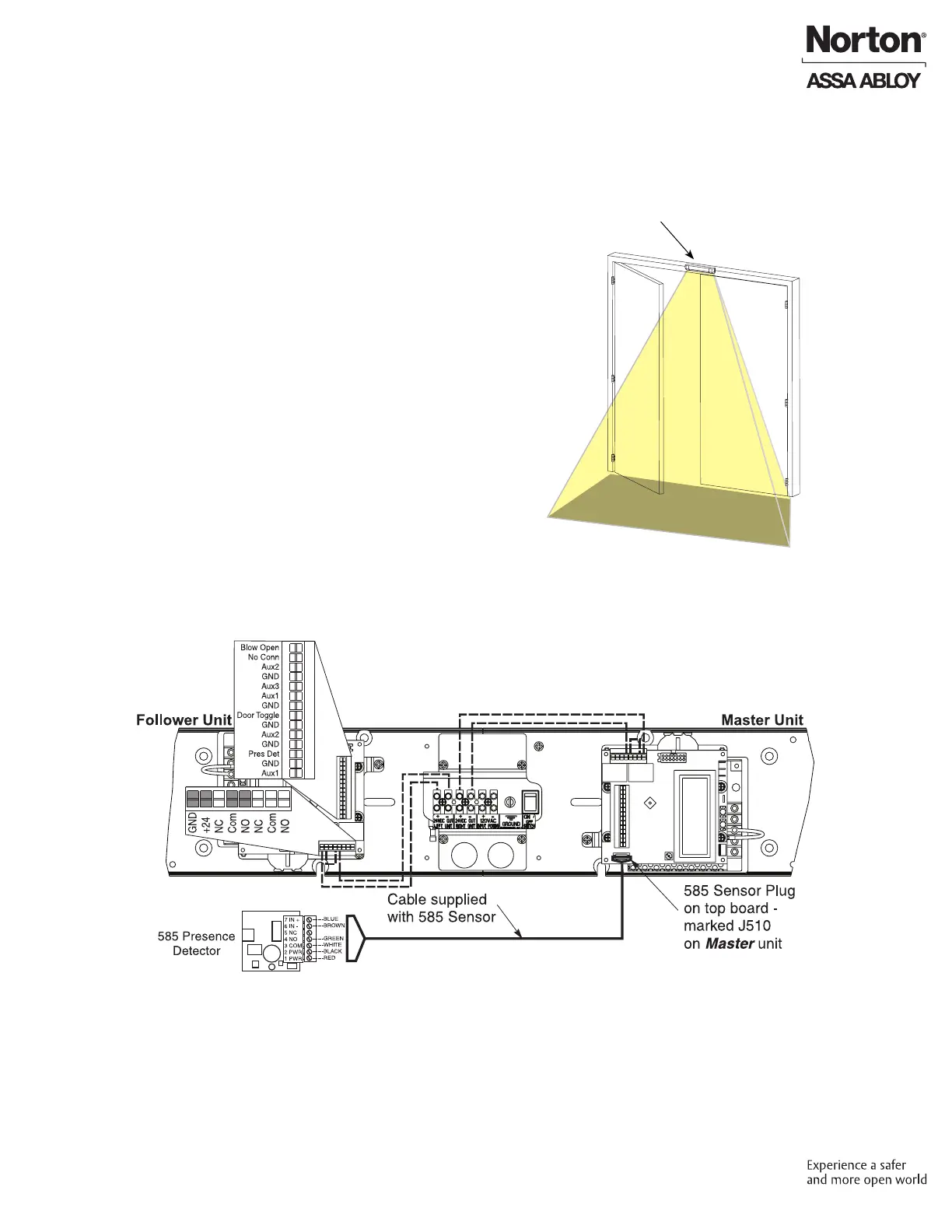

585 Presence Detector
mounted to / above frame
(on double opening)
To Next Page
