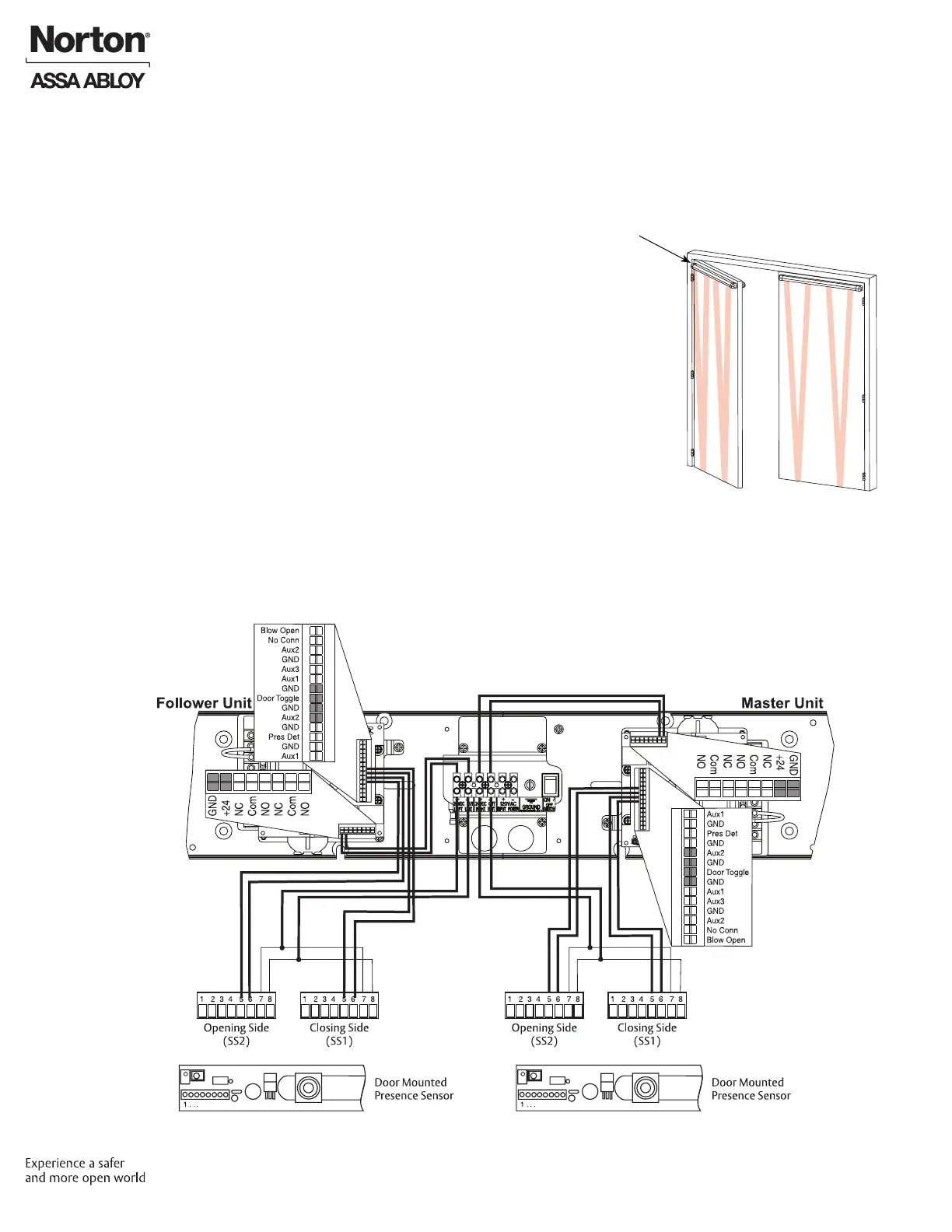

D6021/D6031 Double Unit Series (Push Side) Power Operator
Door Mounted Presence Detector (596 Series) Wiring on Double Door Opening
• For Master/Follow or Master-Coord/Follow only (Sync
Cable must be used to connect inverters.)
• Doors are normally closed.
• Activating switch will open door.
• Door will close after hold open time delay has elapsed.
• If using door mounted presence sensors:
• For Closing cycle sensor (SS1), adjust DT on page 2
of controller screen. If DT is set to Standard, this is
normal Door Toggle mode and will not work with
Presence Sensor; set to Stall, door closing will stall
until presence not sensed; set to Return Open,
presence is sensed and door fully reopens; set to
Stall/Open, presence is sensed and door will stall
then reopen once presence not sensed.
• For Opening cycle sensor (SS2), adjust A2 Option on
page 2 of controller screen. If door is set to Standard,
switch or other activation into A2 acts like A1. If A2
set to Stall, door will stop opening and stall until
presence not sensed; set to Return Home, door
will close back to Home position when presence is
sensed; if set to Stall/Home, door will stall and return
home once presence not sensed.
NOTE: Presence Detector and/or sensors CANNOT be used
to active opening cycle of door.
596 Presence Sensor
mounted to opening side
or closing side of door
(on double opening)
To Next Page
