USER MANUAL
Page - 7
AP1 KEYPAD

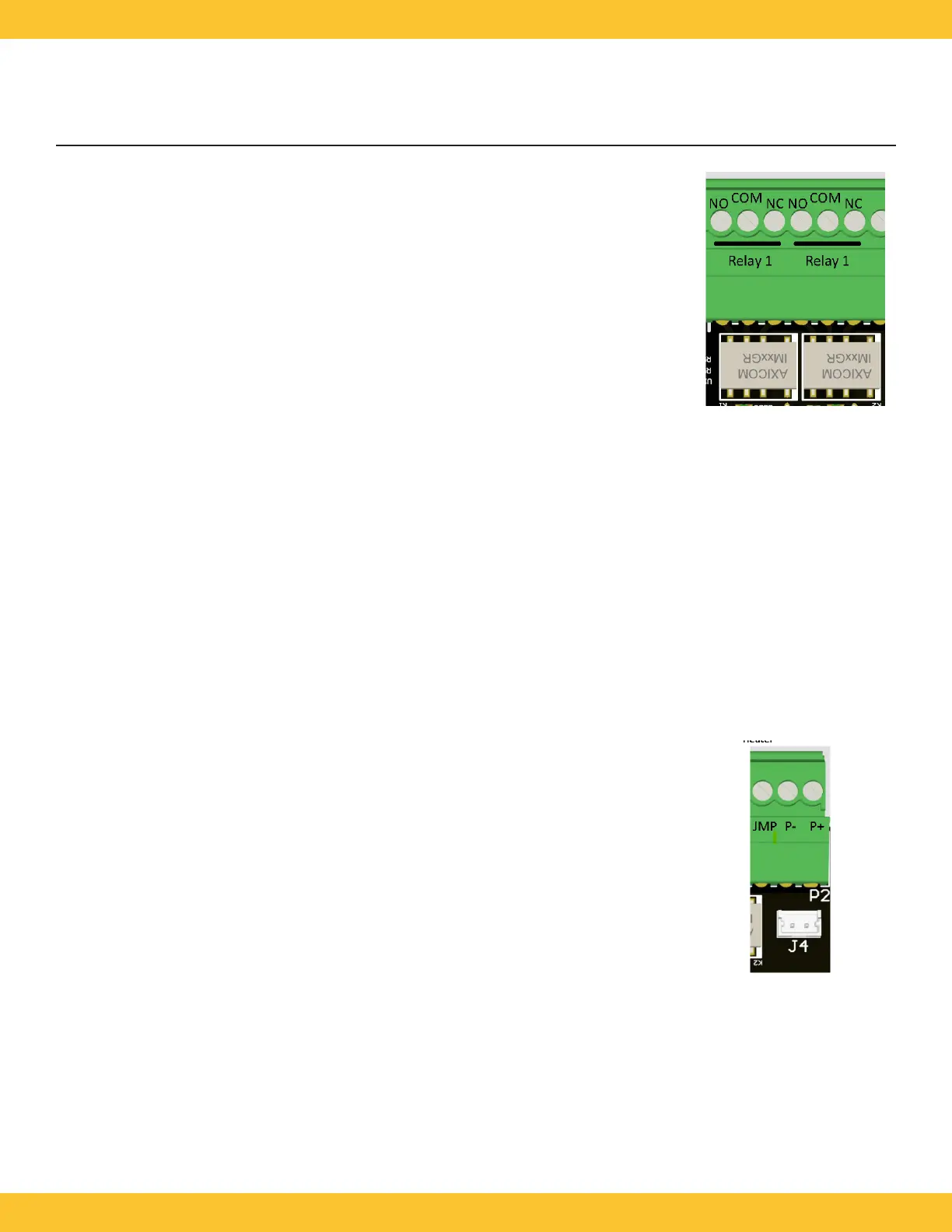

Relay 1 / Relay 2
NO – Normally Open
COM – Common
NC – Normally Closed
Relay 1 controls the door strike, mag lock or gate
trigger. Connection between the NO and COM
contacts is made when active. It is activated
whenever the AP1 grants access.
Relay 2’s function is determined by the AP1’s
conguration setting. It can be set to function as
an alarm output, slave to relay 1, slave to relay on
with different on time, a heater controller (active
when freezing temperatures occur) or activated
only by the system controller.
The LEDs below the relays will light when the
relay is active
Heater (if purchased)
Heater Power Connections
JMP – Connect this terminal to Relay 2 COM
using insulated 18 AWG wire.
P- - Heater negative power supply connection
P+ - Heater positive power supply connection
The connections are only used if an optional
heater is installed in the AP1. Heater power
connections are separate from the AP1 power
connections. Relay 2 is used to control the
heater. Connector J4 connects to the optional
heater incorporated into the 12 key touch-pad.
| OPENING & CONNECTIONS
