USER MANUAL
Page - 9
AP1 KEYPAD
Typical Applications
Before installing the keypad, determine where and how the device will be installed, since
the mounting location is determined by how the device will be used. For drive up access,
install the device where it can be reached from the vehicle’s driver door. If the keypad is
being used for walk up access, install it where it can be accessed by a person on foot.

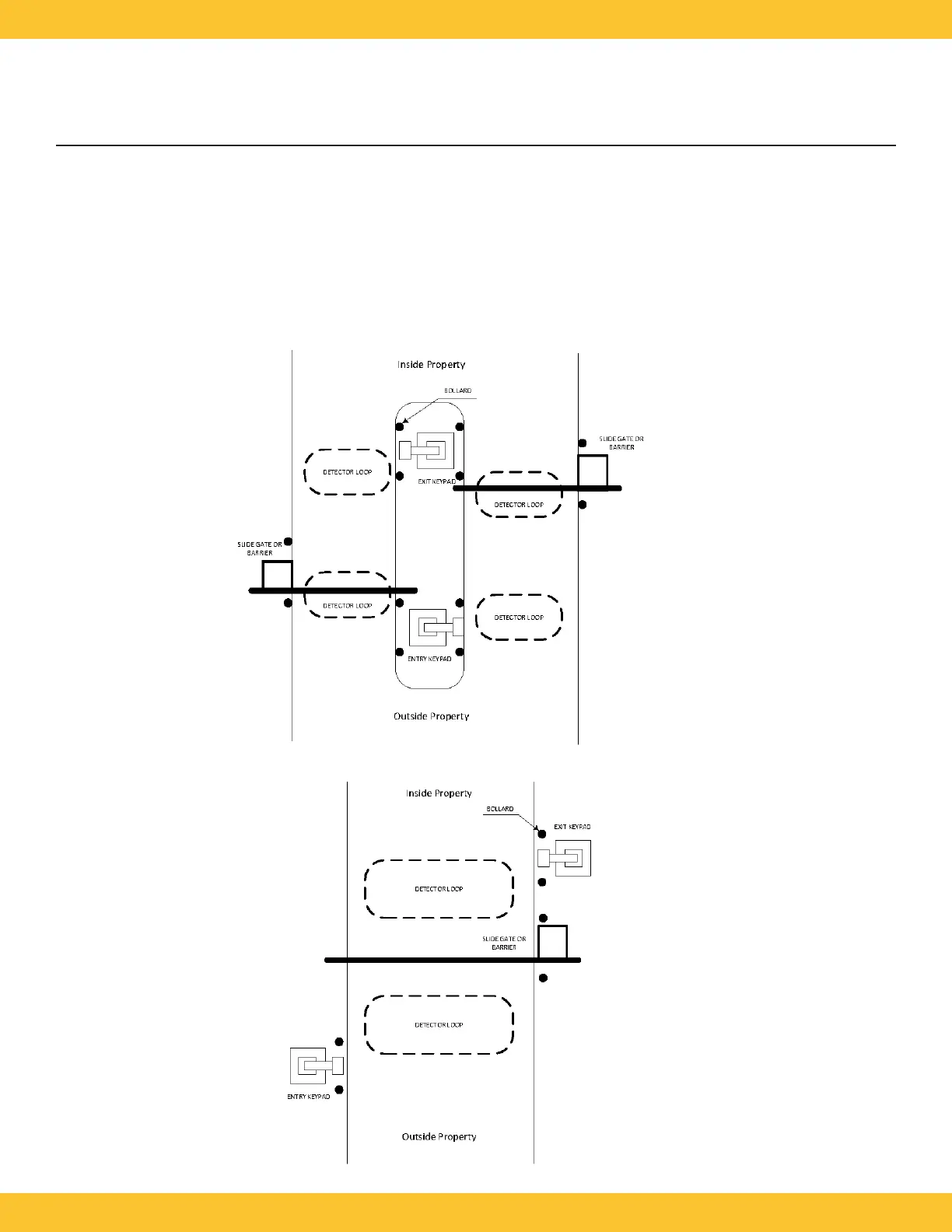

Island Scenario
Single Lane Scenario
