Commissioning the GSM-WiFi U - Standalone contd.

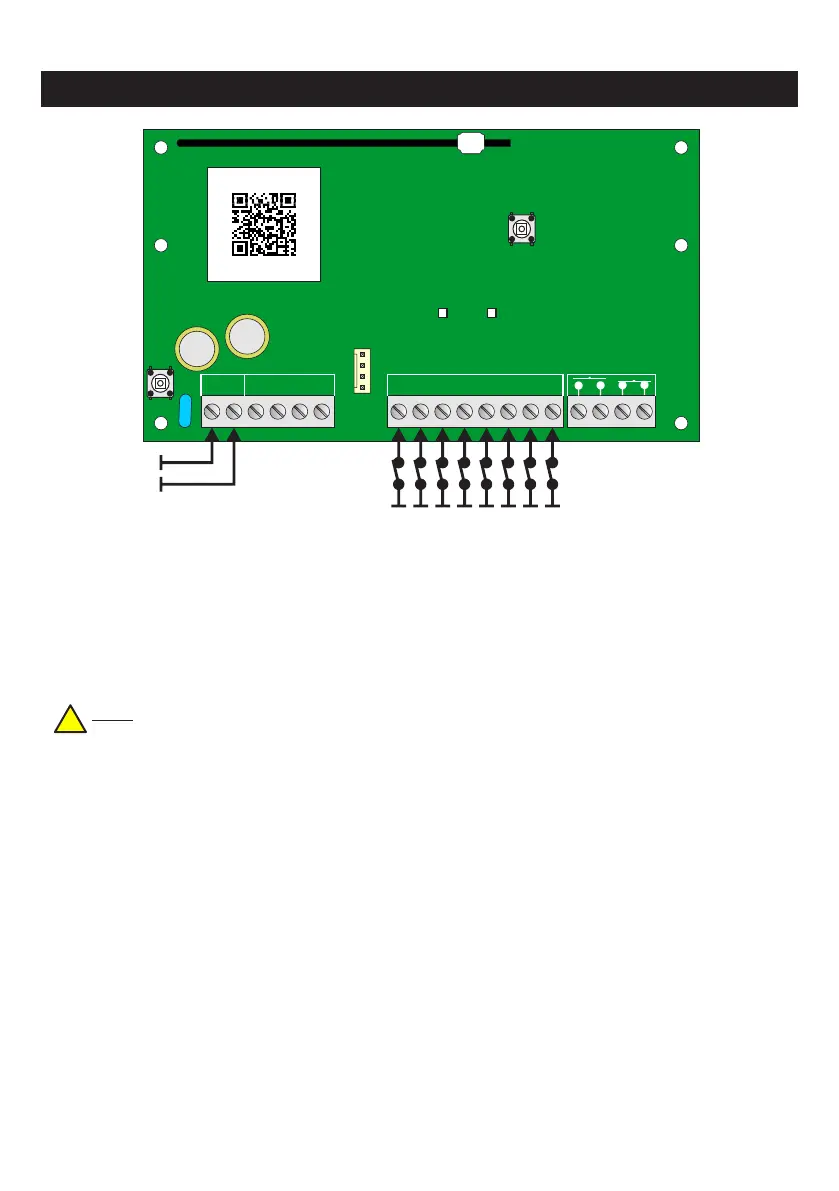

When an input is pulled down to 0V as illustrated, it is in the normal Restored state.
Removing this 0V i.e. when a switch is opened, the voltage on the terminal will pull
up to 3V and will Activate the input. These inputs are fully programmable through the
SmartLink700 App. The input triggers can also be changed so that they will activate
when 0V is applied and restore when 0V is removed. It is also possible to apply 12V
to an input to activate it. Input activations can also be delayed by up to 60 minutes.
The default input types are:
There are also 2 relay Outputs on the unit. Output 1 is a programmable Normally
Open output that by default follows the onboard tamper switch, and will also open if
a fault is detected on the GSM or Wi-Fi path. This output will be closed when the
tamper is closed and there are no faults detected on the communication paths. This
output will open if power is lost to the unit.
These outputs are fully programmable through the SmartLink700 App. The outputs
can also be inverted if required.
Output 2 is normally closed-circuit. It can be wired into a Key input and can be
controlled by the HKC app i.e., when it goes open-circuit it will arm a typical control
panel and when it goes closed-circuit it will disarm the panel.
Ireland
1 Fire
2 Panic
4 Arm/Disarm
5 Zone Inhibit
6 Mains Fail
8 Tamper
3 Verified Alarm
7 Pre-Alarm
United Kingdom
1 Fire
2 Panic
4 Open/Close
5 Zone Omitted
6 Mains Fail
8 Tamper
3 Intruder Alarm
7 Confirmed Alarm
9
Note: Slightly different
phraseology used in
Ireland and the UK.
!
