Assa Abloy SL100 - Final Checks; Latch Engagement; Tube-Strike Gap; Align Actuator Gauge

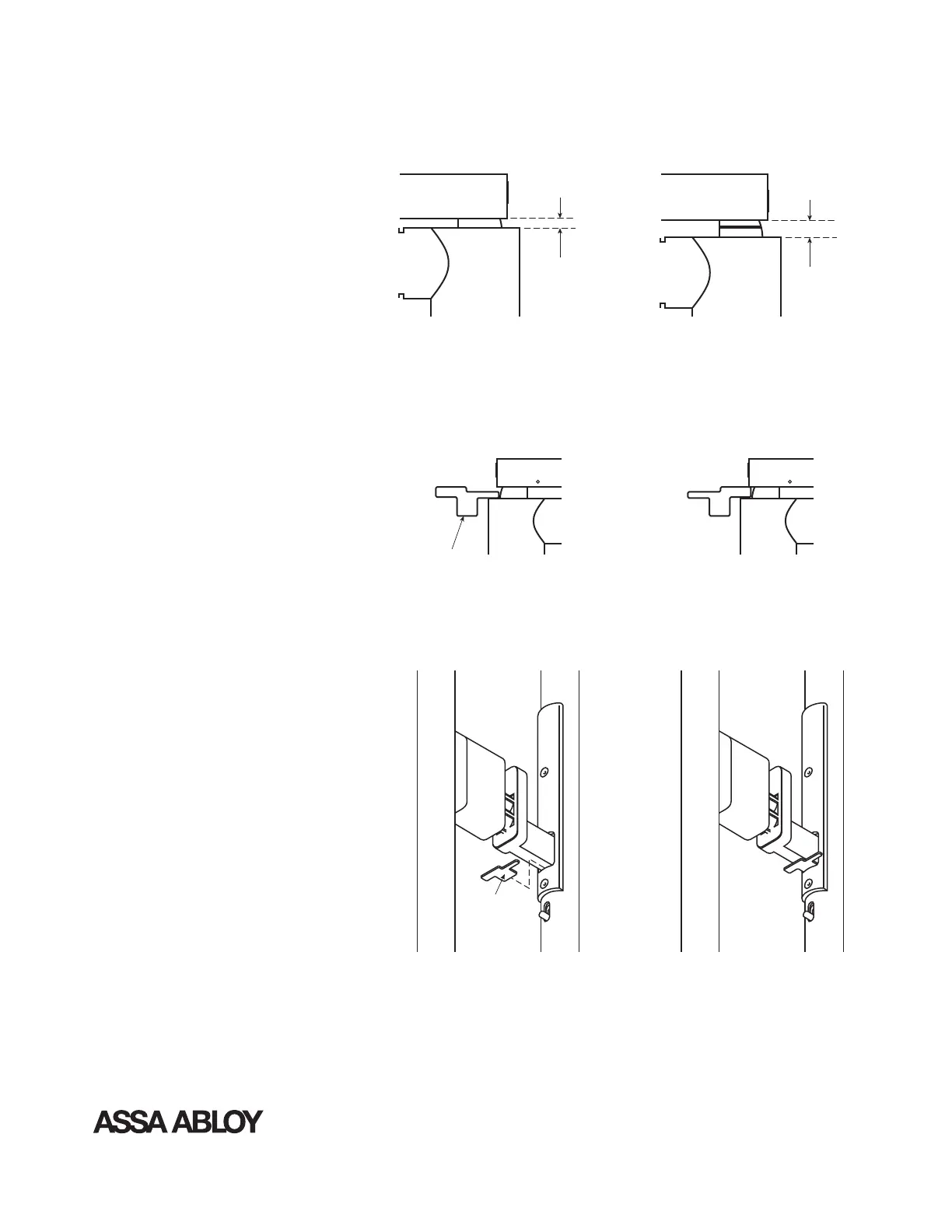

9. Final Checks
9.1 Latch Engagement
9.2 Tube-Strike Gap
1
/
8
" (3.180)
Minimum Latch
Engagement
1
/
4
" (6.35)
Maximum Latch
Engagement
Minimum Tube Gap
Latch & Actuator
Gauge
Maximum Tube Gap
9.3 Align Actuator Gauge
• Install the Latch and Actuator Gauge
in the bottom of the Actuator Post
Assembly.
• If the Latch and Actuator Gauge
cannot be installed, the alignment
must be adjusted.
• Realign the Panic Device Assembly
as necessary. Install Door Bushings.
• Do not operate the Panic Device if
the Latch and Actuator Gauge does
not fit.
Latch &
Actuator
Gauge
