Assa Abloy SL100 - Adjust Bolts; Maintenance; General Maintenance Instructions

9.4 Adjust Bolts
Installation
• Attach the Strike to the header using the Socket Cap Screws (
5
/
16
"-18).
• Close the door. The door should come to rest on the rubber stop pads.
• There should be approximately
1
/
16
" play between the Latch face and the Strike face.
• The retractable Latch should automatically move upward and engage in the Strike.
• If the retractable Latch does not engage in the Strike, move the door stops in.
• If the retractable Latch is loose inside the Strike (door is rattling), move the door stops out.
• Tighten 8-32 Screws to lock down adjustment door stops.
Adjustment
• To adjust the stop, loosen the 8-32 Set Screws and remove the rubber end pieces.
• Use an Allen wrench (
1
/
4
") to rotate in or out as needed.
10. Maintenance
10.1 General Maintenance Instructions
• Periodically check the fasteners. The fasteners must not be loose. If the fasteners are loose, reapply
threadlocker and tighten as necessary.
• Apply lubricant to Latch as needed.
Copyright
©
2018, ASSA ABLOY Accessories and Door Controls Group, Inc. All rights reserved. Reproduction in whole
or in part without the express written permission of ASSA ABLOY Accessories and Door Controls Group, Inc. is prohibited.
The global leader in
door opening solutions
7

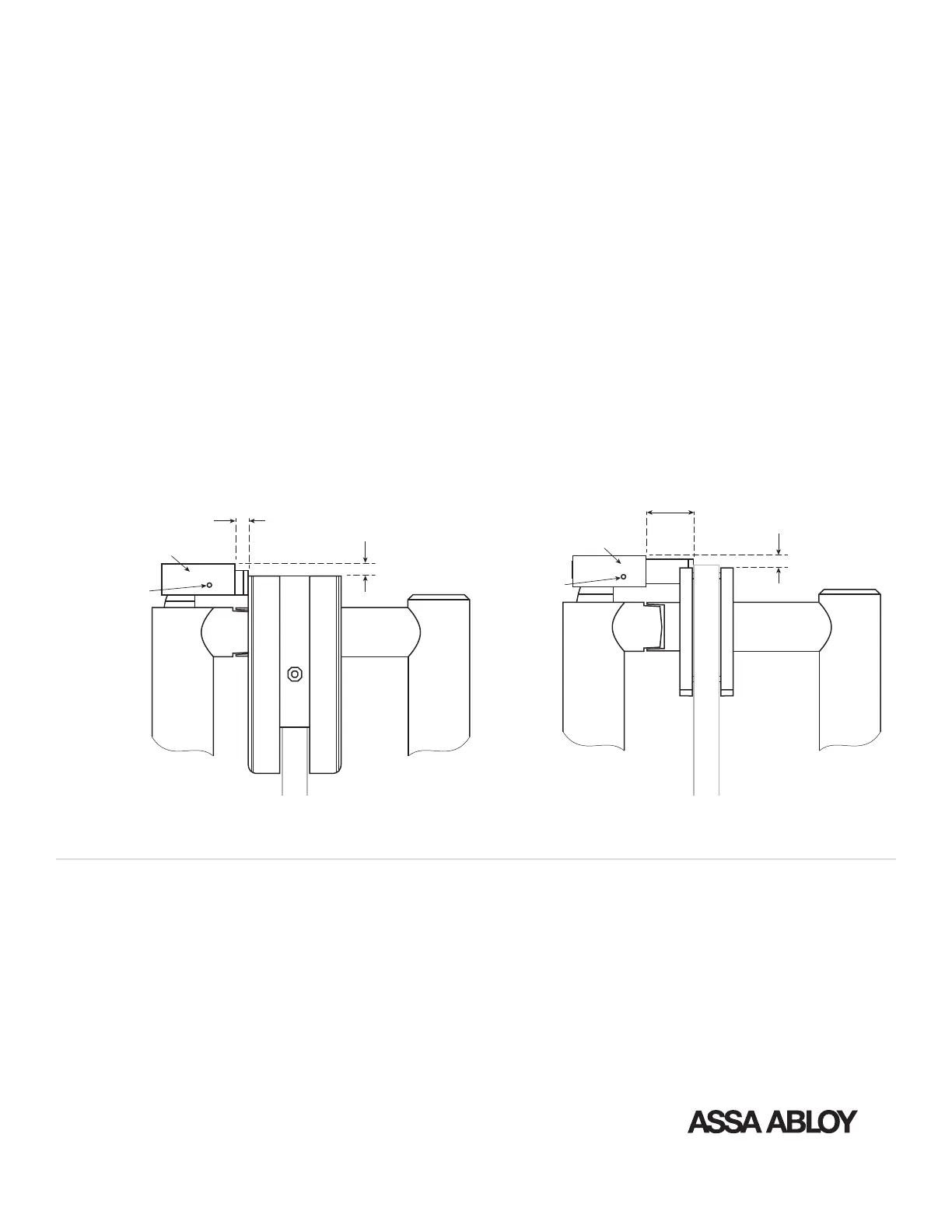

Adjustable Stops
Door Strike
8-32 Set
Screws
8-32 Set
Screws
Door Gap
Door Gap
Door Strike
Adjustable Stops
Rail Mount Glass Mount
