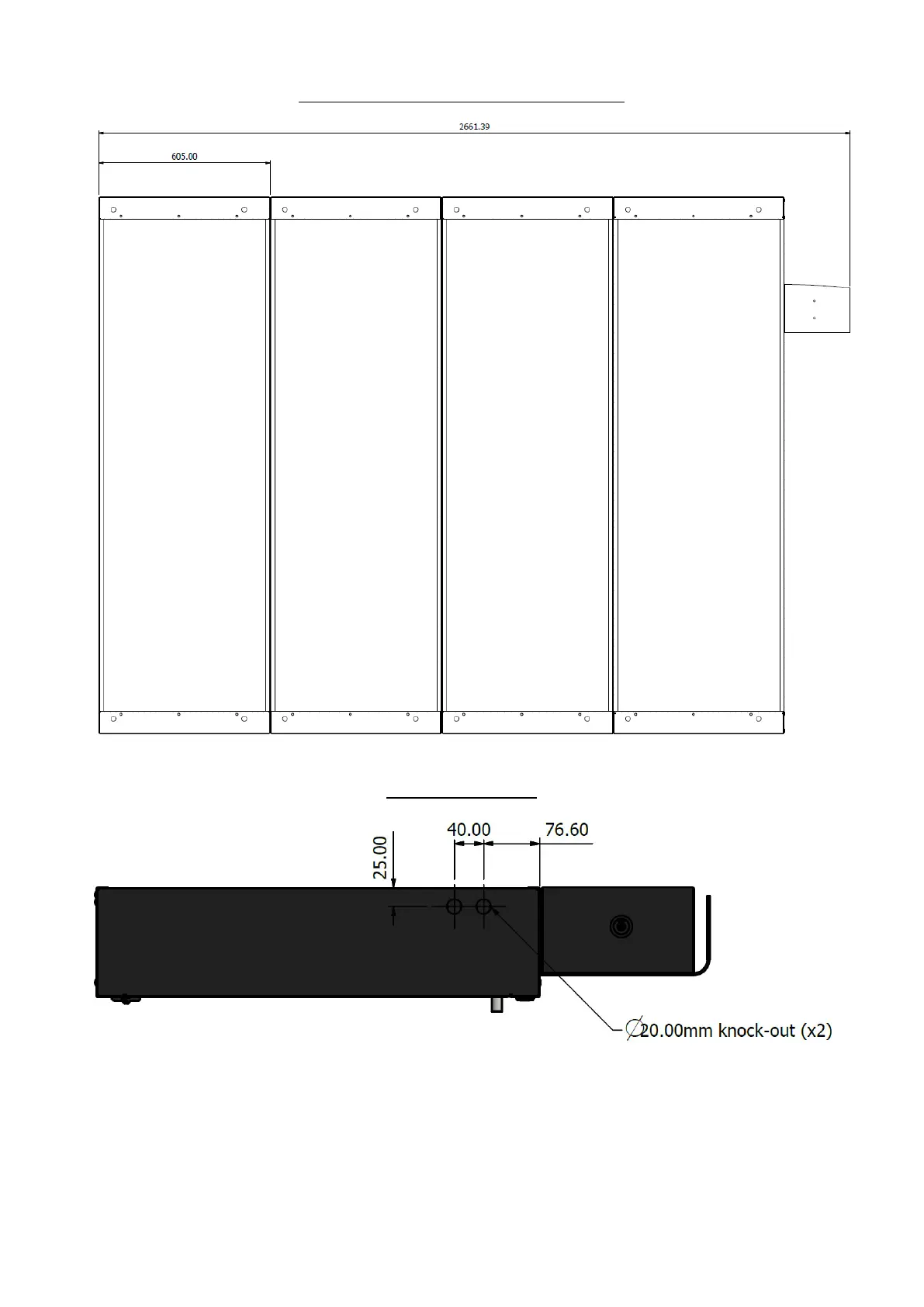

Traka Touch L System with Extension Cabinets
NOTE: Extension cabinets are the same dimensions as the main cabinet excluding the Pod.
Knockout Dimensions
NOTE: The Traka Touch L system is very heavy (60+kg) and therefore needs a strong wall to fix to. Fixings
are not included and so when selecting the appropriate fixings it is essential they are strong enough to
retain the Traka System and not pull out from the wall.
NOTE:
The wall (and any wall covering) to which the Traka System is fixed must be made of low flammability
material (at least 94 UL-5V flammability class equivalent).
