6.6 RE-FITTING THE CONTROL PANEL
1. Refit the Control Panel as removed in the ‘Attaching the Pod to the Cabinet’ section by engaging the spring hinges
in the corresponding slots on the Pod.

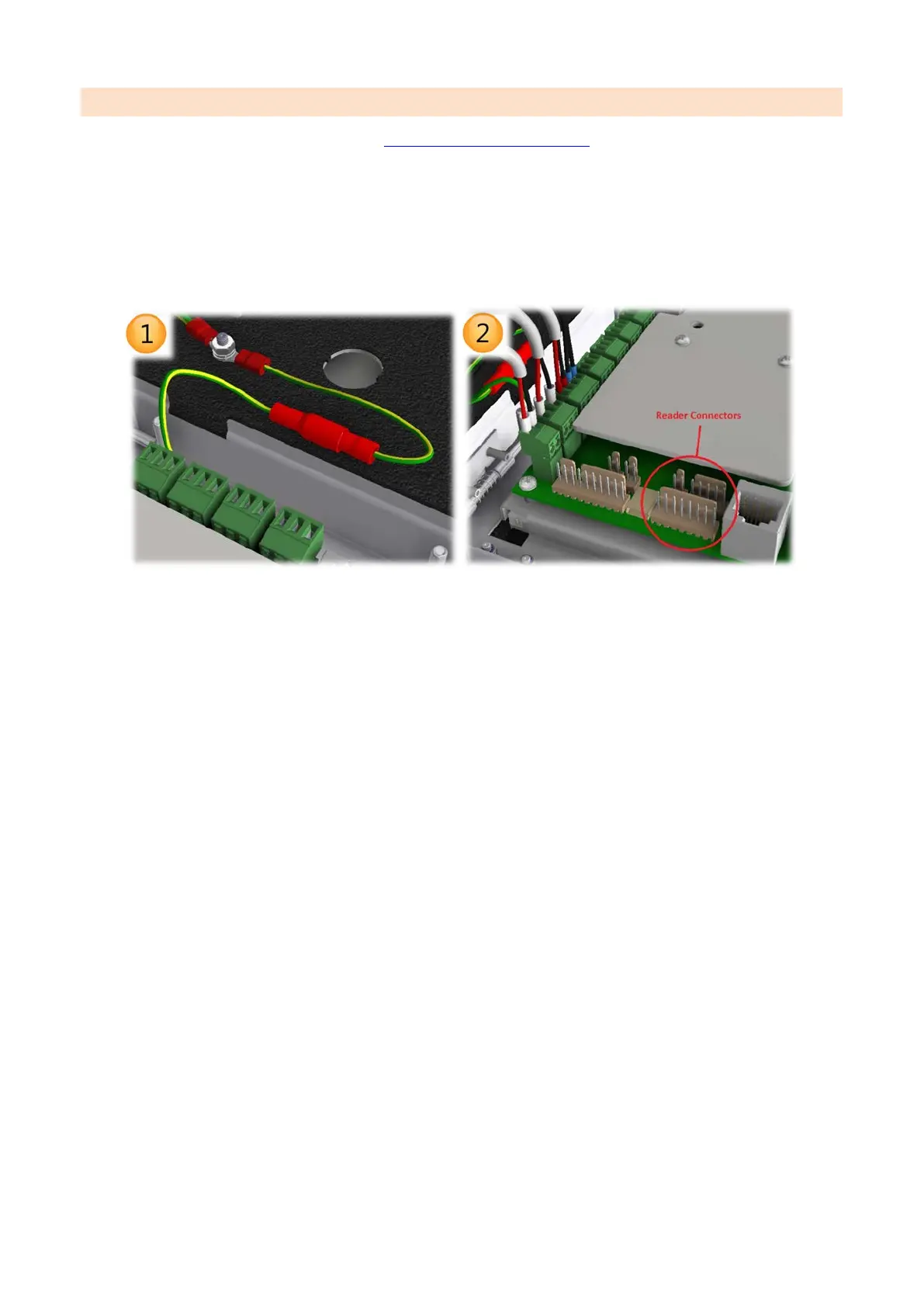

2. Connect the following cables to the Control Panel as shown below.
1. Earth Cable
2. Power, Battery, Door and Reader cable (if applicable)
3. Speaker, Network and USB cables (if applicable)
4. Receptor Cable
To Next Page
