V2.4 03/08/18 TD0068 Page 11 of 38
This Document is uncontrolled when printed unless over stamped “CONTROLLED DOCUMENT”

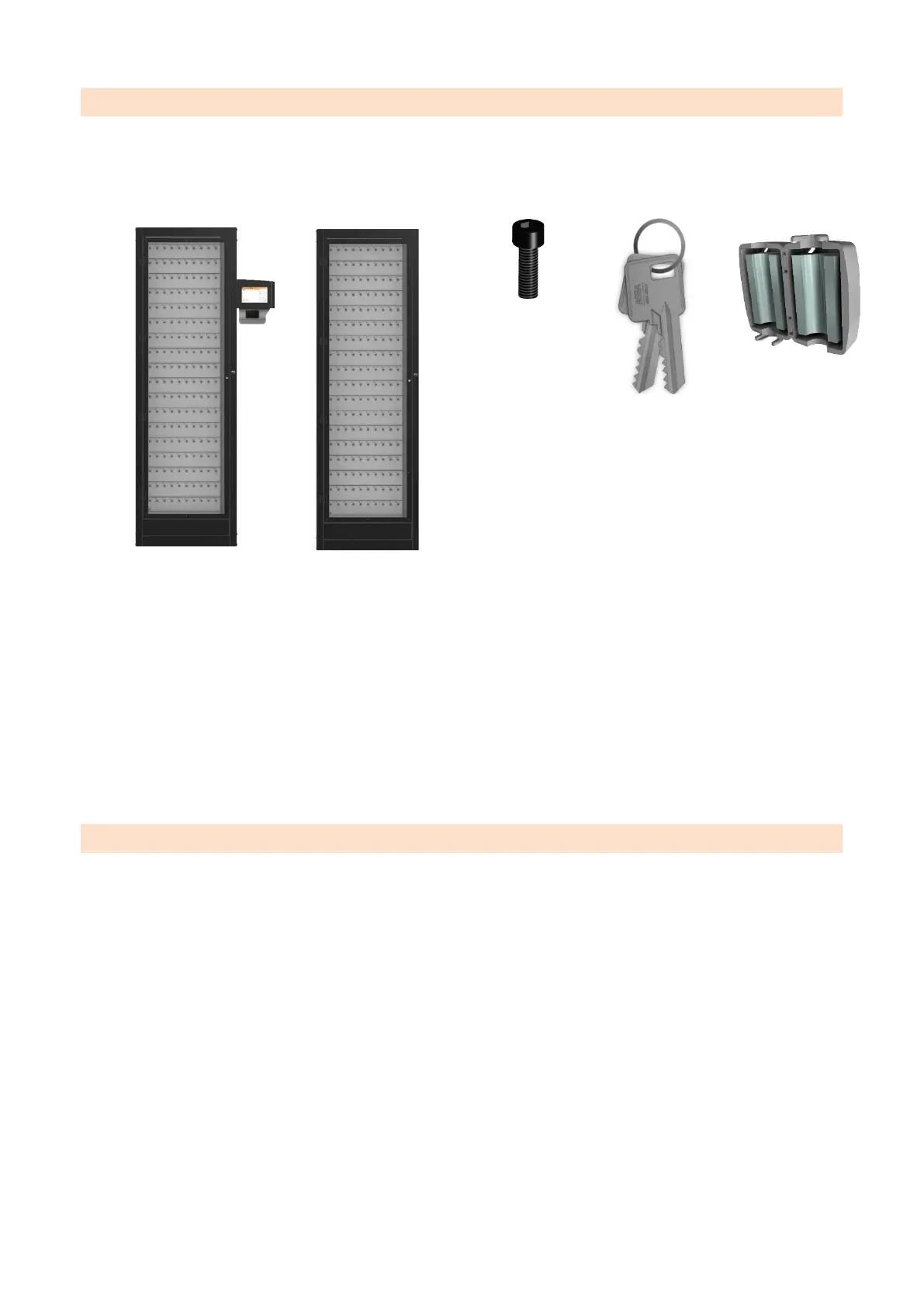

5.2 WHAT YOU SHOULD HAVE
Once you receive your Traka Touch system, please check you have the following…
If you are missing any of the above please contact Traka immediately.
In addition to the above, if you are adding an extension cabinet to an existing system you should also have the following
items:
CAN Interface PCB
CAN Interface PCB Chassis
Door Lock Extension Cable
Ribbon Cable(s) (Cabinet to Cabinet connection)
NOTE: Traka do not provide wall fixings for your system. Please ensure you source appropriate fixings for
the type of wall you are fixing to.
5.3 TOOLS AND MATERIALS REQUIRED FOR INSTALLATION
You will need to source the following tools and materials for the installation
Drill
Wall Fixings (appropriate for the type of wall you are fixing to)
Large Flat Headed Screwdriver
10mm Nut Spinner / Ratchet
7mm Nut spinner / Ratchet
Hammer
20mm Grommet/Cable Gland
20mm Conduit (if needed)
4mm Allen Key or T-bar
Step Ladder
a) Traka Touch L cabinet
& 1x Pod (Pod will not
be attached)
c) 4x M5 x 15mm
socket cap screws
f) 2x Master
Keys
extension(s) (if
applicable)
e) Ferrite Core
(if applicable)
