V2.4 03/08/18 TD0068 Page 20 of 38
This Document is uncontrolled when printed unless over stamped “CONTROLLED DOCUMENT”

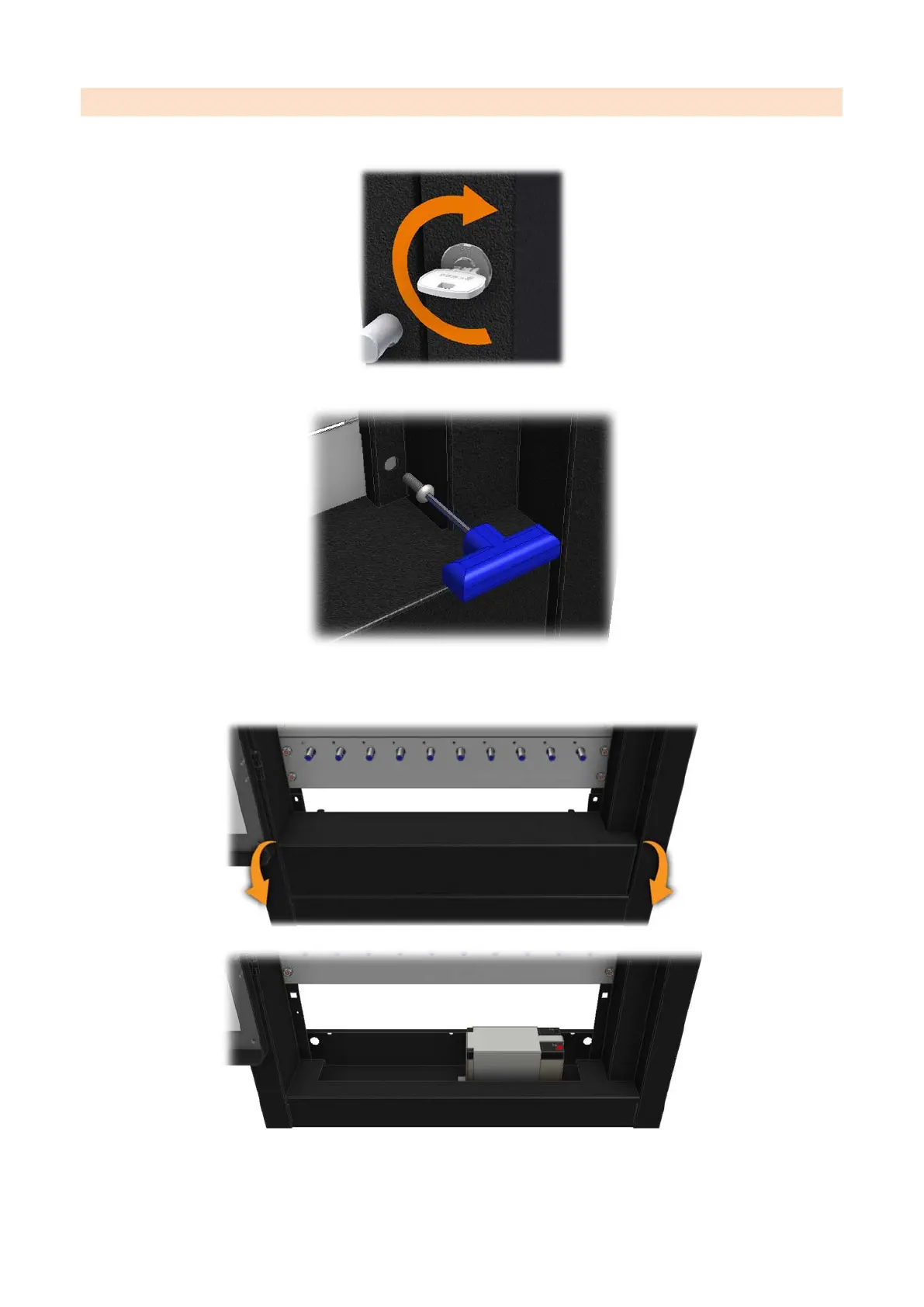

6.4 ACCESSING THE FIXING HOLES
1. Using one of the supplied master keys, manually open the cabinet door by turning the key clockwise.
2. Using a 4mm Allen Key or T-bar, unscrew the two M6 x 25mm socket screws to remove the cover panels.
3. The 1U blank fascia and strengthener at the bottom of the system will become loose and can be put to one side.
4. The bottom of the system has a large access panel that can be slotted upwards then lifted forward and removed.
