V2.4 03/08/18 TD0068 Page 19 of 38
This Document is uncontrolled when printed unless over stamped “CONTROLLED DOCUMENT”

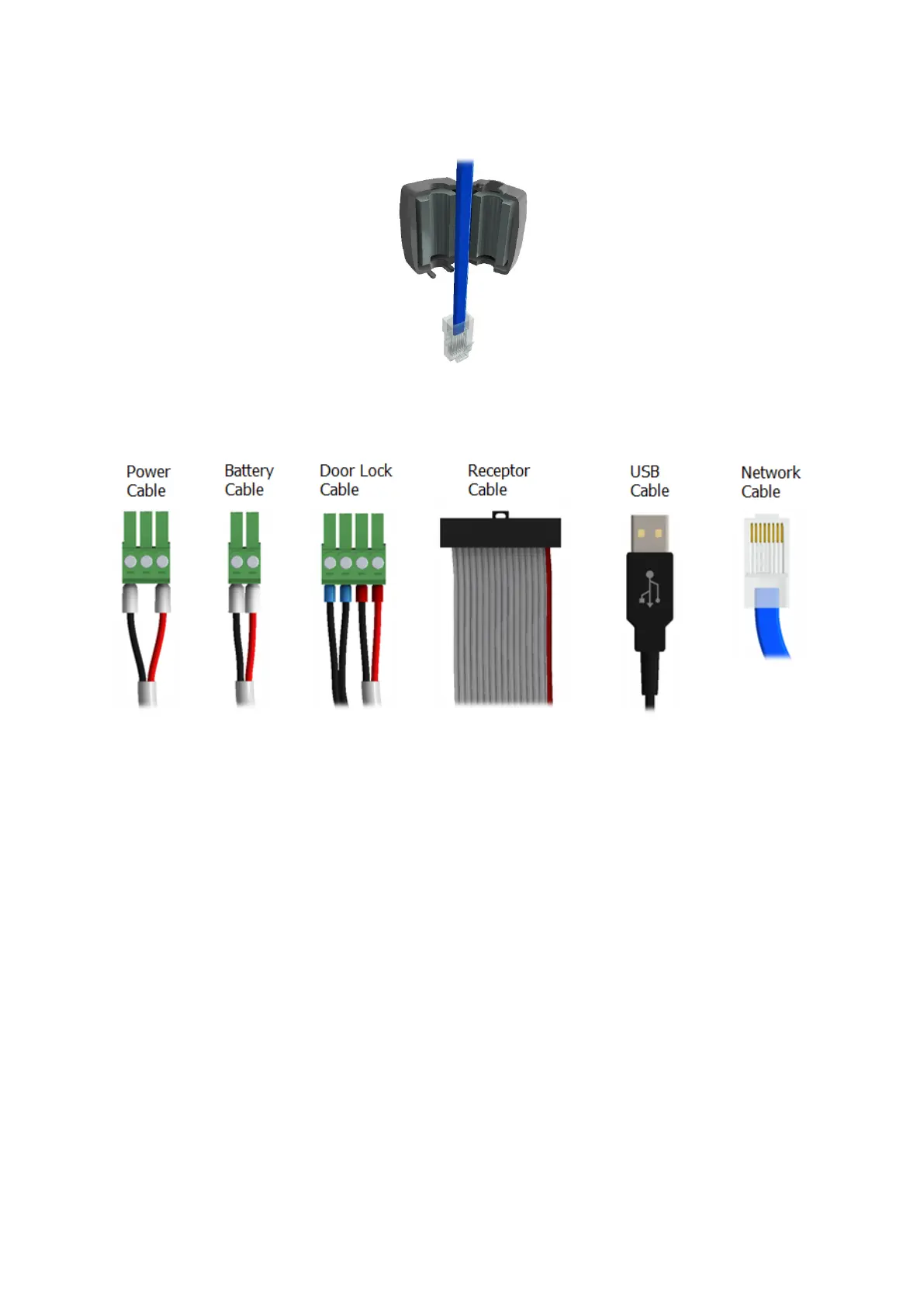

4. Attach the supplied ferrite core to the network cable.
5. Any cables to be connected between the cabinet and the Pod will be coiled up in the back of the cabinet. Before
standing the cabinet against the wall, the following cables must be passed through the cut-out in the cabinet and
into the Pod. These cables will be connected to the Control Panel later in the installation process.
NOTE: If your system has extension cabinets the Door Lock Cable will connect to the Interface PCB and
not the Control Pod.
To Next Page
