V5.0 03/08/18 TD0034 Page 11 of 30
This Document is uncontrolled when printed unless over stamped “CONTROLLED DOCUMENT”

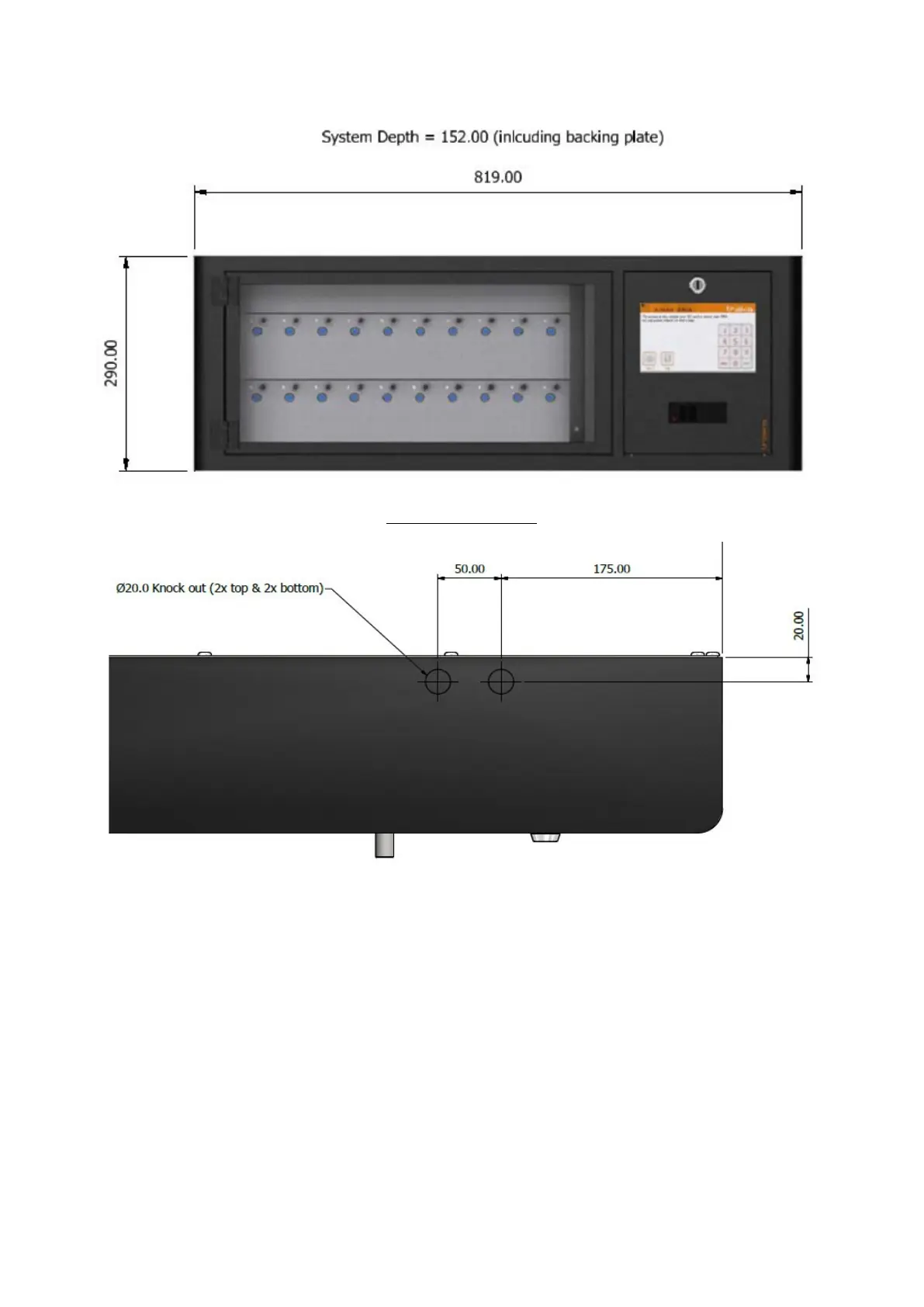

NOTE: All dimensions are in mm.
Knockout Dimensions
NOTE: Traka systems can be quite heavy and therefore need a strong wall to fix to. Fixings are not
included and so when selecting the appropriate fixings it is essential they are strong enough to retain the
Traka System and not pull out from the wall.
NOTE: The wall (and any wall covering) to which the Traka System is fixed must be made of low
flammability material (at least 94 UL-5V flammability class equivalent).
