5. INSTALLING THE SYSTEM
Before installing your Traka Touch system you must ensure the following…
The system is switched off and not yet connected to the mains.
The fused mains spur (if applicable) is safe and ready for use with the Traka Touch system.

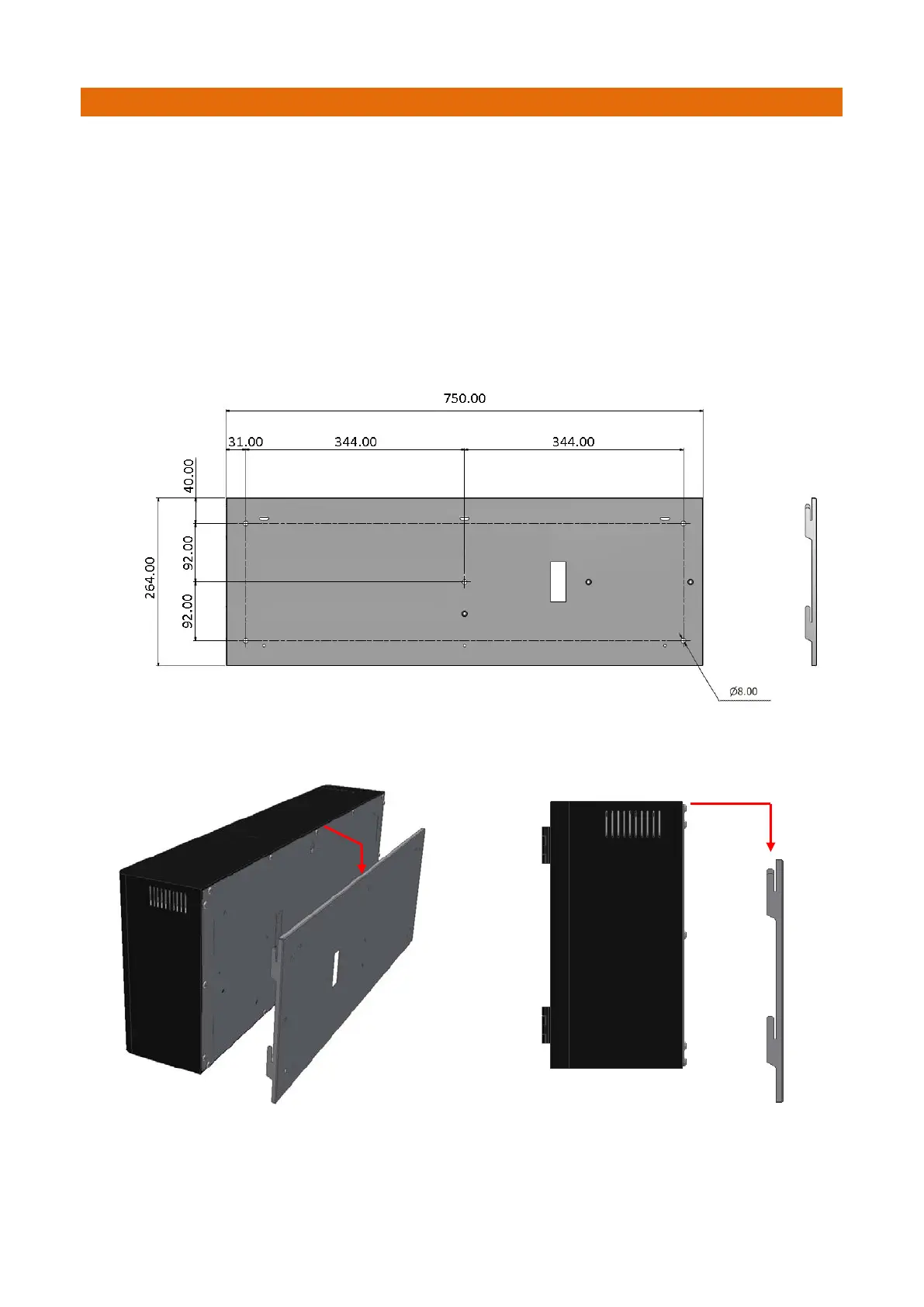

The Traka Touch M can be mounted directly to the wall, however, it is much easier for installation and maintenance
purposes that you mount the provided wall mounting plate to the desired location and secure the Traka Touch M to the
plate.
1. Unpack the system and mounting plate then carefully put them to one side.
2. Locate the desired position on the wall you wish the Touch system to go. It should be no further than 1 Meter
from the mains spur.
3. Hold the mounting plate against the wall, and whilst levelling with spirit level mark the wall through the fixing
points in the plate.
4. Drill the marked fixing points and secure the plate to the wall.
5. The Touch M system has slots in the back panel that align with the hooks at each corner of the mounting
plate. Lift the system and locate onto the mounting plate ensuring all four hooks are supporting the system.
