3. SYSTEM & IFOB DIAGRAM
3.1 SYSTEM DIAGRAM

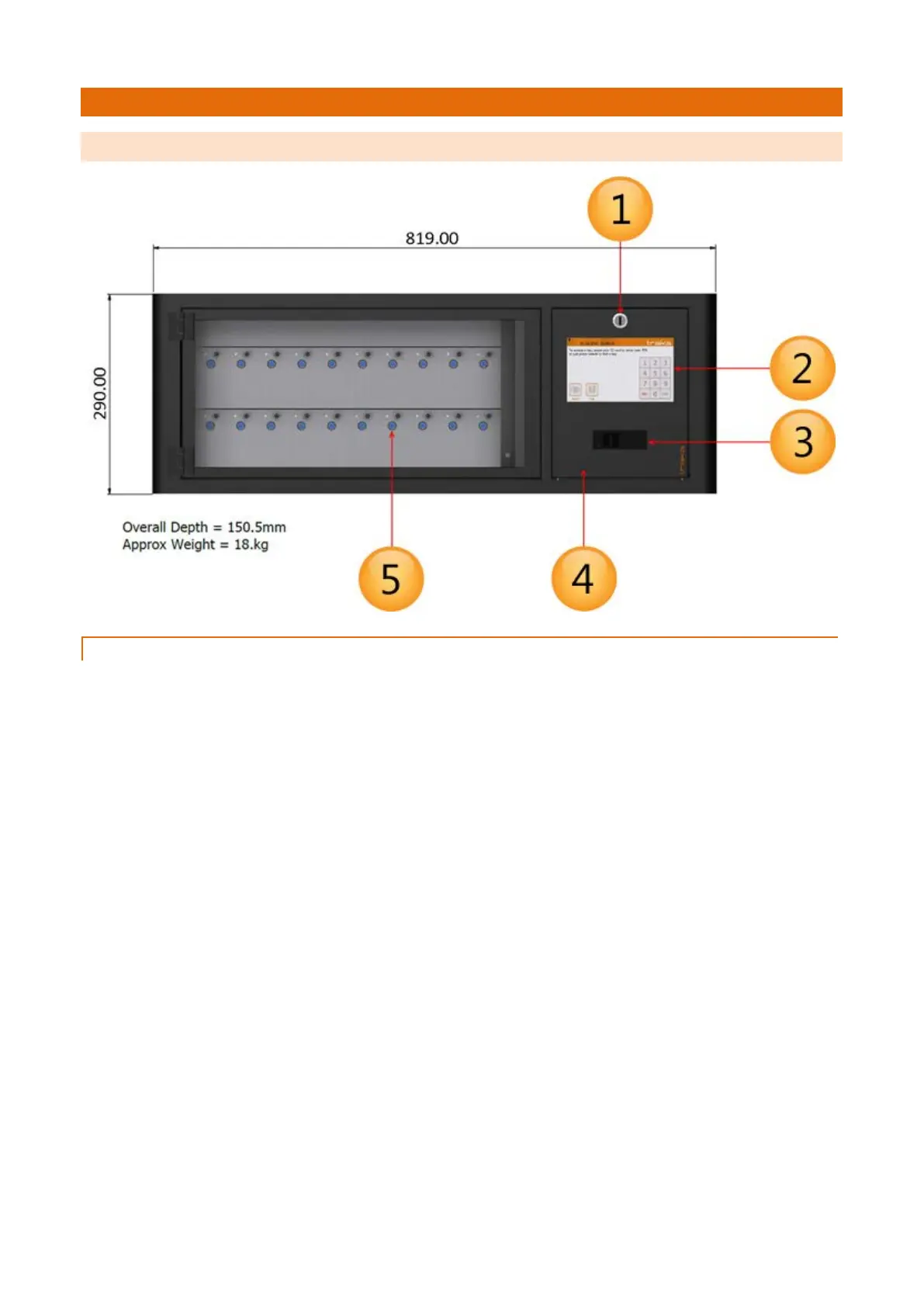

3.1.1 SYSTEM KEY
1. Cam Lock
2 keys are supplied with your Traka system. These are required for gaining access to the system electronics
during servicing and maintenance. We ask that you do not keep these keys in the system. In case of a
system failure, they will be required to gain access to the manual release door catch located behind the pod
allowing emergency access to the keys.
2. Touch Screen
The Touch sensitive LCD works as a user friendly interface for our embedded application. The numeric
keypad, alphabetic keyboard and receptor buttons are incorporated into this easy to use 7” LCD.
3. Card /Proximity Reader
Traka supports a wide array of access devices. The primary job of any access device is to identify the user
to the Traka system. Once the system knows who you are, it can grant or deny access to specific keys
accordingly.
4. Control Pod
Incorporates the touch screen, reader and the cam Lock providing access to the systems electronics.
5. Receptor Slot
The Receptor Slot holds the iFob in place.
