9.5 BACKUP BATTERY
9.5.1 BATTERY LOCATION
Traka provide a backup battery already connected with every Touch System supplied in the UK. If for any reason you
need to connect/disconnect the battery yourself please follow this section and then refer to the connection details below.

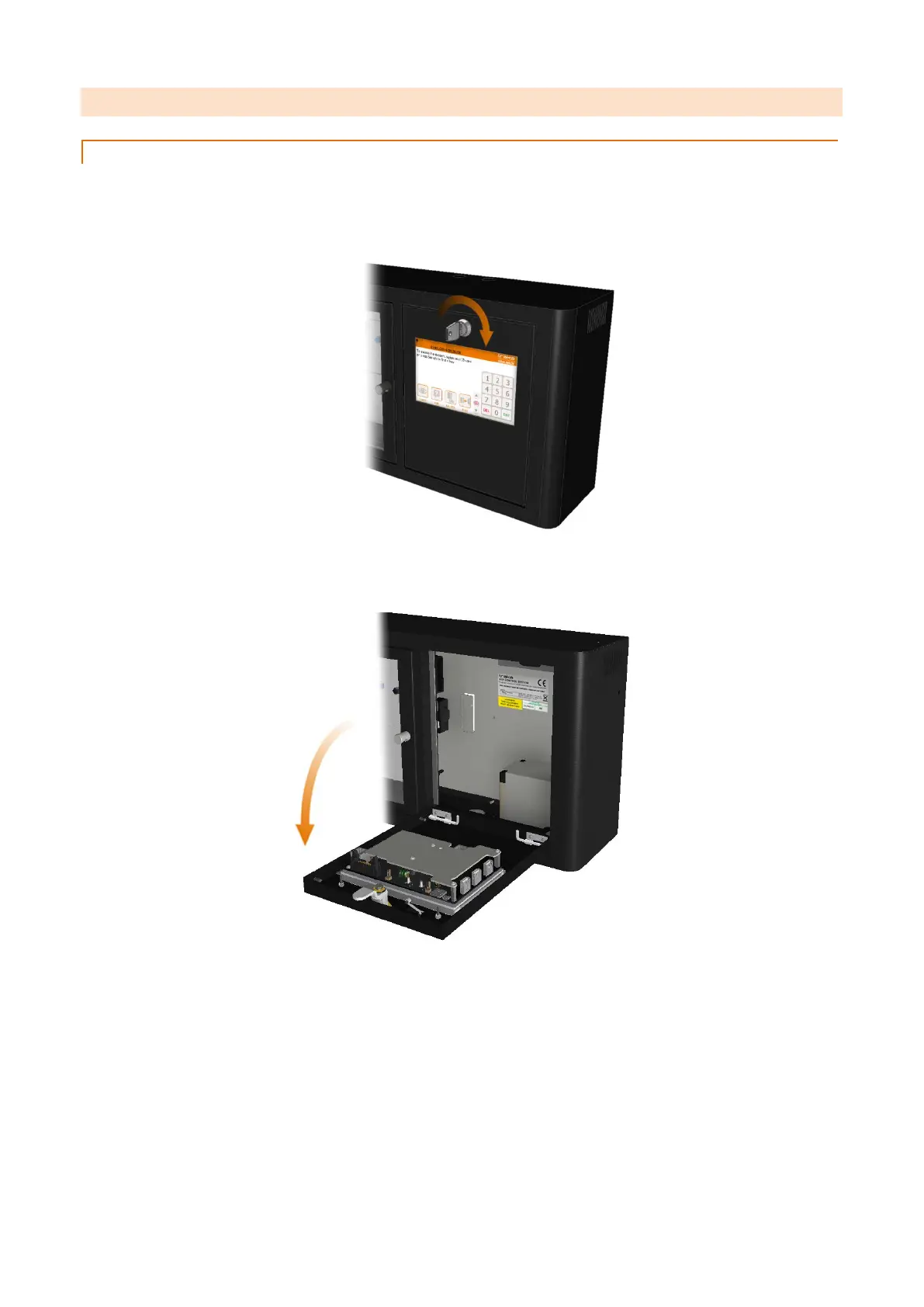

1. Insert the Master key into the CAM Lock on the Control Panel and turn the key 90° clockwise.
2. The Control Panel will now lean forward on the restraining cable.
3. You will see the battery sitting behind the drop down control panel. You will need a 7mm socket or equivalent
to remove the bracket.
