Assa Abloy TRAKA TOUCH M User Manual

V5.0 03/08/18 TD0034 Page 13 of 30
This Document is uncontrolled when printed unless over stamped “CONTROLLED DOCUMENT”

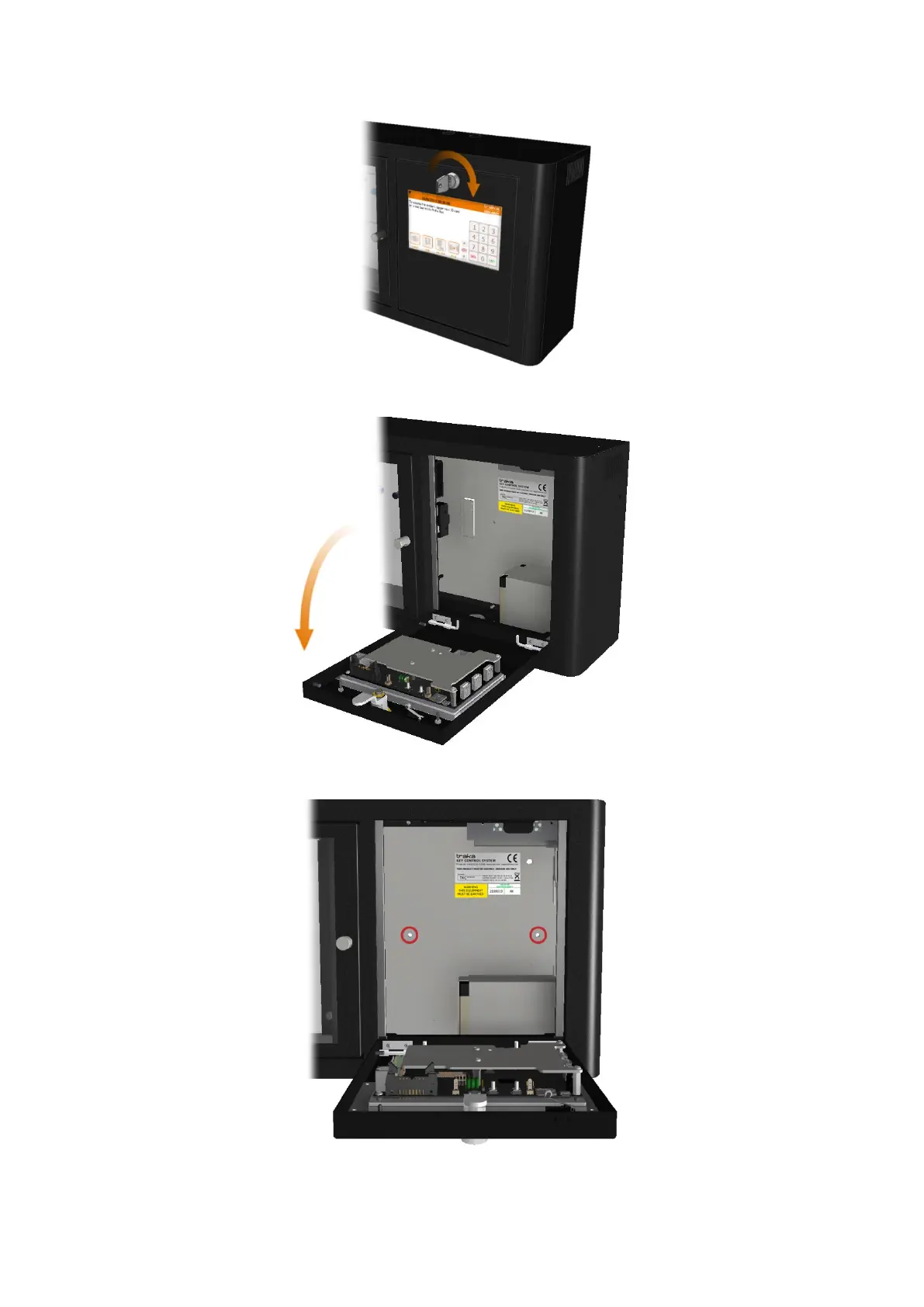

6. Using one of the Master keys, open the control pod by turning the key 90° clockwise.
7. The Control Panel will now lean forward at 90°.
8. You will see two fixing holes which will allow the system to be secured to the wall bracket.
9. Using the supplied M5x8mm fixings, secure the cabinet to the wall bracket via the two fixing holes.

Assa Abloy TRAKA TOUCH M Specifications

General

Brand	Assa Abloy
Model	TRAKA TOUCH M
Category	Network Hardware
Language	English
