V5.0 03/08/18 TD0034 Page 14 of 30
This Document is uncontrolled when printed unless over stamped “CONTROLLED DOCUMENT”

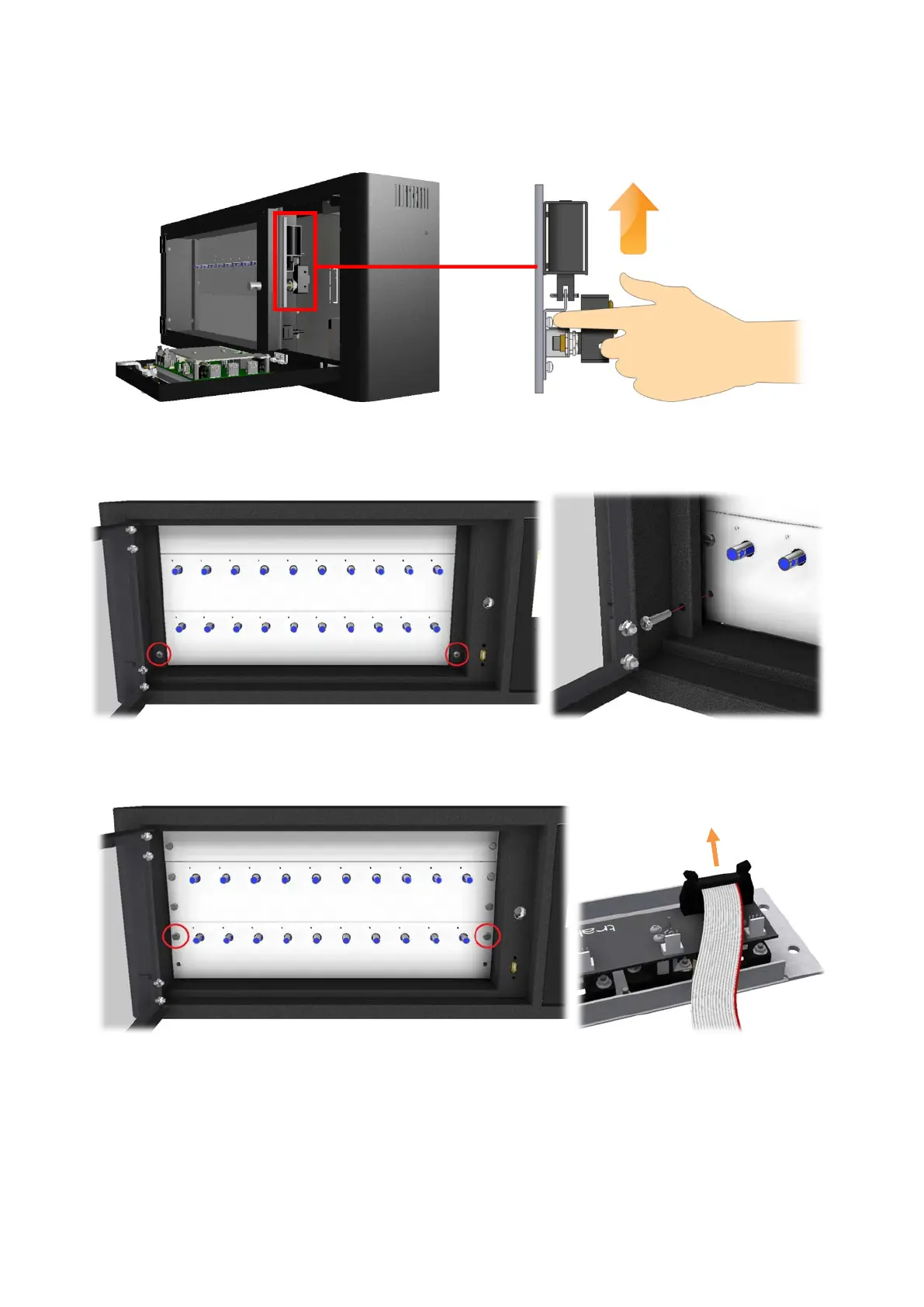

10. The remaining fixing point to secure the system to the mounting plate is located behind the bottom receptor
strip. Manually release the door to gain access to the receptor strips by lifting the catch on the lock
mechanism.
11. Remove the 2 cover panels by removing the hex screws.
12. Remove the bottom receptor strip by removing the 2 remaining screws. The ribbon cable can be disconnected
from the receptor PCB to enable the strip to be completely removed.
