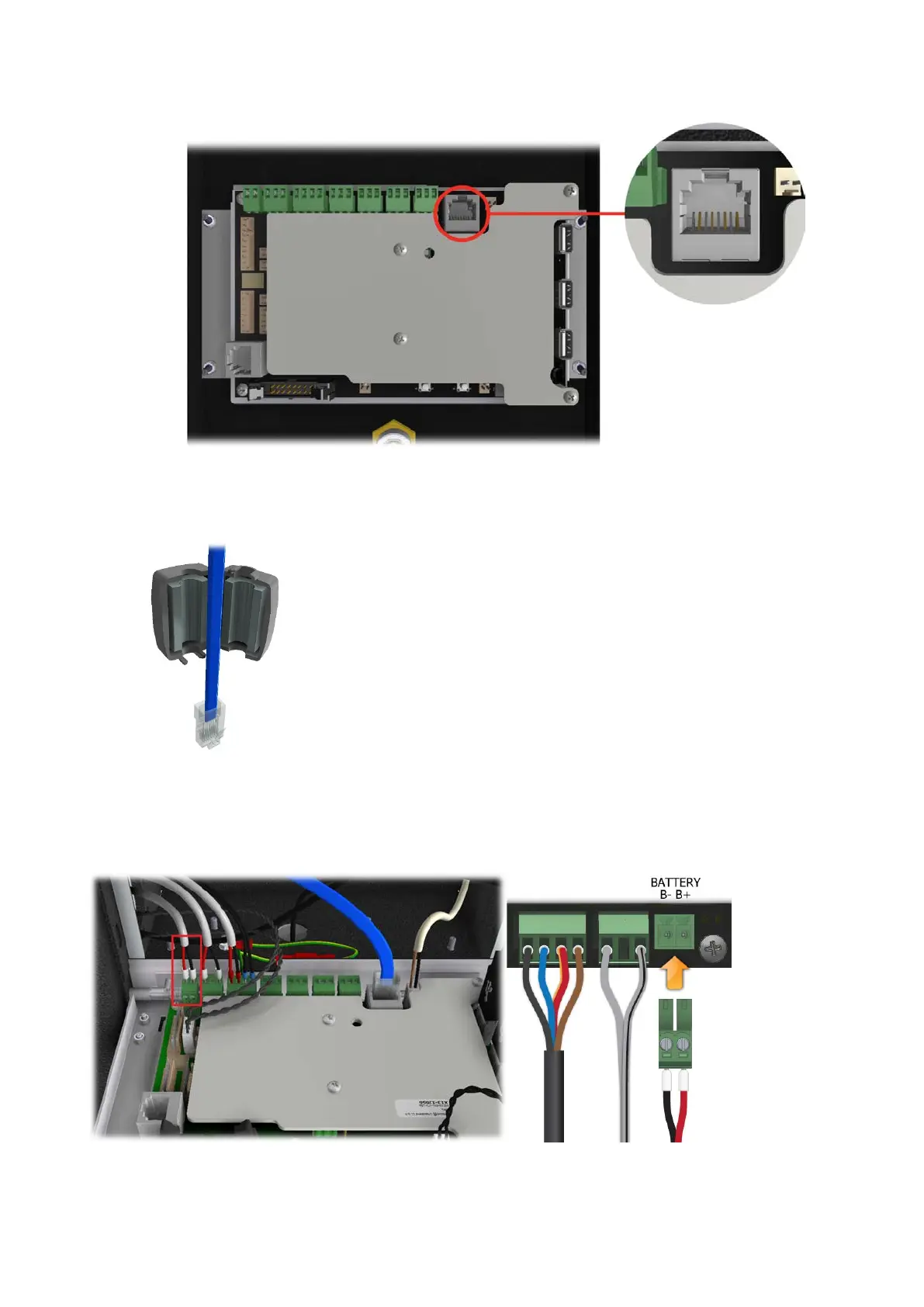

16. A network connection may also be required. Use the diagram below to locate the network port in the control
panel of the Traka Touch.
17. Feed the network cable out through one of the other 20mm knockouts in the cabinet’s outer shell.
18. Connect the ferrite core to the network cable.
19. The battery cable will be coiled up inside the control compartment. Plug the green connector into the location
shown in the image below.
NOTE: For more information on the backup battery including specification and connection details please
refer to the ‘Backup Battery’ section.
20. Leave the control panel open and refer to the ‘Connecting the Mains Power’ section below.
