Follow the process below to install the surge protection module.

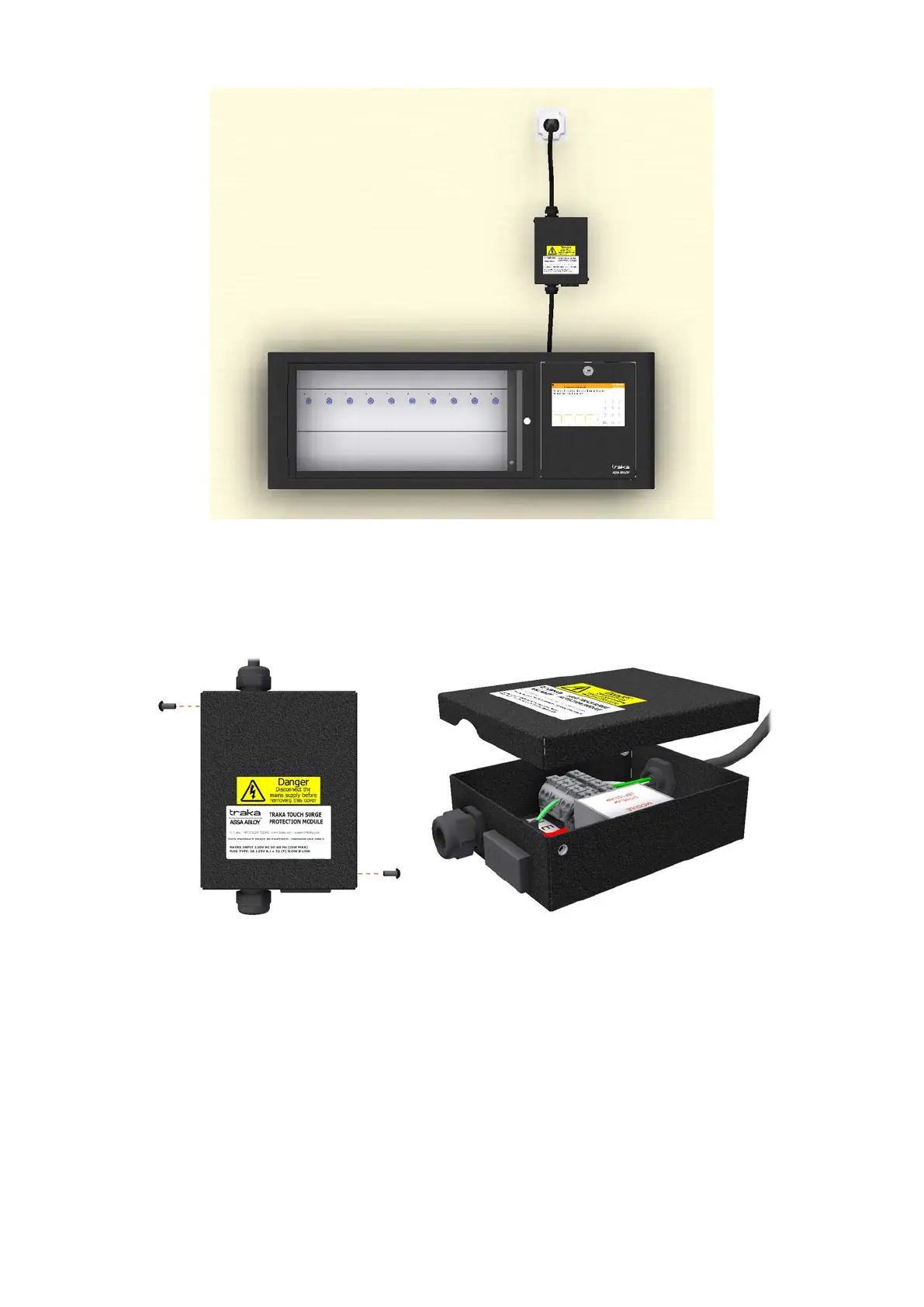

1. The cover on the surge protection module is secured with M4 Torx screws. Remove the screws using a T25 Torx
driver and remove the cover. There will be an earth lead connected to the cover that can also be disconnected.
NOTE: Ensure the module is not connected to the mains power outlet before removing the cover.
2. Fix the module to the wall in a suitable location using the 4 fixing points in the base.
