ASSEMBLAD INFRAGAS-196 User Manual

Assemblad Infragas-196 and Infragas-196 PC-Module * Operating manual
ASSEMBLAD S.r.l. - Costruzioni Elettroniche - Via Marzabotto, 4 - 50013 Campi Bisenzio - Firenze - Italy
Tel. +39-055-890485 - Fax +39-055-890496 - E-mail: info@assemblad.it - Web: www.assemblad.it
10
1.2.4 Rear Panel

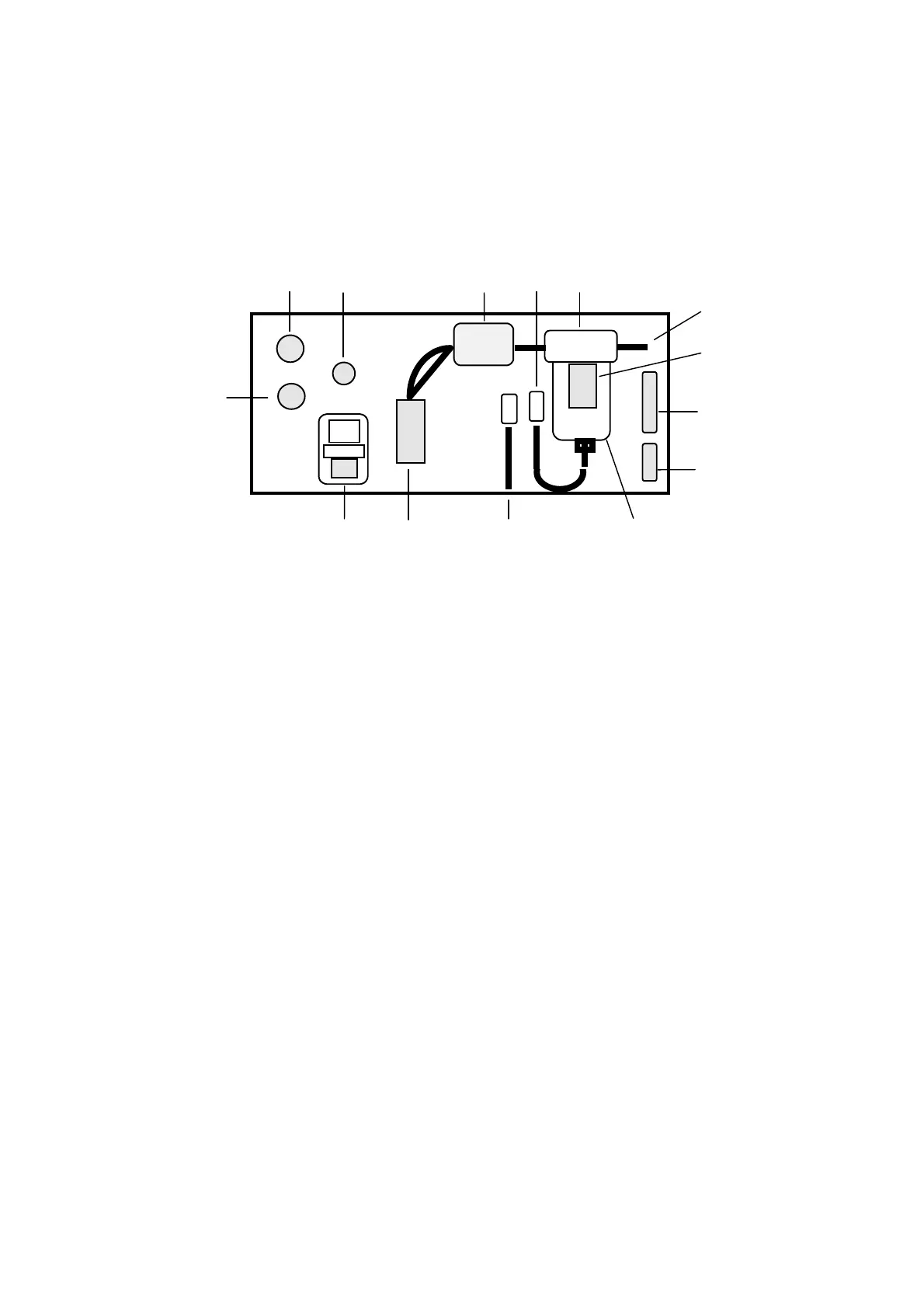

The rear panel of INFRAGAS-196 is shown in the picture below:
Rear panel of Infragas-196
1) Condensate filter with gas inlet junction and a connection to the drainage valve.
2) Input water drainage.
3) Paper filter.
4) Gas outlet.
5) Temperature probe connector.
6) RPM probe connector.
7) Power supply socket and switch with fuse holder.
8) Water sensor.
9) Output water drainage
10) Drainage filter cup.
11) Standard RS-232 serial interface connector.
12) Empty / Not used
13) Particles filter.
14) Gas inlet.
0 - I
5 4 3 2 1
6
7
8
9
10
14
13
12
11
