Assemblad Infragas-196 and Infragas-196 PC-Module * Operating manual
ASSEMBLAD S.r.l. - Costruzioni Elettroniche - Via Marzabotto, 4 - 50013 Campi Bisenzio - Firenze - Italy
Tel. +39-055-890485 - Fax +39-055-890496 - E-mail: info@assemblad.it - Web: www.assemblad.it
8
1.2.3 Keyboard

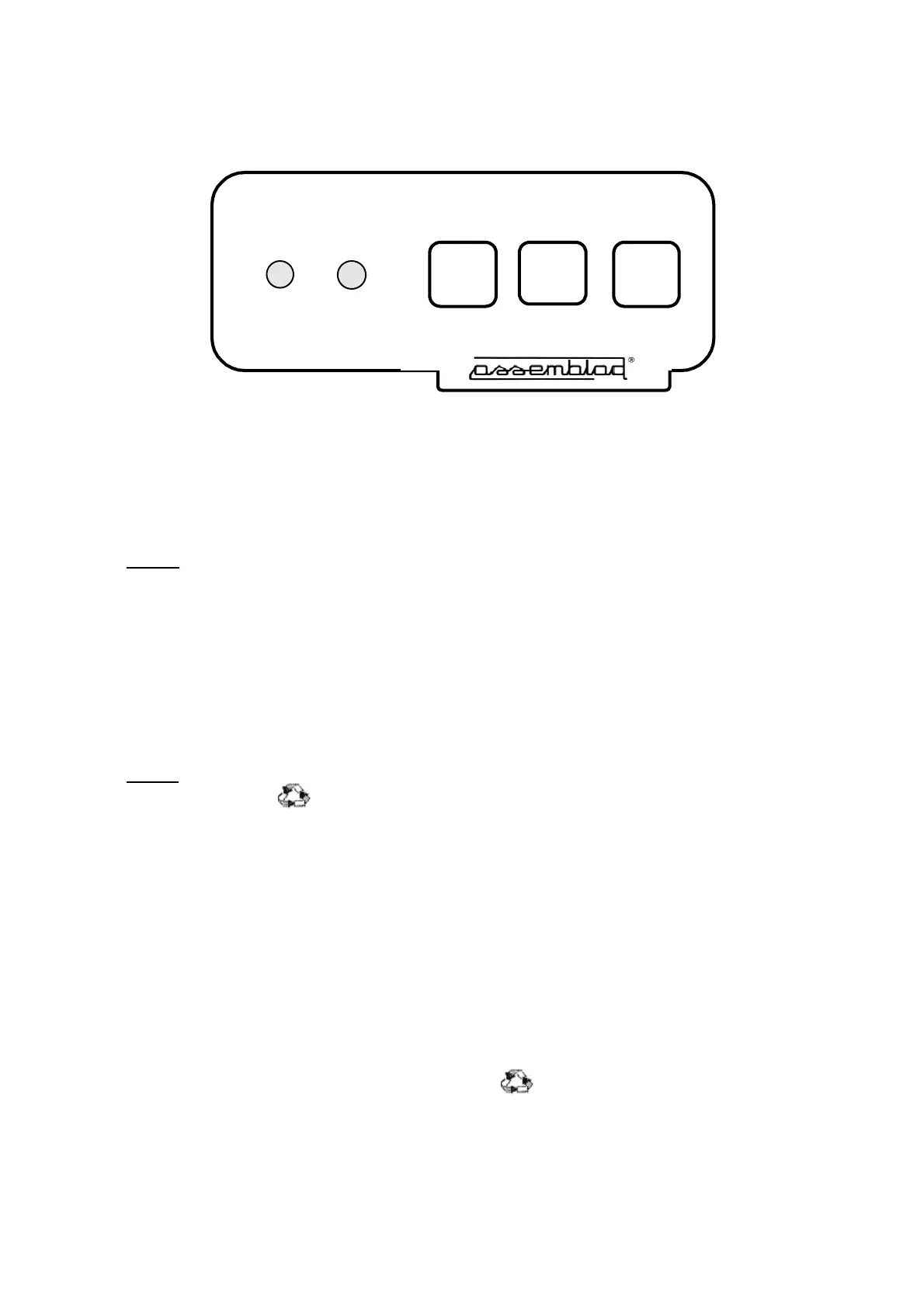

Infragas 196 - Keyboard built-in front panel
Infragas 196 keyboard is composed of 3 keys each corresponding to a specific function,
and 2 warning lights.
1) MEAS (MEASURE) key : causes the instrument to start a new measurement by
initially performing a self-calibration stage. At the beginning the instrument switches
its internal valve to suck in ambient air. This stage requires approx. 30 sec. during
which the message "Cal" appears on CO and CO2 displays and data on gas displays
(including HC and O2) have no meaning. During this stage a new push of MEAS key
causes a termination of measurement sequence. At the end of self-calibration stage
the message "Cal" disappears and instrument automatically switches to suck in gases
from the hose, thus keeping the suction pump on until the MEAS key has been
pressed or after about 10 minutes from this operation.
2) FUNC key: allows selection of measurement to be displayed on FUNCTION
display [ FUNC + ]. Available measurements are:
- Oxygen
- Lambda value for many motor fuel ("L" on the rightmost digit)
- CO Correct
- Engine Oil Temperature
- Ambient Temperature the value displayed show the inside temperature
- Ambient Pressure in mbar
- RPM
- NO
- NOx
Each push of the FUNC key causes a switching of selection from top to bottom as
indicated by the corresponding symbol on display .
PUMP ON
M
EAS FUNC
P1
