Associated Electrics RC10 B4.2 - Assembly Instructions; Steering Assembly; Front End Assembly

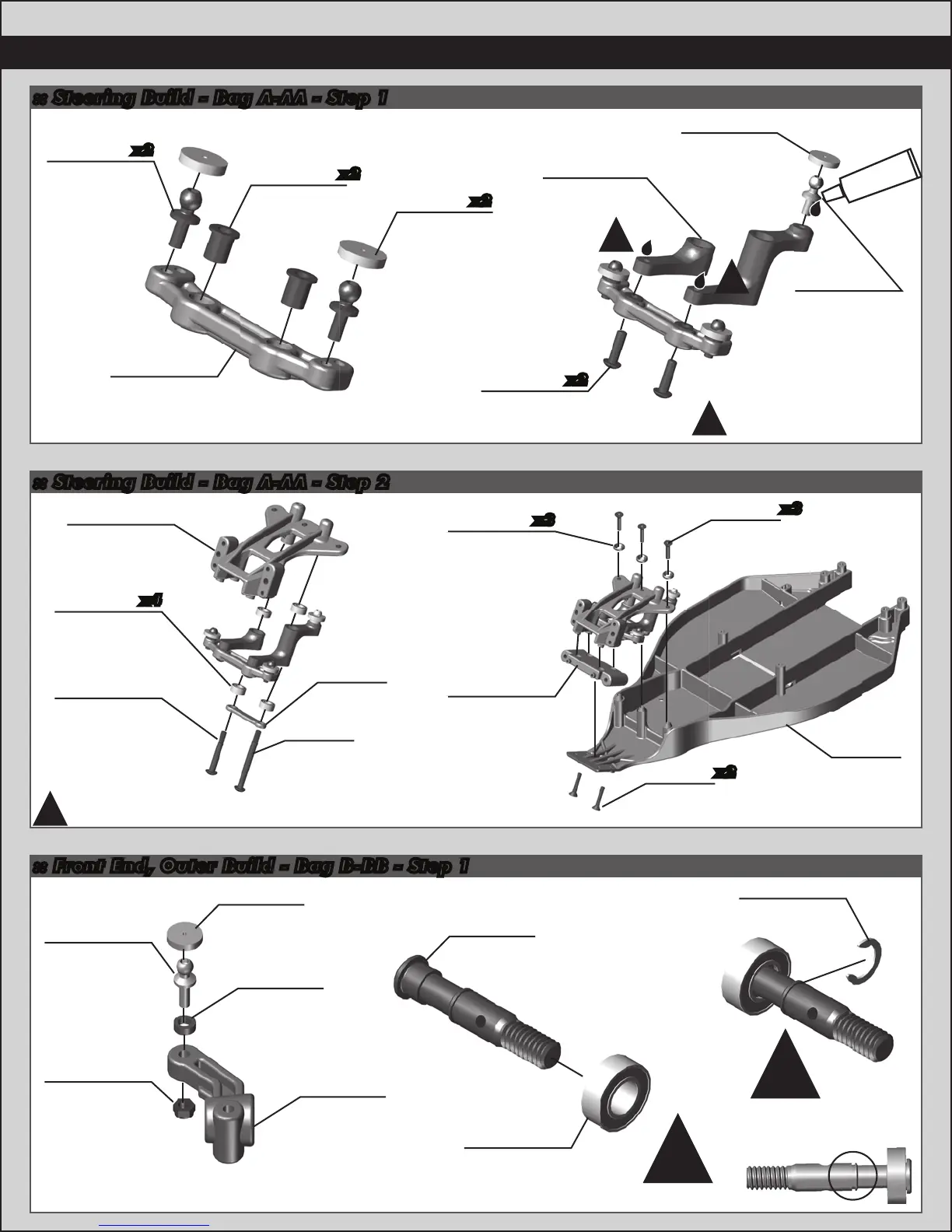

:: Steering Build - Bag A-AA - Step 2
:: Front End, Outer Build - Bag B-BB - Step 1
4
:: Steering Build - Bag A-AA - Step 1
Install the C Clip
into the groove
shown below.
Do not overtighten steering bolts. Make sure
there is free movement in the steering rack.
!
!
Build 2 (1 left, 1 right) Build 2!
!
6922
4-40x1/2
fhcs
6915
4-40x5/8
fhcs
9637
B4
chassis
+8mm
9659
Steering
brace
9640
Steering
bolt
(left)
6272
Dust cover
foam
9659
Block carrier
bushing
x2
x2
x2
x2
3981
Ballstud, .20
black, short
6276
Ballstud, .20
silver, short
6917
4-40x3/8
bhcs
6272
Dust cover
foam
9679
FT Aluminum
Bellcrank Set
3971
Steering rack
bearing
9566
Top plate
89229
Blue
countersunk
washer
9563
Front
bulkhead
9640
Steering
bolt
(right)
9659
Steering
rack
x4
x3
x3
x2
Be careful to not get
thread lock on steering
rack bushings!
!
!
!
6272
Dust cover
foam
7496
B4 front
axle, hex
31286
FT ballstud
washer,
aluminum
(2mm)
9880
Steering
block, hex
6277
Ballstud, .30
silver, long
3977
3/16x3/8
bearing
9882
C-clip, 3/16
4449
4-40x3/16
aluminum
locknut
#1596
thread lock
