Associated Electrics RC10 B4.2 - Rear End Assembly

9

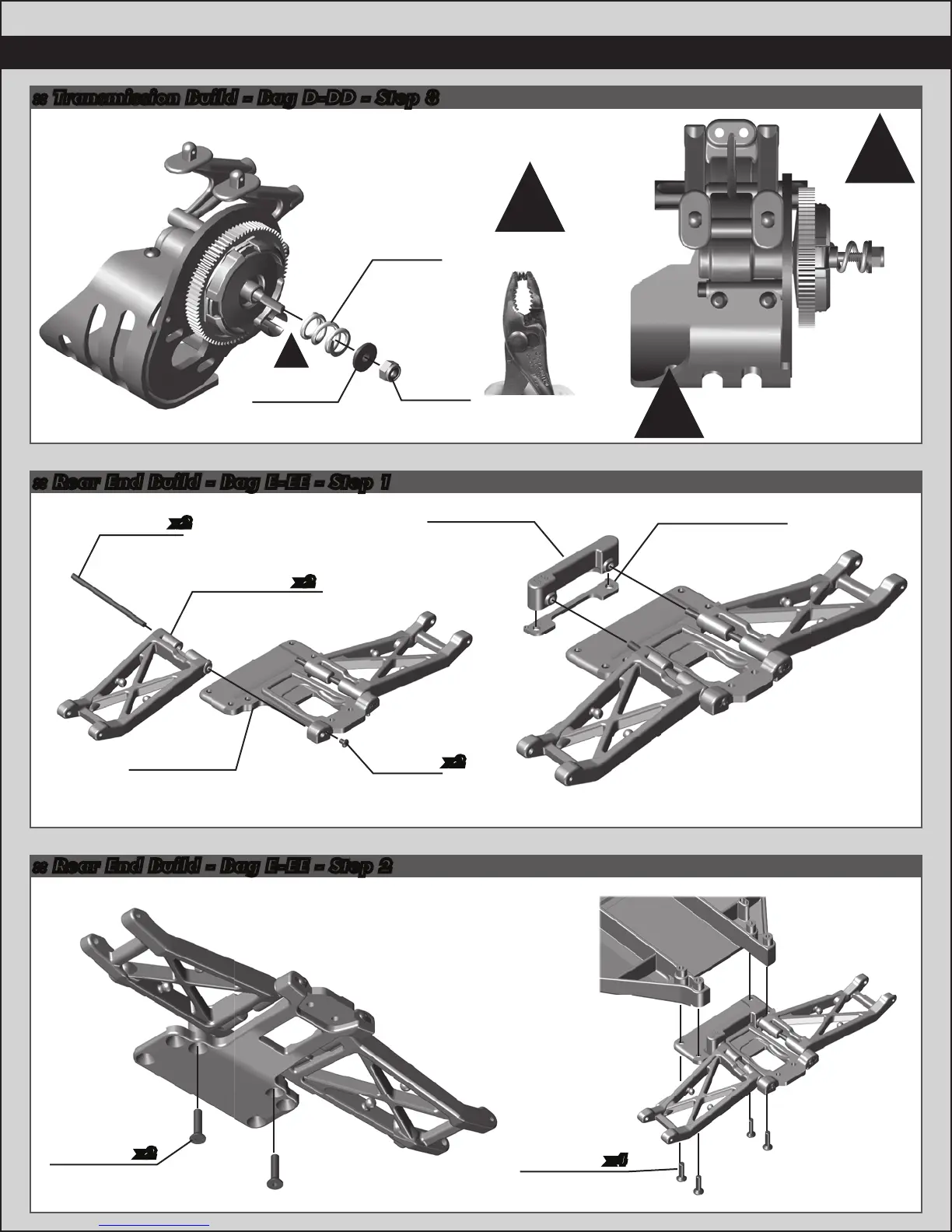

:: Transmission Build - Bag D-DD - Step 8
:: Rear End Build - Bag E-EE - Step 1
:: Rear End Build - Bag E-EE - Step 2
Set nut
flush with
top shaft.
See page 18 for gear
mesh, and slipper clutch
setting instructions!
!
!
!
7487
Anti-squat shim
(2 degrees)
9621
Hinge pin,
rear inner
9582
Rear B4 a-arms
(1 left, 1 right)
9645
2-56x1/8
bhcs
6629
5-40
locknut
9739
Slipper
spring
9818
Rear chassis
plate
7487
Rear arm
mount
(3.0 degree)
7486
V2 slipper
washer
x2
x2
x2
Compress
spring first.
!
9269
5-40x1/2
fhcs
9269
5-40x1/2
fhcs
x2
x4
