Associated Electrics RC10GT - BAG E: Differential Setup; Step 1: Set Up Diff Gear

7771
PULL START
Step 2
Step 1
s t e p 1
ATTACH MOUNTS
TEAM/FT: Attach the #7770 or 7771 engine
mount to the chassis with four #7773 screws.
RTR:
Attach the #7771 engine mount to the
chassis with four #7773 screws.
ALL:
Do not fully tighten down. You will tighten
them down when you set your gear mesh.
TEAM/FT:
Attach the #7772 transmission
mount/ brace to the chassis with two #6292
screws.
7770 (non pull start)
7771 (pull start)
1:1
7773, qty 4
6-32 x 3/8 screw
1:1
6292, qty 2
4-40 x 3/8 screw
B A G D
REMOVE THESE
PARTS FOR:
Step 1
T O O L S U S E D
1/16", 5/64"
7770, qty 1
non pull start engine
mount
TEAM/FT ONLY
7772, qty 1
transmission mount
7773
7773
7773
7773
6292
6292
7772
s t e p 1
1:1
6581, qty 12
large diff ball
6588, qty 1
black grease
B A G E
REMOVE THESE
PARTS FOR:
Steps 1-3
T O O L S U S E D
5/64"
7
7664, qty 1
2.60:1 diff gear
1:1
TEAM/FT 6589, qty 1
5/32 x 5/16 ball bearing
unflanged
6582, qty 1
diff spring
6575, qty 1
T-nut
Step 3
1:1
6574, qty 6
small diff ball
6575, qty 1
bolt cover
6575, qty 1
diff bolt
1:1
6573, qty 2
washer
1:1
6591, qty 1
Stealth lube
7667, qty 1
right outdrive hub

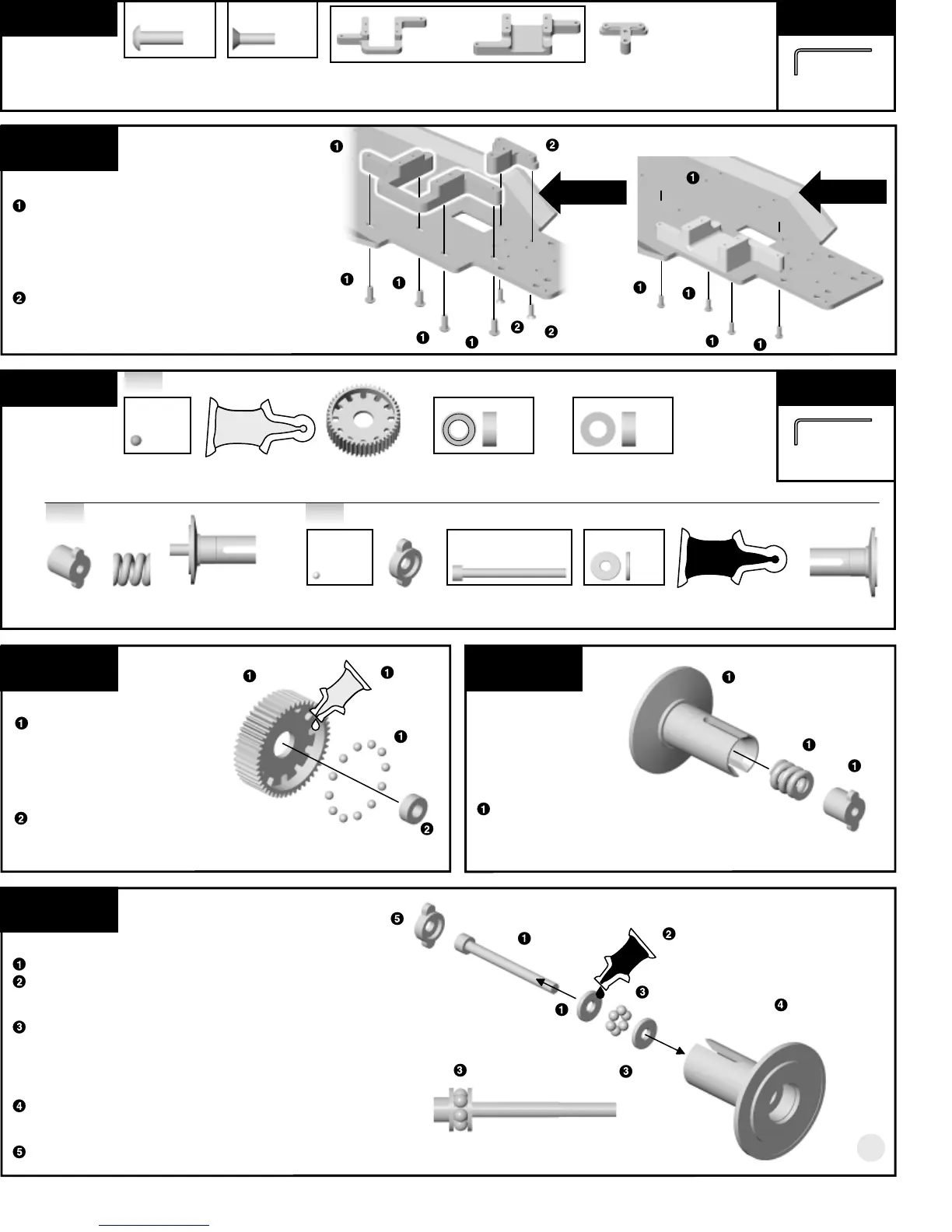

SET UP DIFF GEAR
Add a generous amount of
#6591 diff lube to the #7664
differential gear holes and
push the twelve large #6581
diff balls into the holes. Then
push back in the lube that
came out.
Insert one #6589 bearing or
#6597 bushing into the gear.
s t e p 2
SET UP LEFT HUB
Push the #6582 spring and
#6575 T-nut into the #7668 left
outdrive.
s t e p 3
SET UP RIGHT HUB
Slide one #6573 washer onto the #6575 bolt.
Apply a generous amount of #6588 black grease to
the washer on the side facing away from the bolt
head.
Place six #6574 balls into grease against the #6575
bolt and washer. Add the other #6575 washer. The
grease will hold the balls in place during assembly,
sandwiched between the washers. See figure for
installed view.
Slide the thrust assembly into the #7667 right
outdirve hub, being careful not to lose any of the
balls.
Insert the #6575 bolt cover into the #7667 outdrive.
6591
Stealth lube
7664
6581
TEAM/FT 6589
RTR/TEAM BUILT 6597
6582
6575
7668
left outdrive
6573
6575
6588
black grease
6574
7667
right outdrive
6573
6575
7668, qty 1
left outdrive hub
7773
7773
7773
7773
7771, qty 1
pull start engine
mount
1:1
RTR/TEAM BUILT 6597, qty 1
5/32 x 5/16 bushing
unflanged
O R
7771
PULL START
R T R
T E A M / F T
