Associated Electrics RC8B3.2e - Page 17

17

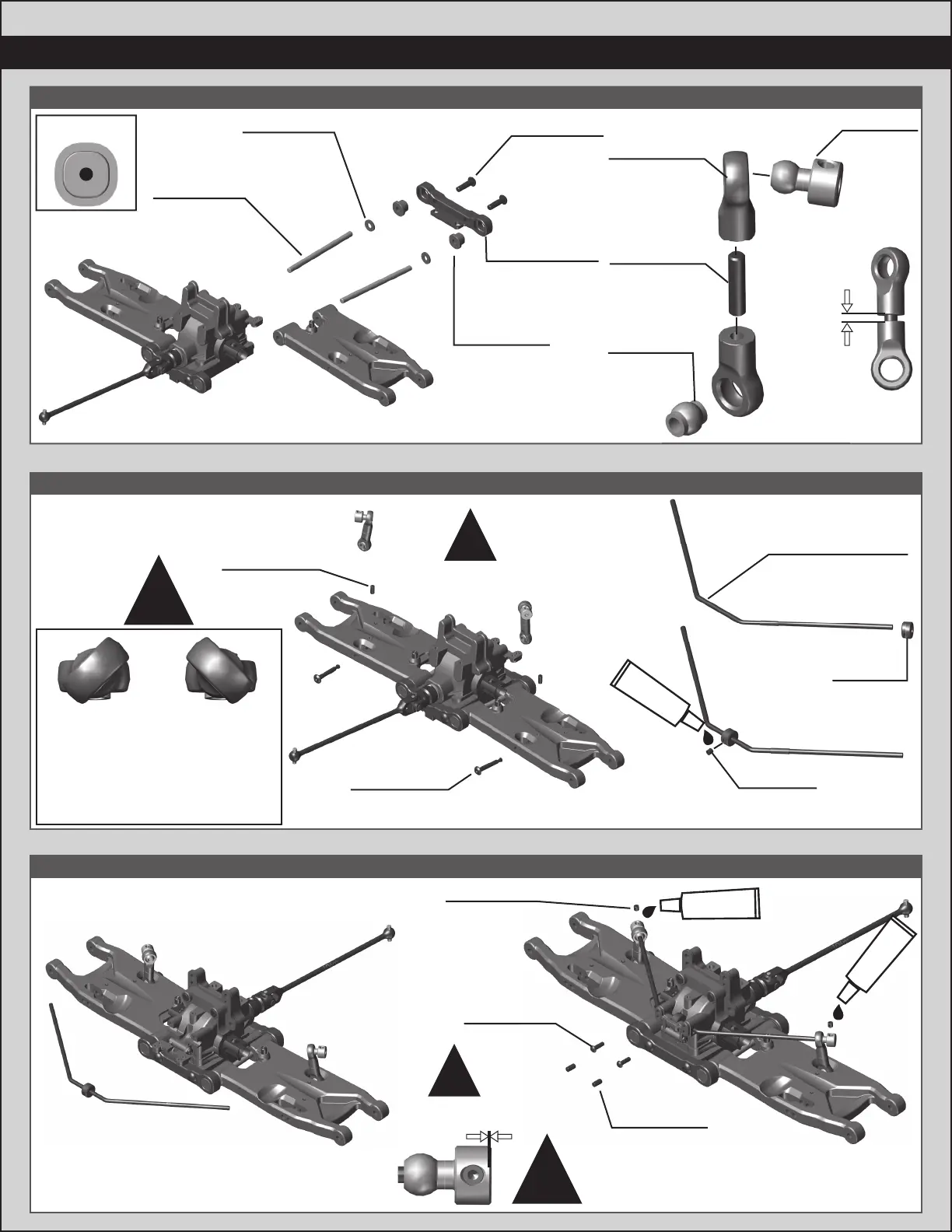

:: :: Rear End Build - Bag 7.1, 7.2, 7.3 - Step 5Rear End Build - Bag 7.1, 7.2, 7.3 - Step 5
:: :: Rear End Build - Bag 7.1, 7.2, 7.3 - Step 6Rear End Build - Bag 7.1, 7.2, 7.3 - Step 6
:: :: Rear End Build - Bag 7.1, 7.2, 7.3 - Step 4Rear End Build - Bag 7.1, 7.2, 7.3 - Step 4
81060
Hinge
Pin
81446
Suspension
Arm Shim
x2x2
Kit Setup:
25225
3x3mm
Set Screw
31521
2.5x8mm
BHCS
x2x2
x2x2
81257
3x6mm
Set Screw
x2x2
Tighten 3x6mm set screws just enough to
still allow the anti-roll bar to move freely.
!
#1596
thread lock
#1596
thread lock
Center the anti-roll
bar collet on the anti-
roll bar, then tighten
the 3x3mm set
screw.
Rear Anti-Roll
Bar Gap: 0mm
!
!
#1596
thread lock
25225
3x3mm
Set Screw
81150
Anti-Roll
Bar
Collet
81140
(Rear) Anti-Roll
Bar, 2.7mm
81150
Anti-Roll
Bar Pivot
81150
Anti-Roll
Bar Rod
End
81150
Rod End
Ball
81258
3x12mm
Set Screw
x2x2
0mm
Left Side Right Side
Anti-Roll Bar Pivots:
Offset the anti-roll bar
rod ends
(approximately 45 degrees).
!
81260
4x14mm
BHCS
81455
Arm Mount,
HRC, Narrow
(D)
x2x2
81050
Arm Mount
Insert,
Center
x2x2
81197
Shock
Pin
81257
3x6mm
Set Screw
x2x2
x2x2
(not included)
(not included)
