Astralpool BPM600A - Clearances for Airflow and Access; Electrical Connection Guidelines

Inst253 Astral Heat Pumps V07.13
16
CLEARANCES
The heater must be installed at least 500 mm from any obstruction to airflow at the rear and sides.
There must be at least 1000mm clearance above the heater.
A minimum of 1000mm clearance should be provided at the front of the heater to permit discharge air
flow.
Heater must be installed on a solid, level base.

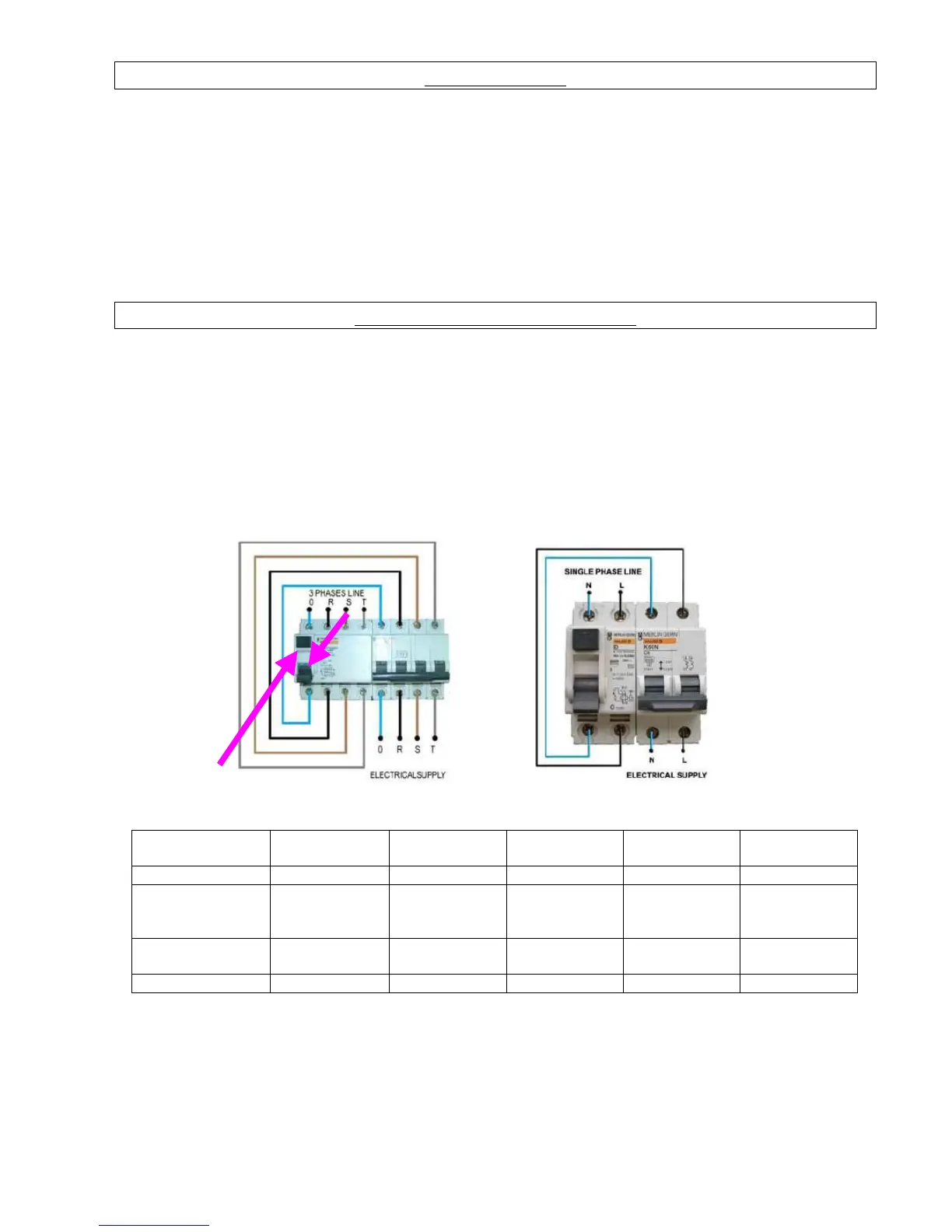

ELECTRICAL CONNECTION
The heater must be installed by a licensed electrician. It is recommended all pool or spa equipment
connected to mains power should be protected by an RCD circuit breaker.
Refer to heater data plate for specifications of operating voltage and current.
This appliance must be installed in accordance with local regulations and the National Wiring Rules.
A multi-pole isolating switch must be installed that operates in all live conductors so that it isolates the
entire equipment from the supply.
ELECTRICAL
DATA
BPM400
BPM600
BPM700
BPM800
BPT900
Voltage(V)
240II
240II
240II
240II
415III
Section(mm
2
)
PURIFICATION
PUMP
1,5
1,5
1,5
1,5
1,5
Section(mm
2
)
POWER
2,5
2,5
4
4
2,5
N
o
. of wires
1+N+T
1+N+T
1+N+T
1+N+T
3+N+T
Compressor delay
