Page 10
OPERATING HINTS
A. Do not bend envelopes when setting Side Guides. Front
and Rear Guides must be snug against envelopes.
B. Form envelopes as required to maintain flatness to suction
cups to improve feeding consistency.
C. Be sure bottom envelope (in a stack of envelopes or tag
stock), rests on Sheet Separators.
D. Front Side Guides contain adjustable sheet separator clips.
Clips project 3/32" (2.4 mm) beyond face of Guides.
Adjustment is rarely required.
1. Misfeeding may occur if clips extend too far under
envelopes. First increase vacuum and test run; then, if

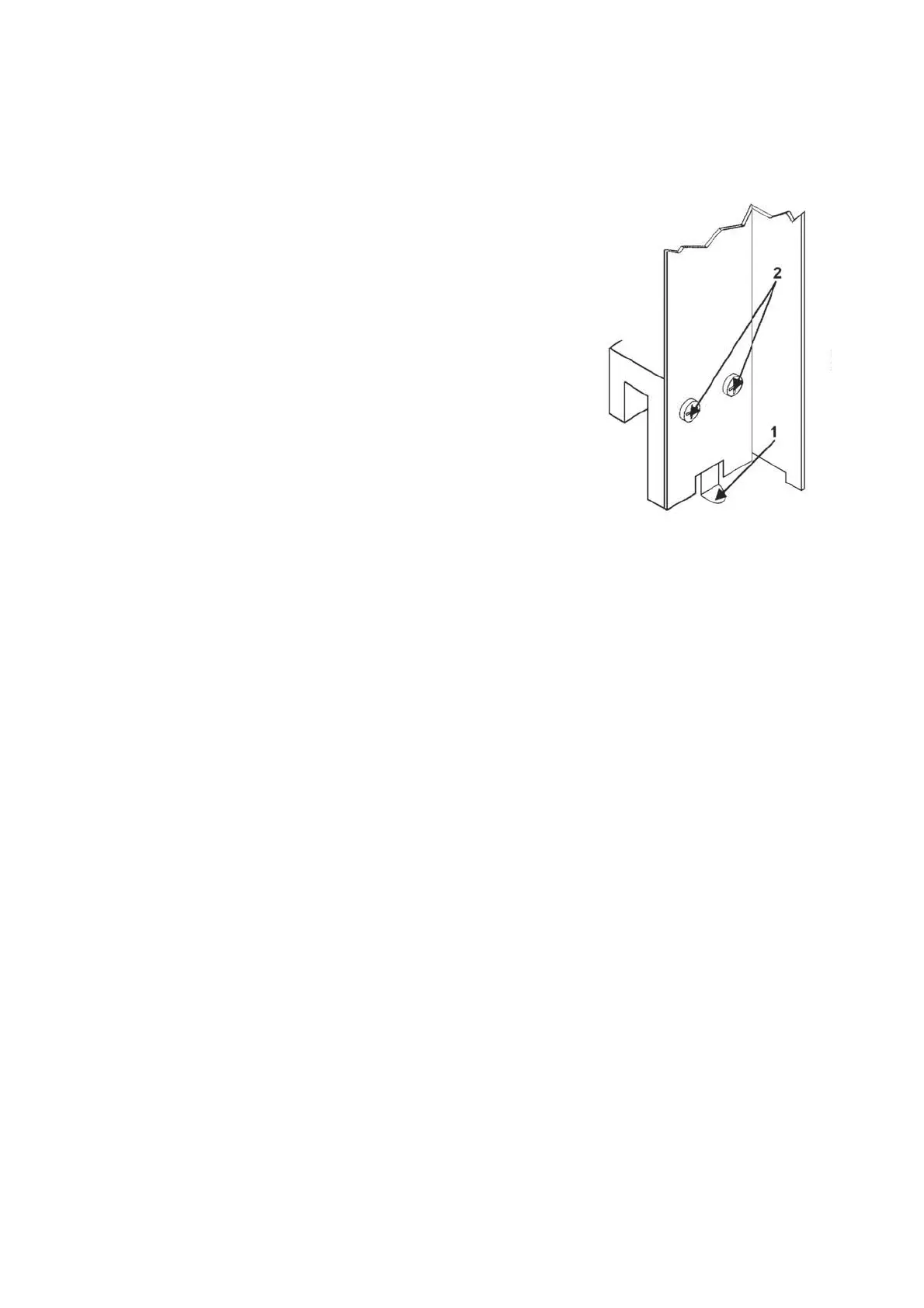

required, move clip [#1, Fig. 12] to front using set
screw behind them.
2. Double feeding may occur if clips are not under
envelopes far enough. First decrease vacuum and test run;
then, if required, move clips to front.
Vertical position of clips is also adjustable. Loosen two screws [#2, Fig. 12] and position
bottom of clip flush with bottom of Guide.
