Page 7
OPERATING INSTRUCTIONS
1. Adjust Envelope Feeder Stand to height of Press Front Feed Plate.
2. Hook Front Feed Plate on Envelope Feeder over bar on Press' Feeder. Tighten clamp
screw assembly securely.
3. Plug Pulse Generator into connector
provided on Envelope Feeder.
Plug Pump into receptacle on
Envelope Feeder.
4. Plug Envelope Feeder into
wall receptacle.

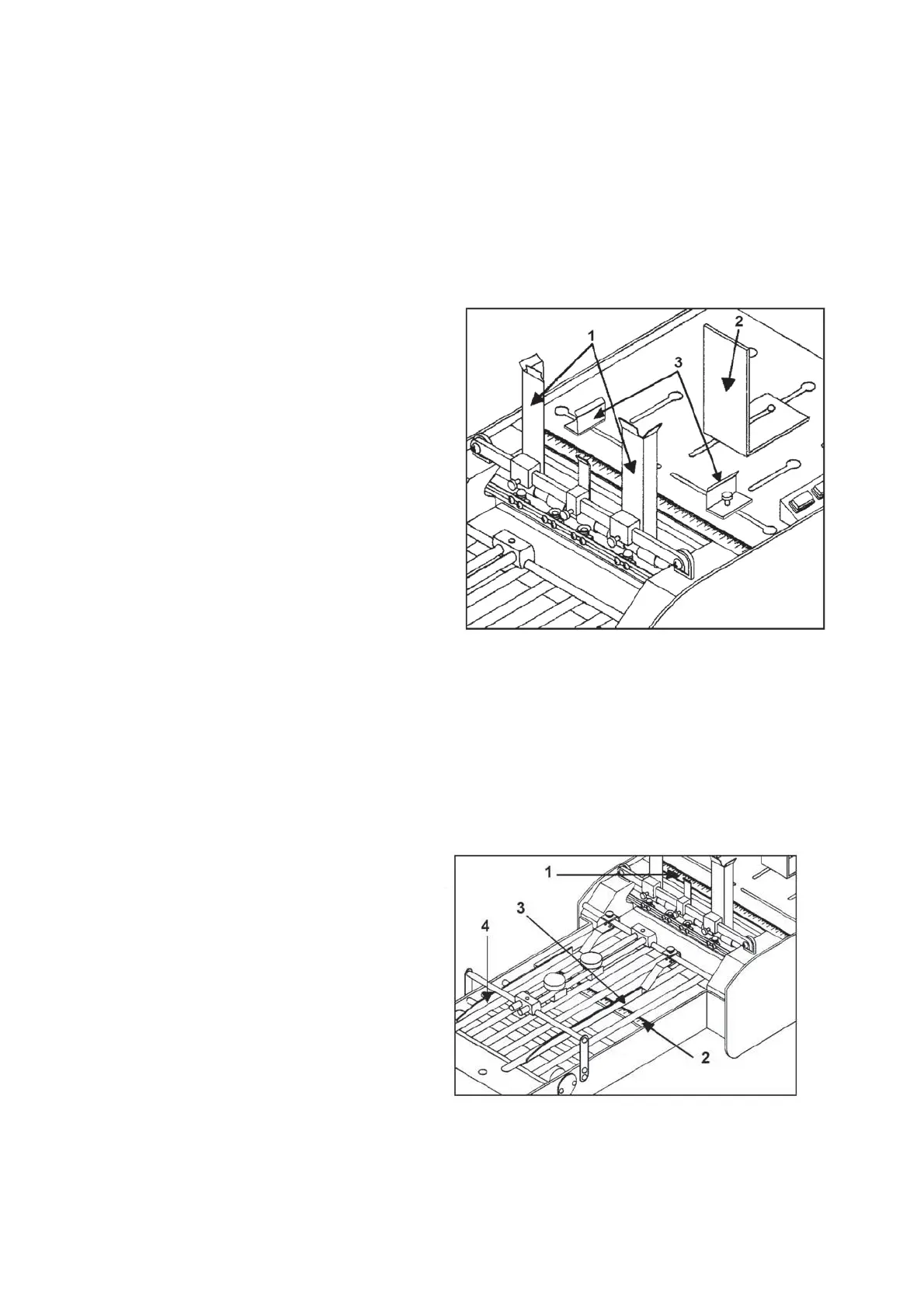

5. Attach Front Envelope Guides
[#1, Fig. 8] approximately in middle
of Feeder (as shown).
6. Place an envelope in Guides.
7. Attach Rear Envelope Guide
[#2, Fig. 8] using slot in Feeder floor
nearest rear end of envelope, then
adjust Anti-skewing Guides to sides
of envelope [#3, Fig. 8].
8. Adjust Envelope Guides so there is
no more than 1/16" (1.6 mm) clearance in all directions.
NOTE: EXCESSIVE CLEARANCE RESULTS IN MISFEEDING AND
IMPROPER PERFORMANCE.
9. Position suction cups distributed evenly with outside cups approximately 3/4" (2 cm) from
ends of envelope. NOTE THAT ENVELOPE SIZE DETERMINES HOW MANY
SUCTION CUPS SHOULD BE USED.
10. Place suction foot vacuum caps (P/N:
123-415) on suction feet not used.
11. Using scale on Feeder floor and scale
on Conveyor, [#1, Fig. 9], and scale on
Conveyor, [#2, Fig. 9], roughly adjust
Stop Guide, [#4, Fig. 9] and Push
Guide, [#3, Fig. 9] so envelope coming
down will clear them.
To Next Page
