ASTRO VA-1809 - 5 Connections with Peripherals; Example of Connections When Using the VA-1809 as a Monitor

5. Connections with peripherals

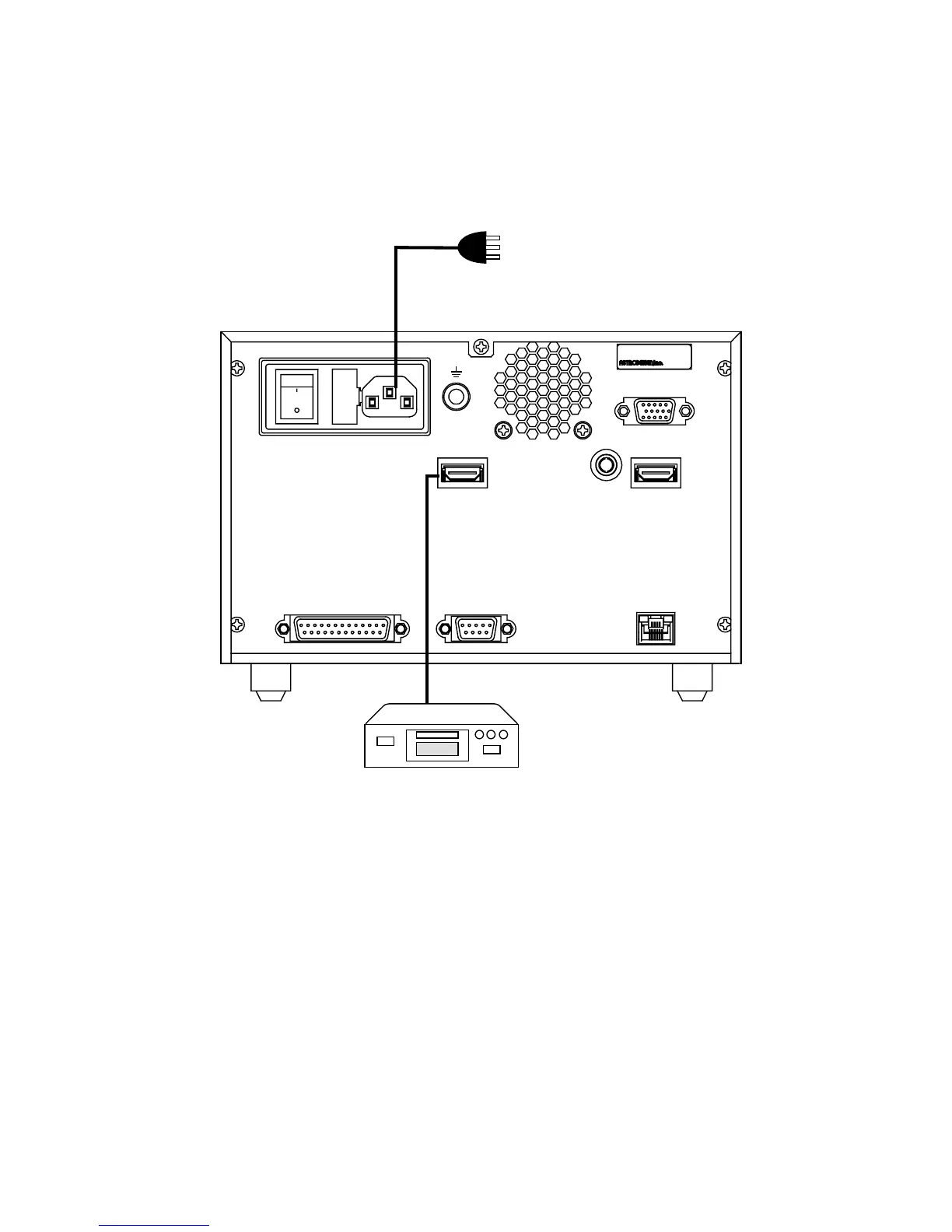

5.1 Example of connections when using the VA-1809 as a monitor
* For details on the VA-1809 settings, refer to page ???.
I/O
POWER AC IN(100-240V) T5A
RS-232C
HDMI IN
LAN
EXT MONITOR(VGA)
COAX OUT HDMI OUT
MODEL ;
SER.No ;
MADE IN JAP AN
HDMIの出力端子を持った装置
DVDプレーヤ ー等
DVD player or other unit equipped with
HDMI output connector
付属電源ケーブル
Power cable supplied with VA-1809
14
