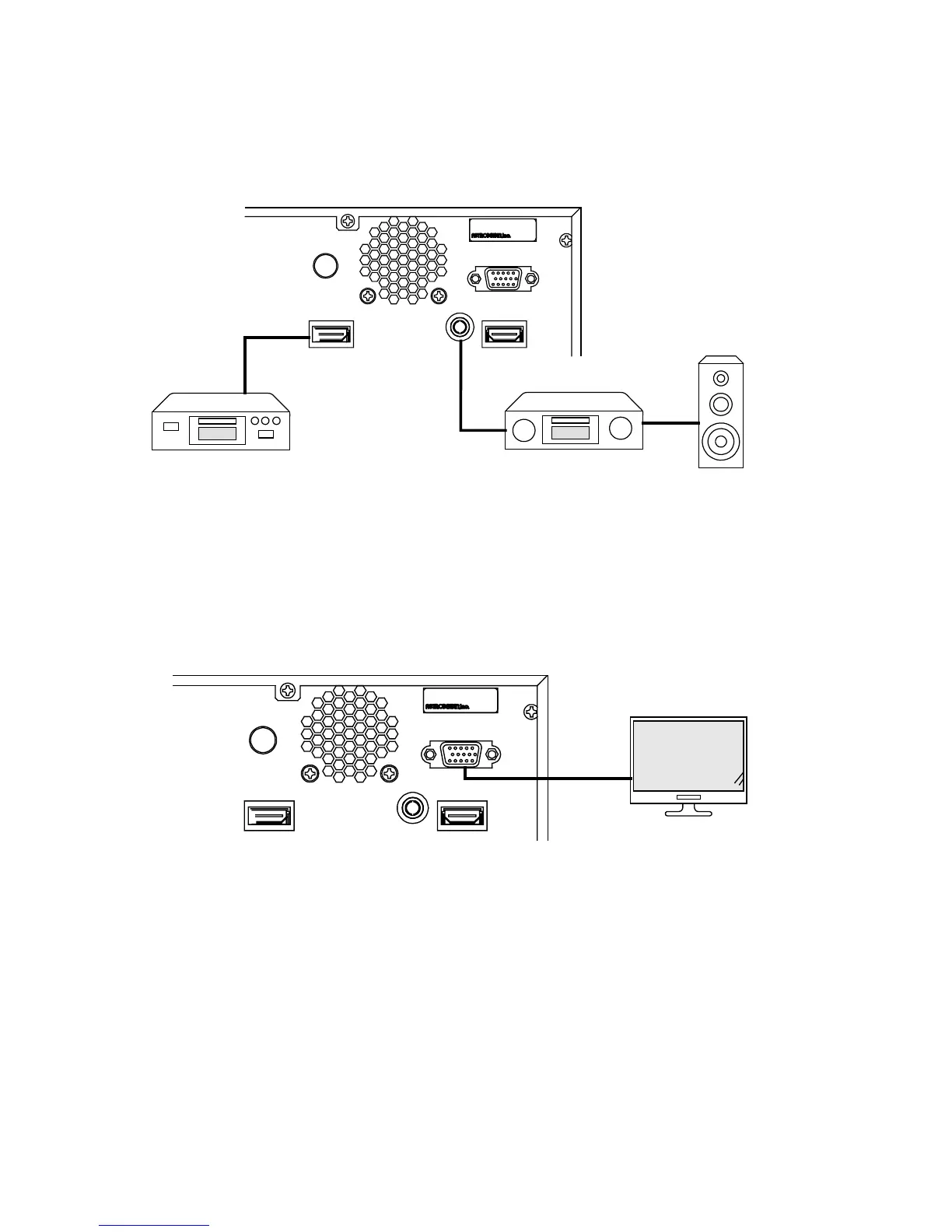

5.3 Connections for isolating the HDMI input sound for output
* For details on the VA-1809 settings, refer to page ???.
HDMI IN
EXT MONITOR(VGA)
COAX OUT HDMI OUT
MODEL ;
SER.No ;
MADE IN JAPAN
スピーカー
Speaker
C O A X入力のある装置
AVアンプ等
A
V amplifier or output unit equipped with
COAX input connector
HDMIの出力端子を持った装置
DVDプレーヤー等
DVD player or other unit equipped with
HDMI output connector
5.4 Example of connections when outputting on-screen displays to an
analog monitor
* Displays with the XGA screen resolution are output regardless of the performance
(EDID) of the monitor connected to the analog D-SUB output connector. Ensure that
the monitor connected can receive XGA.
HDMI IN
EXT MONITOR(VGA)
COAX OUT HDMI OUT
MODEL ;
SER.No ;
MADE IN JAP AN
ア タナログ入力端子のあるモニ
※XG A が出力できること
Monitor equipped with
analog input connectors
* The monitor must be able to output
displays with the XGA resolution.
