10.2 Mechanical Design and Dimensions
The Sierra’s metal components include a proper finish to offer maintenance-free service over the life
of the Sierra. The Sierra’s internal chassis, circuit cards, wiring and cabling, and other major
components are mounted and secured to provide maximum protection against imposed shock and
vibration.
10.2.1 Top View

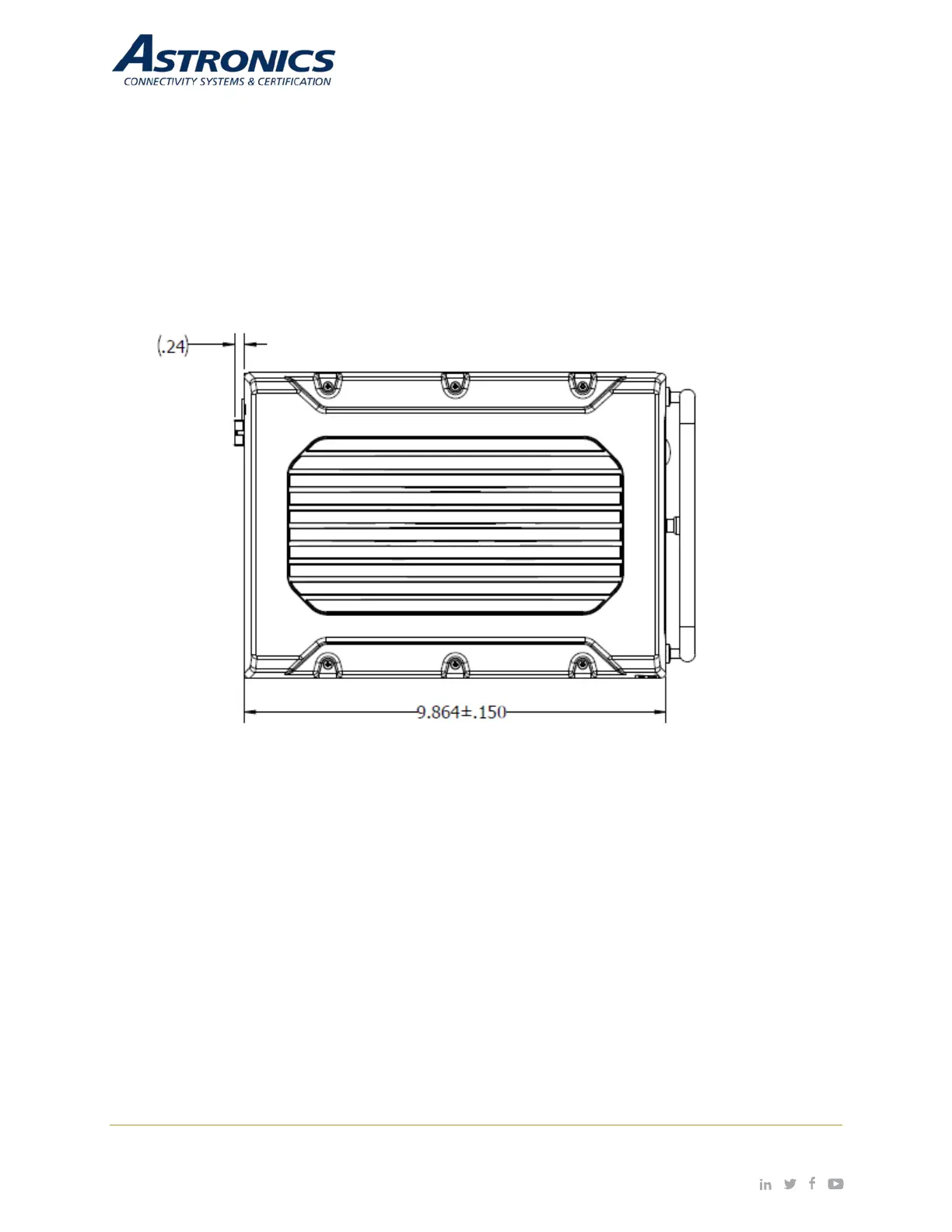

Figure 10-1: Sierra Top View
