Chapter 1: Product introduction
1.5 System memory
1.5.1 Overview
The motherboard comes with four Double Data Rate 3 (DDR3) Dual Inline Memory Modules
(DIMM) sockets.
A DDR3 module has the same physical dimensions as a DDR2 DIMM but is notched
differently to prevent installation on a DDR2 DIMM socket. DDR3 modules are developed for
better performance with less power consumption.

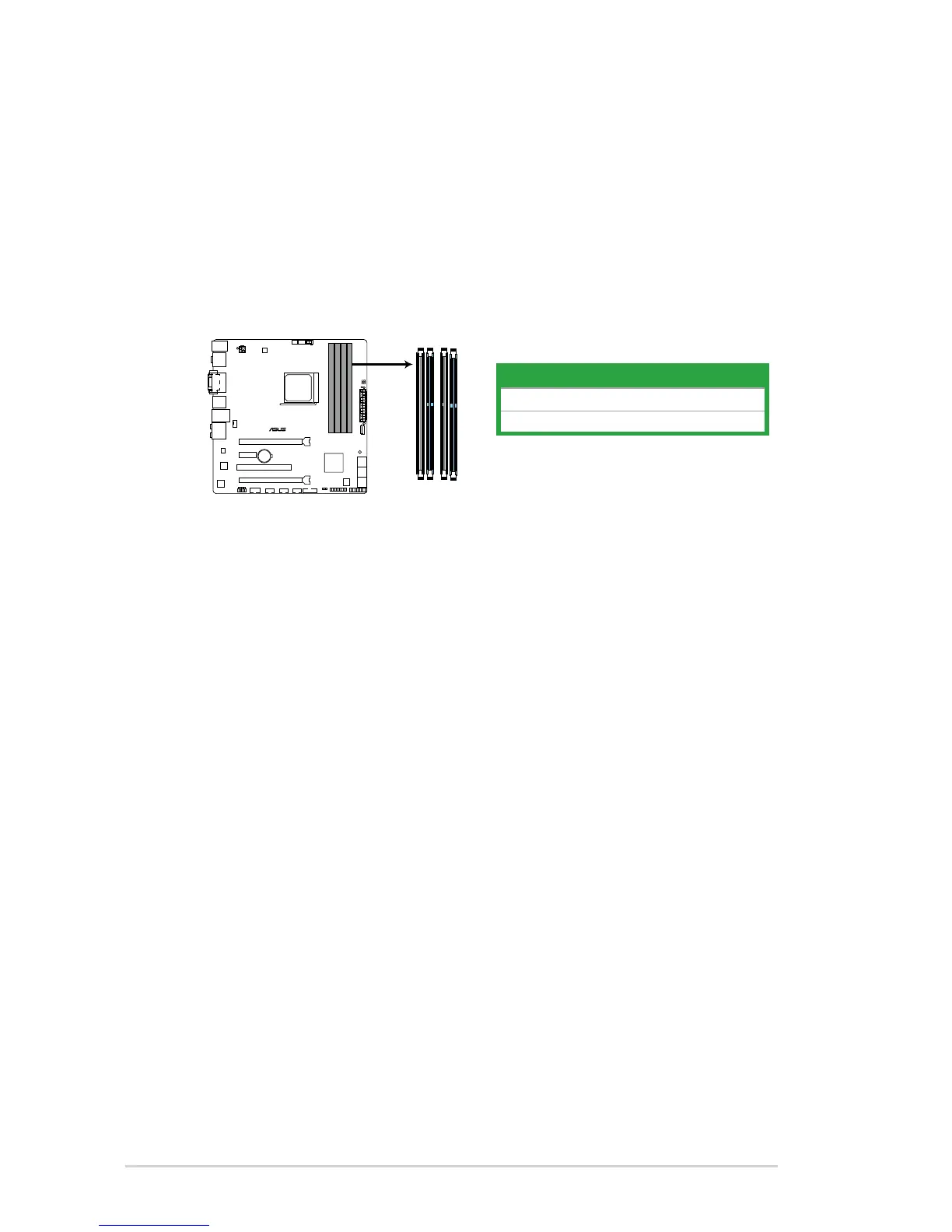

The gure illustrates the location of the DDR3 DIMM sockets:
Channel Sockets
Channel A DIMM_A1 and DIMM_A2
Channel B DIMM_B1 and DIMM_B2
F2A85-M
F2A85-M 240-pin DDR3 DIMM sockets
DIMM_A1 DIMM_A2 DIMM_B1 DIMM_B2

Asus F2A85-M Specifications

General

Form Factor	Micro ATX
Chipset	AMD A85X (Hudson D4)
Socket	FM2
Max Memory	64GB
Memory Type	DDR3
SATA 6Gb/s	7 x SATA 6Gb/s
RAID Support	RAID 0, 1, 5, 10
Memory Standard	DDR3 2400(O.C.)/1866/1600/1333 MHz
PCI Express x1	2
USB 3.0 Ports	4 x USB 3.0 (2 at back panel, 2 via internal header)
USB 2.0 Ports	8 x USB 2.0 (4 rear, 4 via header)
Audio	Realtek 8-Channel High Definition Audio CODEC
LAN	Realtek RTL8111F Gigabit LAN Controller
Memory Slots	4 x DIMM
