Asus F2A85-M User Guide

1-20
Chapter 1: Product introduction

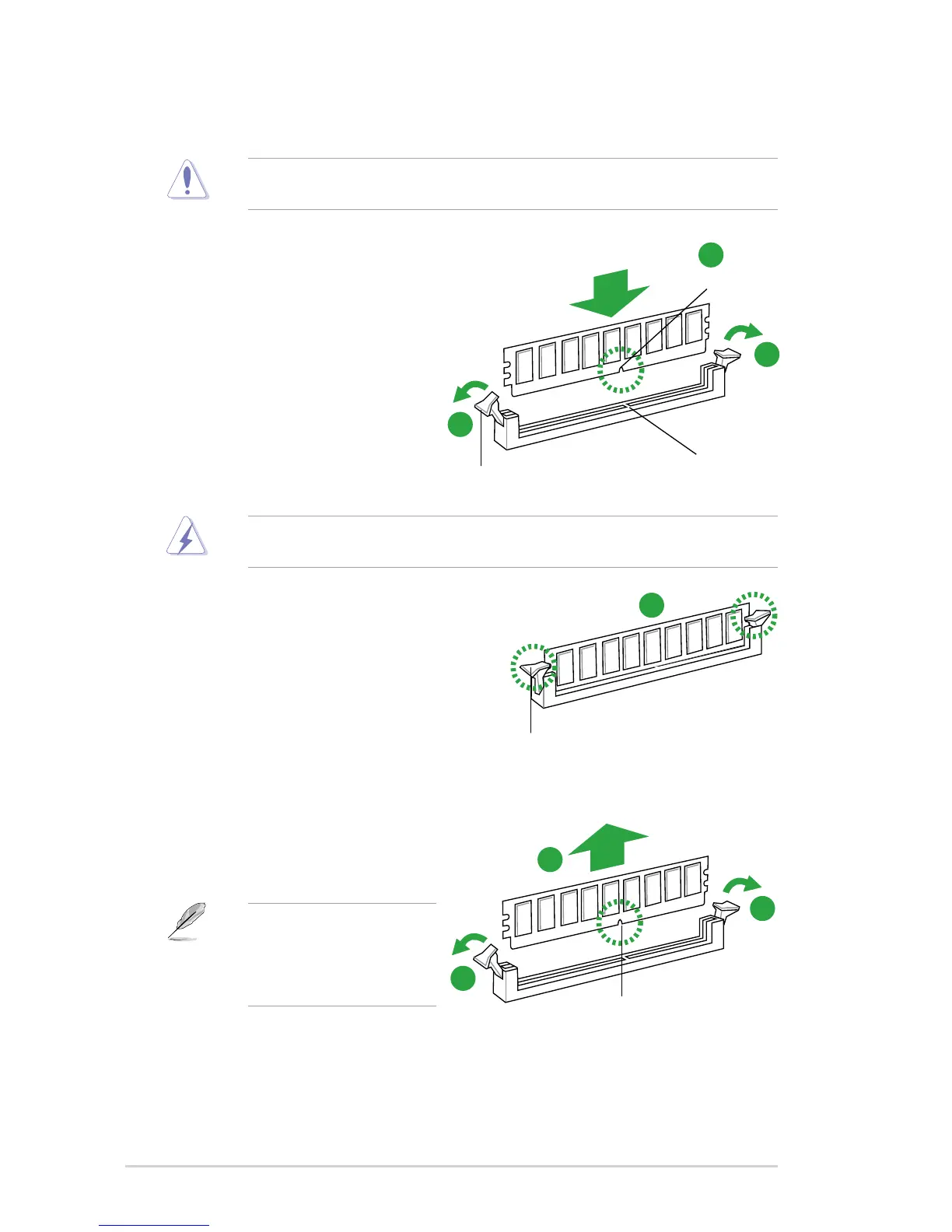

1.5.3 Installing a DIMM
Unplug the power supply before adding or removing DIMMs or other system components.
Failure to do so can cause severe damage to both the motherboard and the components.
1. Press the retaining clips
outward to unlock a DIMM
socket.
2. Align a DIMM on the socket
such that the notch on the
DIMM matches the DIMM
slot key on the socket.
A DIMM is keyed with a notch so that it ts in only one direction. DO NOT force a DIMM into
a socket in the wrong direction to avoid damaging the DIMM.
3. Firmly insert the DIMM into the
socket until the retaining clips snap
back in place and the DIMM is
properly seated.
Locked Retaining Clip
3
1.5.4 Removing a DIMM
To remove a DIMM:
1. Simultaneously press the retaining
clips outward to unlock the DIMM.
2. Remove the DIMM from the socket.
Support the DIMM lightly with
your ngers when pressing the
retaining clips. The DIMM might
get damaged when it ips out
with extra force.
DIMM notch
1
1
2
Unlocked retaining clip
1
DIMM notch
2
1
DIMM slot key

Asus F2A85-M Specifications

General

Form Factor	Micro ATX
Chipset	AMD A85X (Hudson D4)
Socket	FM2
Max Memory	64GB
Memory Type	DDR3
SATA 6Gb/s	7 x SATA 6Gb/s
RAID Support	RAID 0, 1, 5, 10
Memory Standard	DDR3 2400(O.C.)/1866/1600/1333 MHz
PCI Express x1	2
USB 3.0 Ports	4 x USB 3.0 (2 at back panel, 2 via internal header)
USB 2.0 Ports	8 x USB 2.0 (4 rear, 4 via header)
Audio	Realtek 8-Channel High Definition Audio CODEC
LAN	Realtek RTL8111F Gigabit LAN Controller
Memory Slots	4 x DIMM
