Asus F2A85-M User Guide

ASUS F2A85-M
1-31
10. System panel connector (20-8 pin PANEL)
This connector supports several chassis-mounted functions.
• System power LED (2-pin PLED)
This 2-pin connector is for the system power LED. Connect the chassis power LED
cable to this connector. The system power LED lights up when you turn on the system
power, and blinks when the system is in sleep mode.
• Hard disk drive activity LED (2-pin IDE_LED)
This 2-pin connector is for the HDD Activity LED. Connect the HDD Activity LED cable
to this connector. The IDE LED lights up or ashes when data is read from or written to
the HDD.
• System warning speaker (4-pin SPEAKER)
This 4-pin connector is for the chassis-mounted system warning speaker. The speaker
allows you to hear system beeps and warnings.
• ATX power button/soft-off button (2-pin PWRSW)
This connector is for the system power button. Pressing the power switch for more than
four seconds while the system is ON turns the system OFF.
• Reset button (2-pin RESET)
This 2-pin connector is for the chassis-mounted reset button for system reboot without
turning off the system power.
F2A85-M

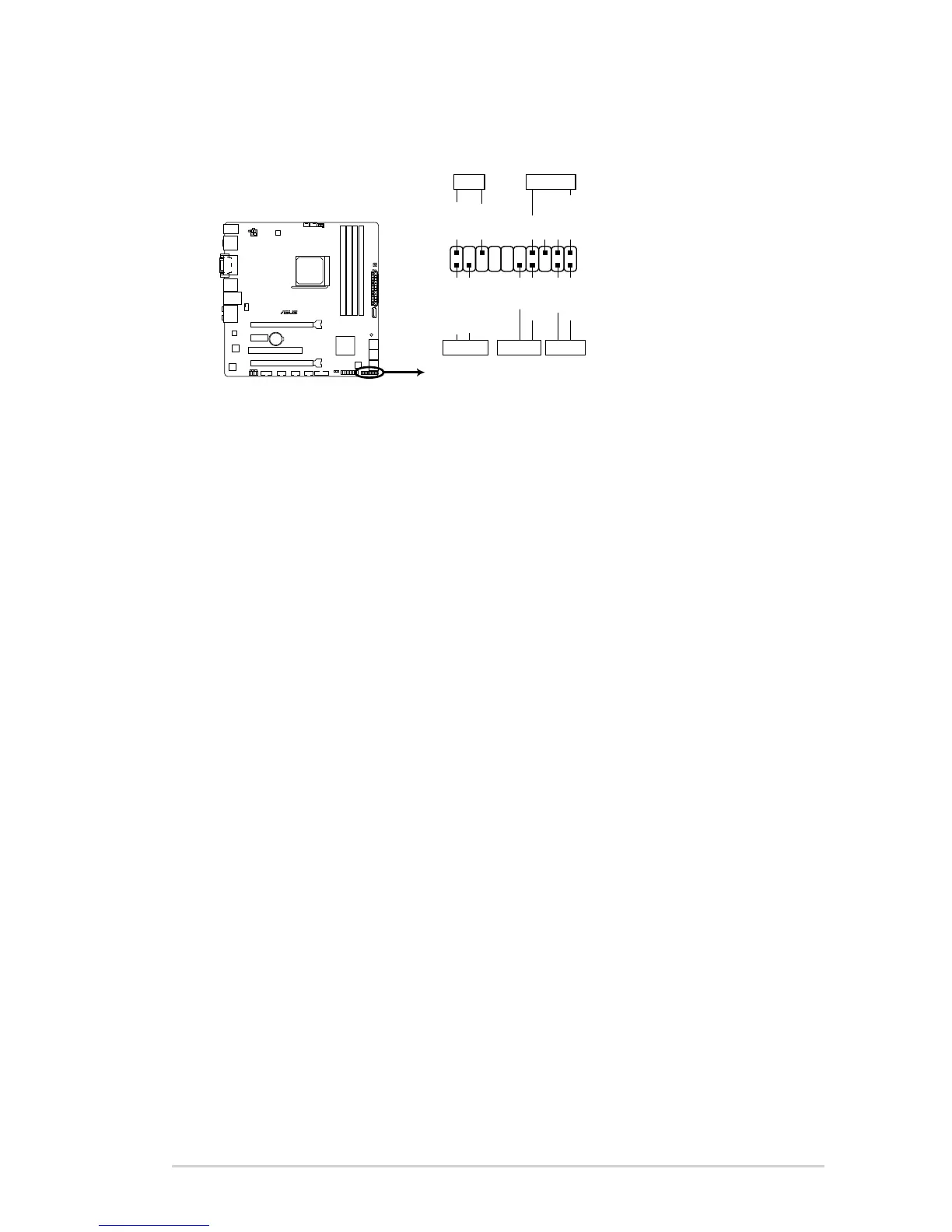

F2A85-M System panel connector
PIN 1
* Requires an ATX power supply
PLED SPEAKER
PLED+ PLED- +5V Ground Ground Speaker
IDE_LED+
IDE_LED-
PWR
Ground
Reset
Ground
PANEL
IDE_LED PWRSW RESET

Asus F2A85-M Specifications

General

Form Factor	Micro ATX
Chipset	AMD A85X (Hudson D4)
Socket	FM2
Max Memory	64GB
Memory Type	DDR3
SATA 6Gb/s	7 x SATA 6Gb/s
RAID Support	RAID 0, 1, 5, 10
Memory Standard	DDR3 2400(O.C.)/1866/1600/1333 MHz
PCI Express x1	2
USB 3.0 Ports	4 x USB 3.0 (2 at back panel, 2 via internal header)
USB 2.0 Ports	8 x USB 2.0 (4 rear, 4 via header)
Audio	Realtek 8-Channel High Definition Audio CODEC
LAN	Realtek RTL8111F Gigabit LAN Controller
Memory Slots	4 x DIMM
