Chapter 1: Product introduction

3. GPU Boost LED

The GPU Boost LED lights when the GPU Boost switch is turned to

Enable

.

F2A85-M

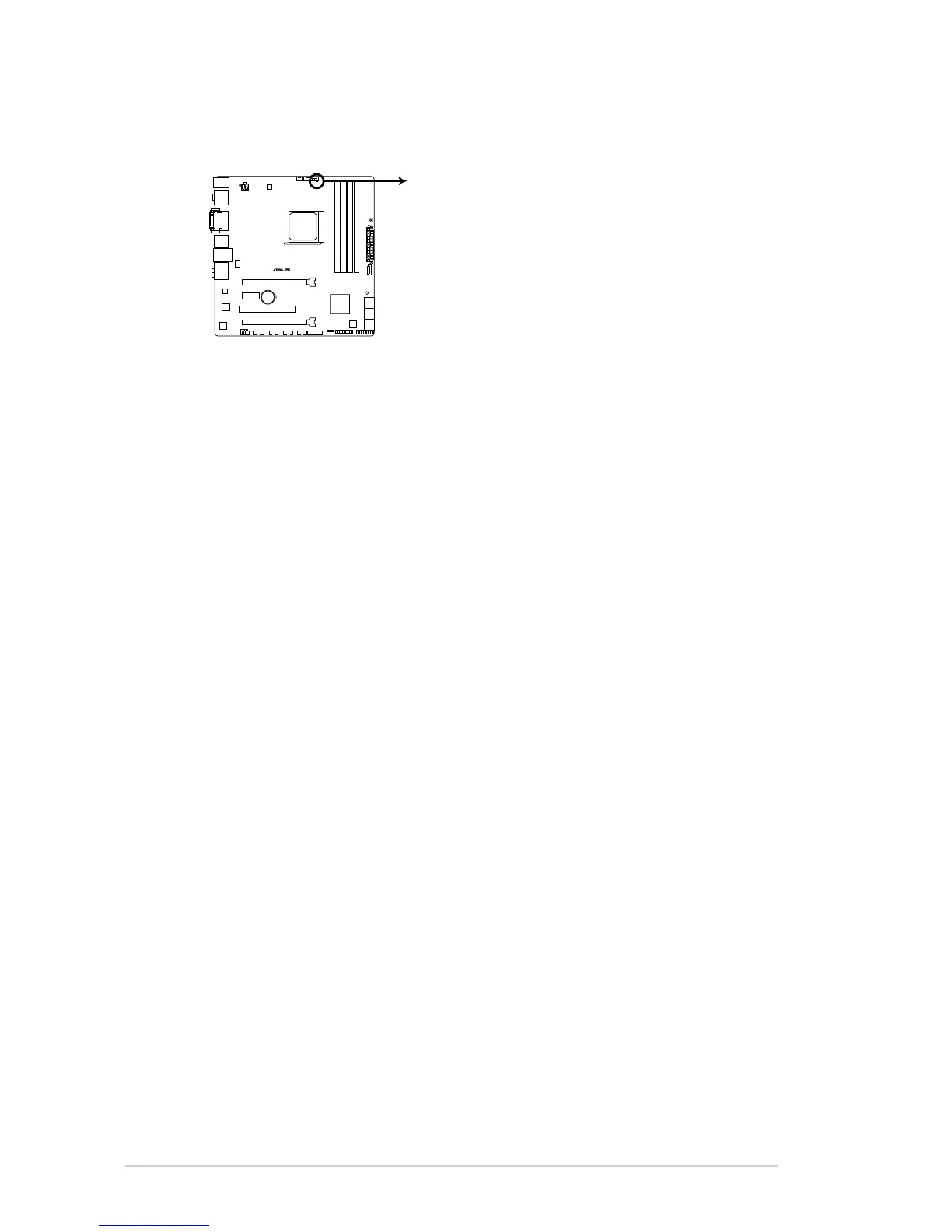

F2A85-M GPU Boost LED

GPU_LED
