5. When the CPU is in place, push down the socket
lever to secure the CPU. The lever clicks on the side
tab to indicate that it is locked.
6. Install a CPU heatsink and fan following the
instructions that comes with the heatsink package.
You can also refer to section 1.6.2 Installing
heatsink and fan for instructions.

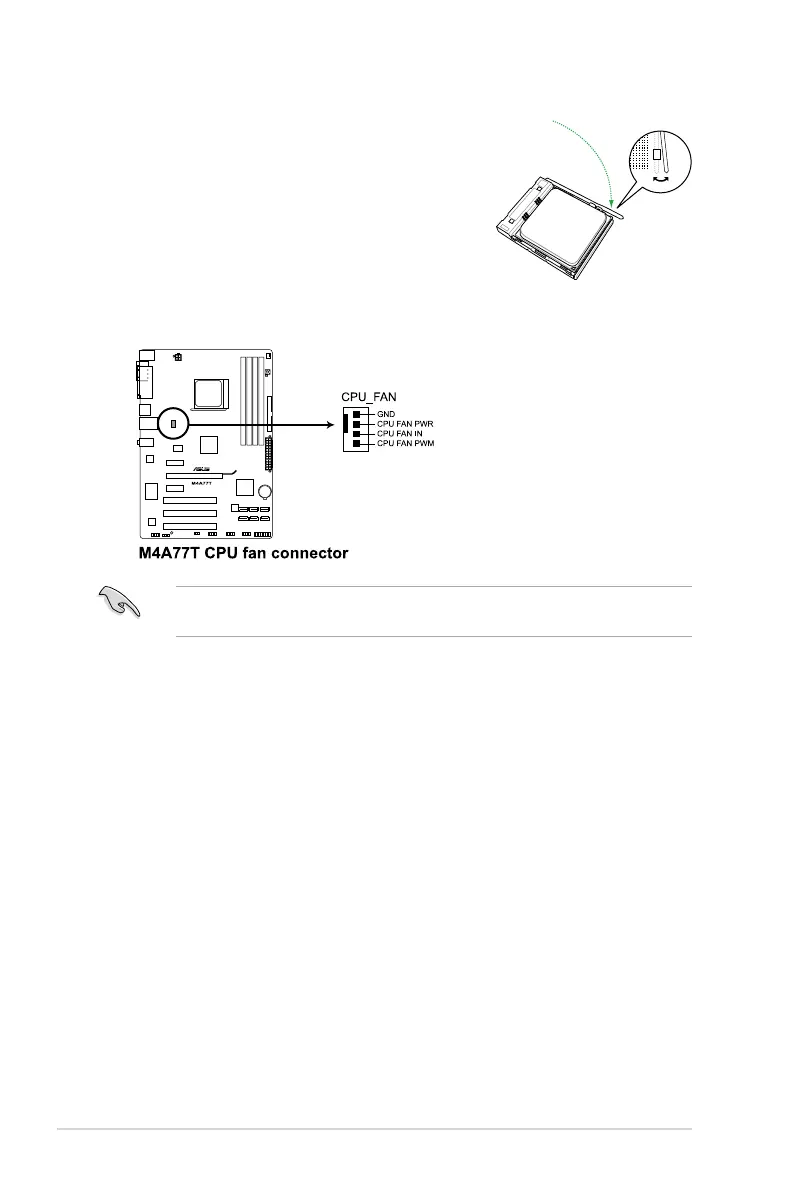

7. Connect the CPU fan cable to the CPU_FAN connector on the motherboard.
DO NOT forget to connect the CPU fan connector! Hardware monitoring errors can occur if
you fail to plug this connector.
Chapter 1: Product introduction1-8

Asus M4A77T Specifications

General

ECC	Yes
Number of memory slots	4
Maximum internal memory	16 GB
Processor socket	Socket AM3
Processor manufacturer	AMD
Maximum number of SMP processors	1
Number of SATA connectors	6
Headphone outputs	3
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Firewire (IEEE 1394) ports	0
Motherboard chipset	AMD 770
Motherboard form factor	ATX
PCI Express x1 slots	2
Controller 2nd interface type	IDE/SATA
LAN controller	Realtek RTL8112L
ACPI version	2.0
BIOS memory size	64 Mbit

Weight and Dimensions

Depth	213 mm
Width	305 mm
