Asus M4A77T User Manual

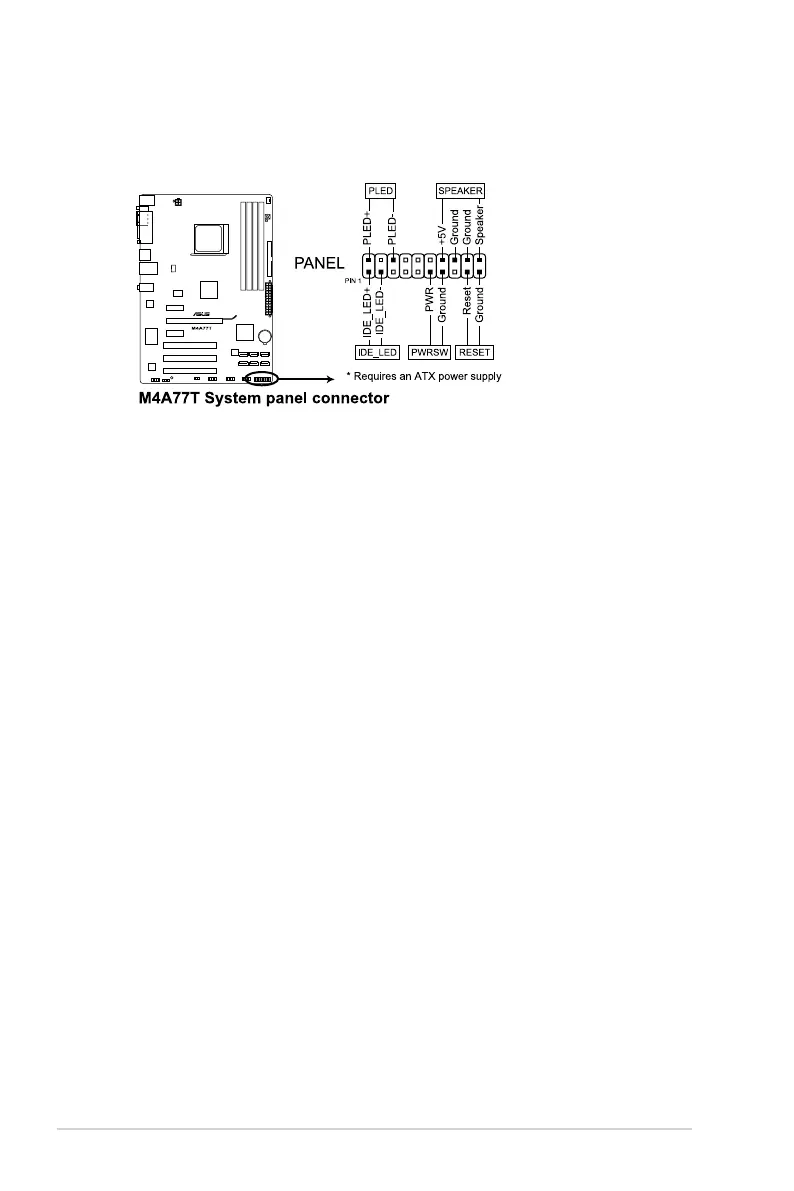

5. System panel connector (20-8 pin PANEL)
This connector supports several chassis-mounted functions.
• System power LED (2-pin PLED)
This 2-pin connector is for the system power LED. Connect the chassis power LED
cable to this connector. The system power LED lights up when you turn on the system
power, and blinks when the system is in sleep mode.
• Hard disk drive activity LED (2-pin IDE_LED)
This 2-pin connector is for the HDD Activity LED. Connect the HDD Activity LED cable
to this connector. The IDE LED lights up or ashes when data is read from or written to
the HDD.
• System warning speaker (4-pin SPEAKER)
This 4-pin connector is for the chassis-mounted system warning speaker. The speaker
allows you to hear system beeps and warnings.
• ATX power button/soft-off button (2-pin PWRSW)
This connector is for the system power button.
• Reset button (2-pin RESET)
This 2-pin connector is for the chassis-mounted reset button for system reboot without
turning off the system power.
Chapter 1: Product introduction1-24

Asus M4A77T Specifications

General

ECC	Yes
Number of memory slots	4
Maximum internal memory	16 GB
Processor socket	Socket AM3
Processor manufacturer	AMD
Maximum number of SMP processors	1
Number of SATA connectors	6
Headphone outputs	3
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Firewire (IEEE 1394) ports	0
Motherboard chipset	AMD 770
Motherboard form factor	ATX
PCI Express x1 slots	2
Controller 2nd interface type	IDE/SATA
LAN controller	Realtek RTL8112L
ACPI version	2.0
BIOS memory size	64 Mbit

Weight and Dimensions

Depth	213 mm
Width	305 mm
