Asus M4A77T User Manual

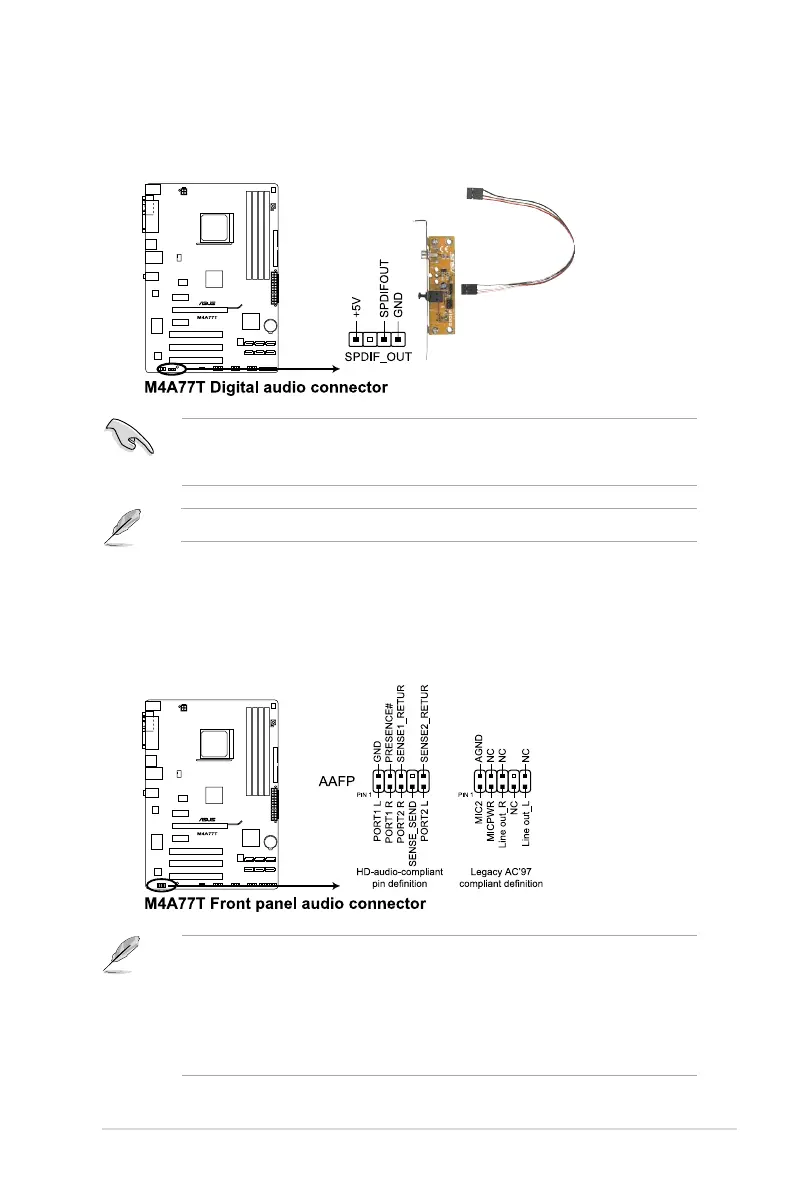

6. Digital audio connector (4-1 pin SPDIF_OUT)
This connector is for an additional Sony/Philips Digital Interface (S/PDIF) port.
Ensure that the audio device of Sound playback is VIA High Denition Audio (the name
may be different based on the OS). Go to Start > Control Panel > Sounds and Audio
Devices > Sound Playback to congure the setting.
The S/PDIF module is purchased separately.
• We recommend that you connect a high-denition front panel audio module to this
connector to avail of the motherboard high-denition audio capability.
• If you want to connect a high denition front panel audio module to this connector, set
the Front Panel Select item in the BIOS to [HD Audio]. See section 2.4.4 Onboard
Devices Conguration for details.
• The front panel audio I/O module is purchased separately.
7. Front panel audio connector (10-1 pin AAFP)
This connector is for a chassis-mounted front panel audio I/O module that supports
either High Denition Audio or AC`97 audio standard. Connect one end of the front
panel audio I/O module cable to this connector.
ASUS M4A77T 1-25

Asus M4A77T Specifications

General

ECC	Yes
Number of memory slots	4
Maximum internal memory	16 GB
Processor socket	Socket AM3
Processor manufacturer	AMD
Maximum number of SMP processors	1
Number of SATA connectors	6
Headphone outputs	3
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Firewire (IEEE 1394) ports	0
Motherboard chipset	AMD 770
Motherboard form factor	ATX
PCI Express x1 slots	2
Controller 2nd interface type	IDE/SATA
LAN controller	Realtek RTL8112L
ACPI version	2.0
BIOS memory size	64 Mbit

Weight and Dimensions

Depth	213 mm
Width	305 mm
