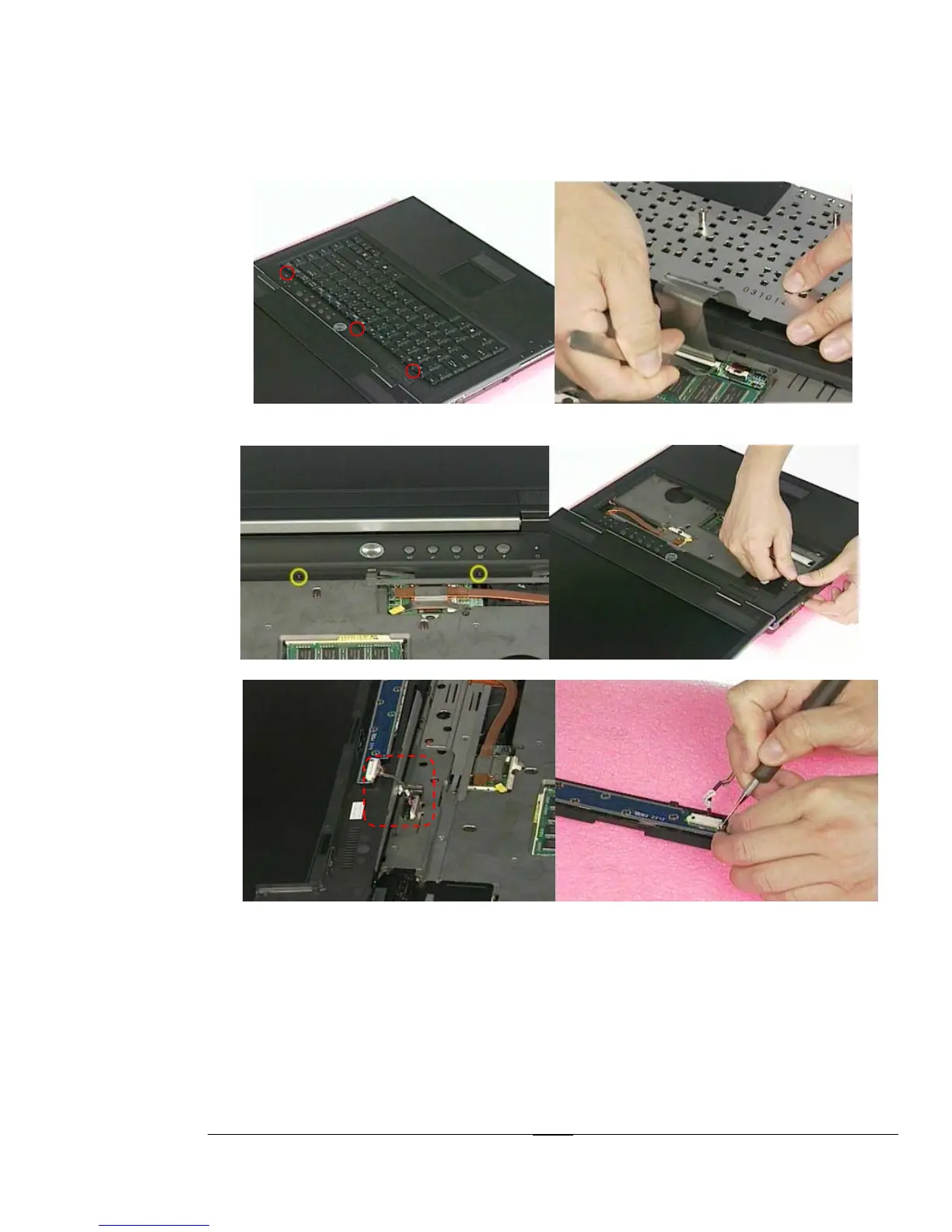

DISASSEMBLY PROCEDURE
2. Unlock 3 keyboard latches then pull out the keyboard forward and lay the keyboard on the
front side .
3. Remove 2 screws on the keyboard cover , then use tweezers to disconnect the keyboard two
covers and lift it up.
M2*3L
4. Loosen the switch board cable and take the keyboard cover away , then remove the switch cable
5. Remove 7 screws and take the switch board away.
3 - 4
