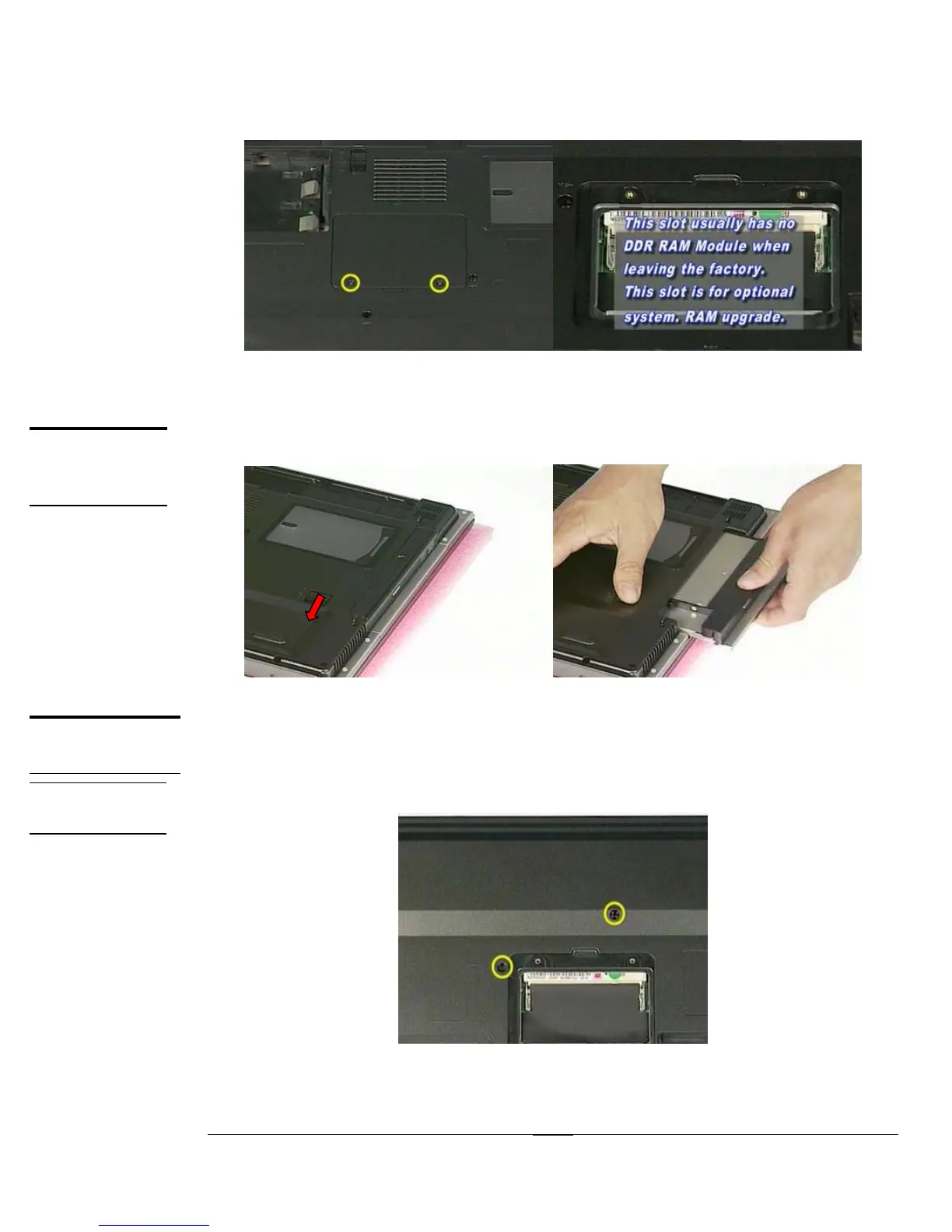

DISASSEMBLY PROCEDURE
M2*3L
Optical Drive Module
OPTICAL
DRIVE
REMOVAL
Press latch here then pull it out.
Keyboard Module
The illustration of below shows how to remove the keyboard
Removing Keyboard Cover
1. Remove 2 screws (M2.5*6L(K)) on the bottom case.
KEYBOARD
DISASSEMBLY
K/B COVER
REMOVAL
M2.5*6L
3 - 3
