2-22 Chapter 2: Hardware information

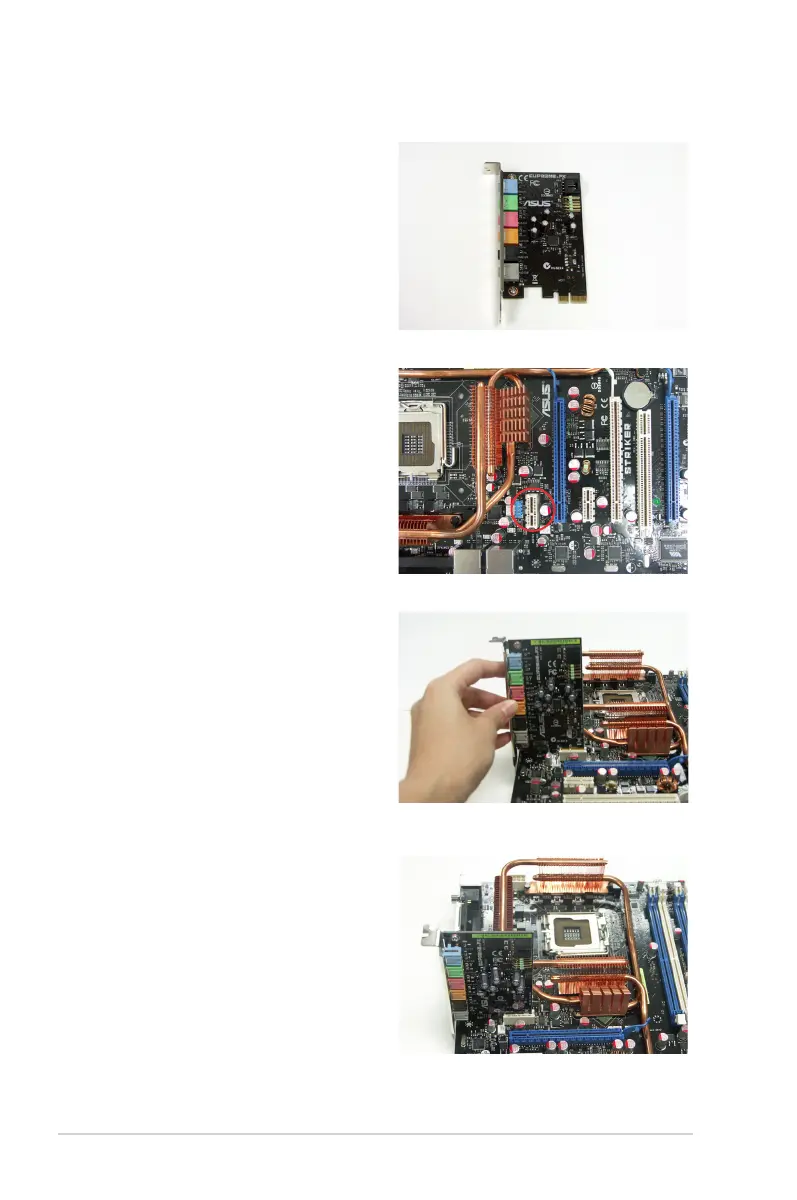

2.7 Audio card installation
1. Take out the Audio card from the
package.
2. Locate the slot on the motherboard.
3. Align the card connector with the
slot and press rmly until the card
sits on the slot completely.
4. The above photo shows the audio
card installed on the motherboard.
