2.8 Connectors

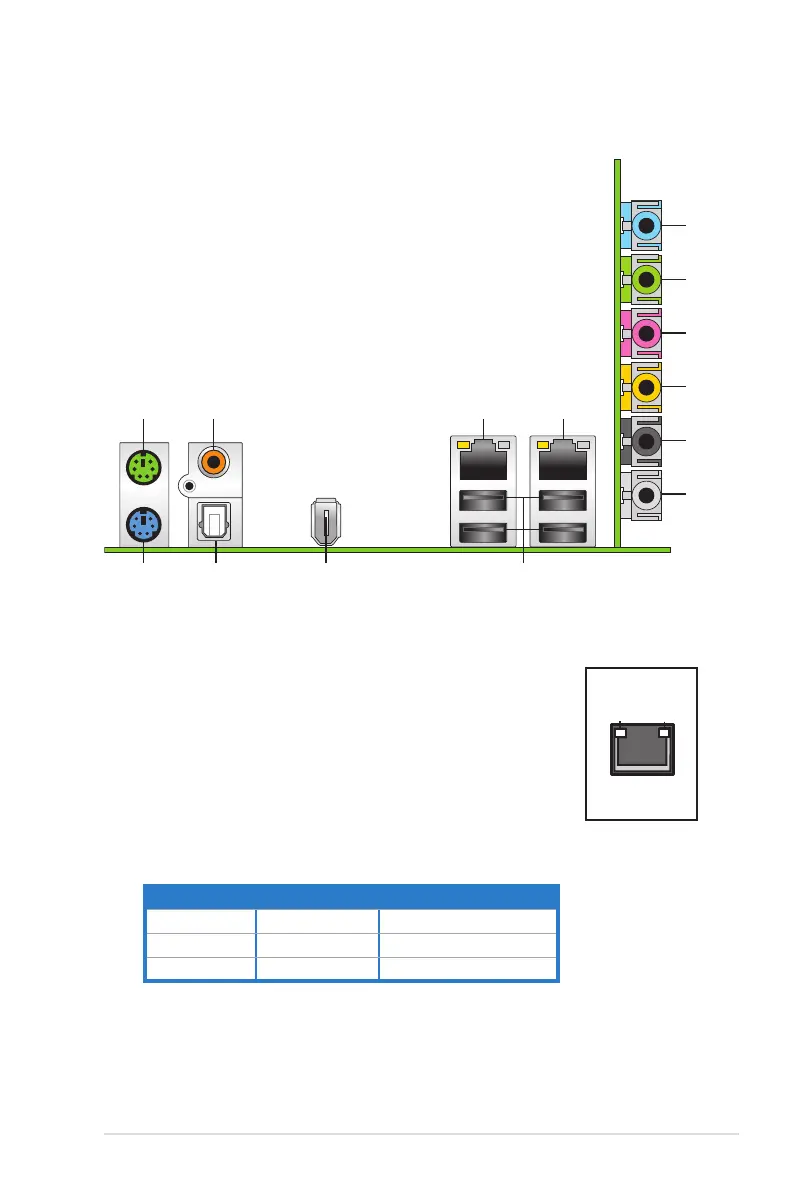

2.8.1 Rear panel connectors
1. PS/2 mouse port (green). This port is for a PS/2 mouse.
2. Coaxial S/PDIF Out port. This port connects an external audio output device
via an optical S/PDIF cable.
3. LAN 1 (RJ-45) port. Supported by NV Gigabit LAN
controller, this port allows Gigabit connection to a Local
Area Network (LAN) through a network hub. Refer to the
table on the next page for the LAN port LED indications.
4. LAN 2 (RJ-45) port. Supported by the NV Gigabit LAN
controller, this port allows Gigabit connection to a Local
Area Network (LAN) through a network hub. Refer to the
table below for the LAN port LED indications.
SPEED
LED
ACTIVITY/
LINK LED
LAN port
32-bit OS LAN port LED indications
* Blinking
Activity/Link Speed LED Description
OFF OFF Soft-off Mode
YELLOW* OFF During Power ON/OFF
YELLOW* ORANGE 100 Mbps connection
