5. IEEE 1394a port connector (10-1 pin IE1394_2)
This connector is for a IEEE 1394a port. Connect the IEEE 1394a module
cable to this connector, then install the module to a slot opening at the back
of the system chassis.
Never connect a USB cable to the IEEE 1394a connector. Doing so will damage
the motherboard!
You can connect the 1394 cable to ASUS Q-Connector (1394, red) rst, and
then install the Q-Connector (1394) to the 1394 connector onboard.

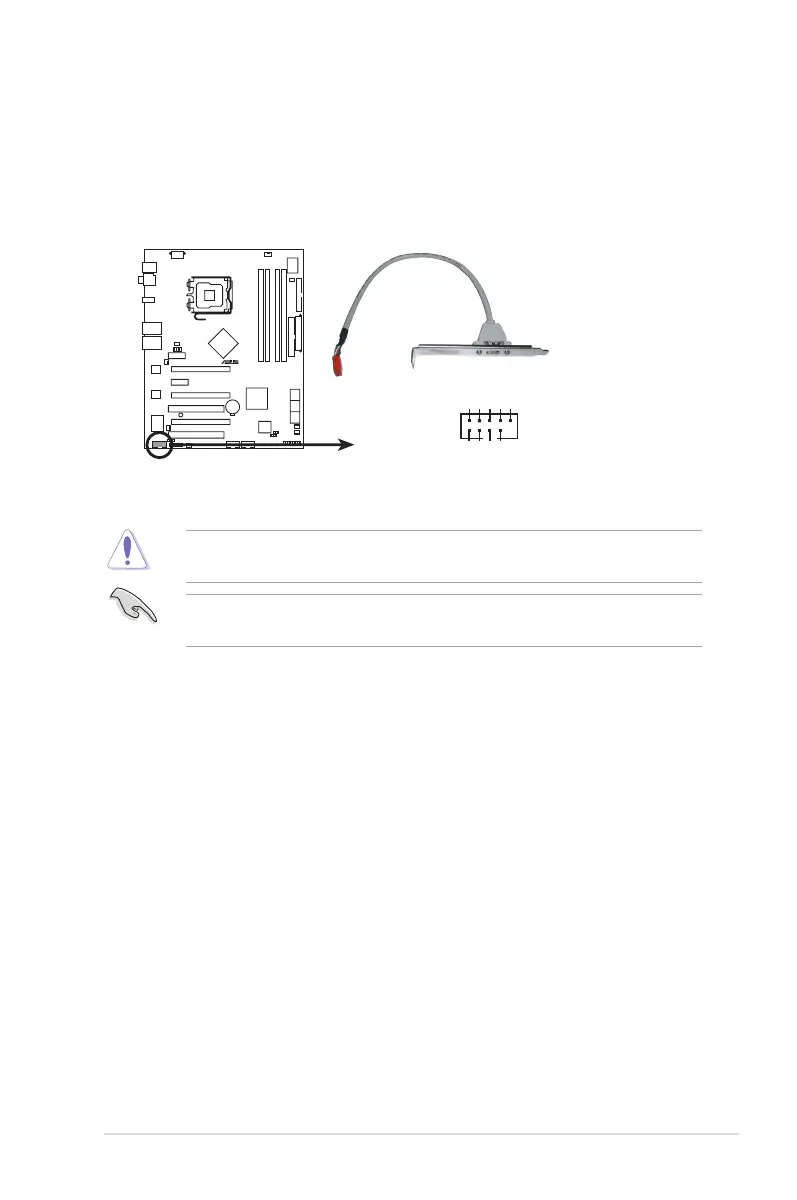

P5N32-E SLI Plus
®
P5N32-E SLI Plus IEEE 1394 connector
IE1394_2
PIN1
GND
+12V
TPB2-
GND
TPA2-
+12V TPB2+ GND TPA2+
