2.9 Connectors
2.9.1 Rear panel connectors

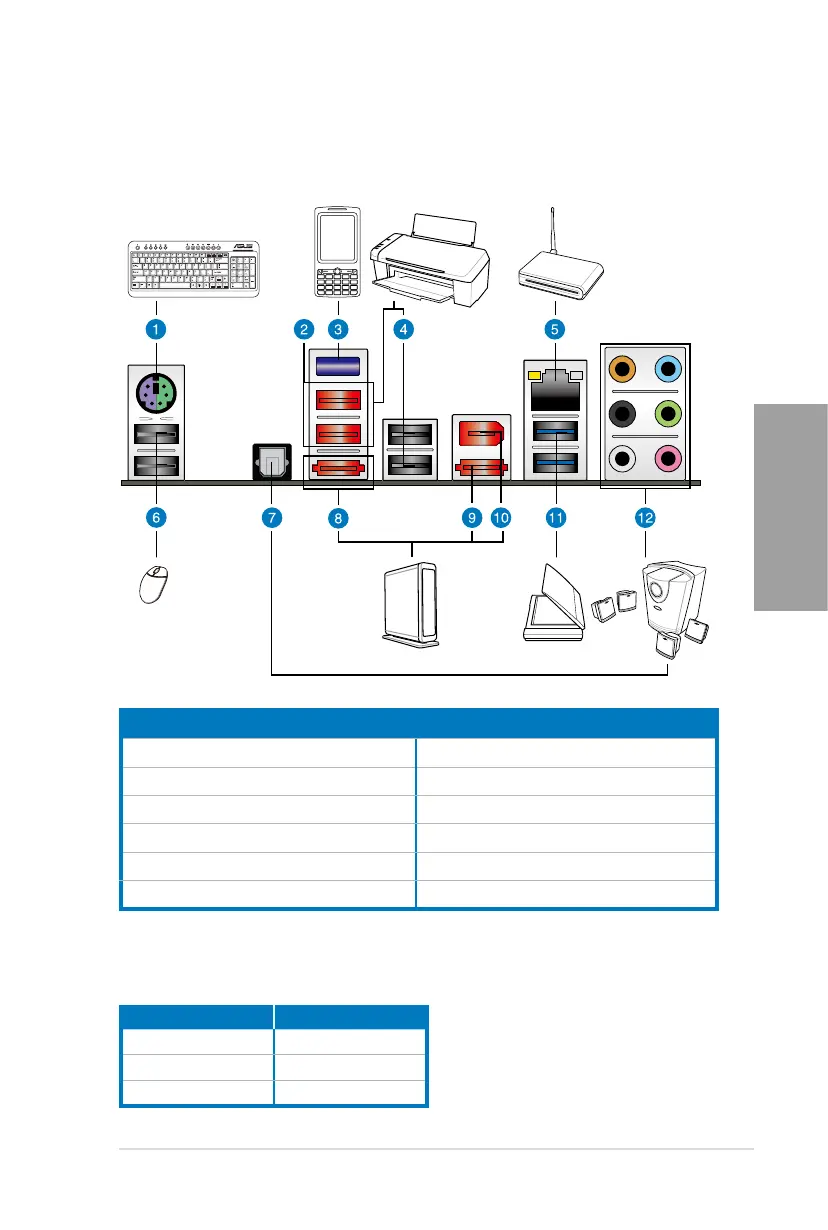

Rear panel connectors
1. PS/2 mouse/keyboard combo port 7. Optical S/PDIF Out port
2. USB 2.0 ports 3 and 4 8. External SATA port 3G 2
3. Bluetooth module* 9. External SATA port 3G 1
4. USB 2.0 ports 1 and 2 10. IEEE 1394a port
5. LAN1 (RJ-45) port** 11. USB 3.0 ports 1 and 2
6. USB 2.0 ports 5 and 6 12. Audio I/O ports***
**and ***: Refer to the tables on the next page for LAN port and audio port denitions.
* Bluetooth module LED indications
Status Description
Off No link
Blue Linked
Blinking Data activity
