2.8 Connectors
2.8.1 Rear panel connectors

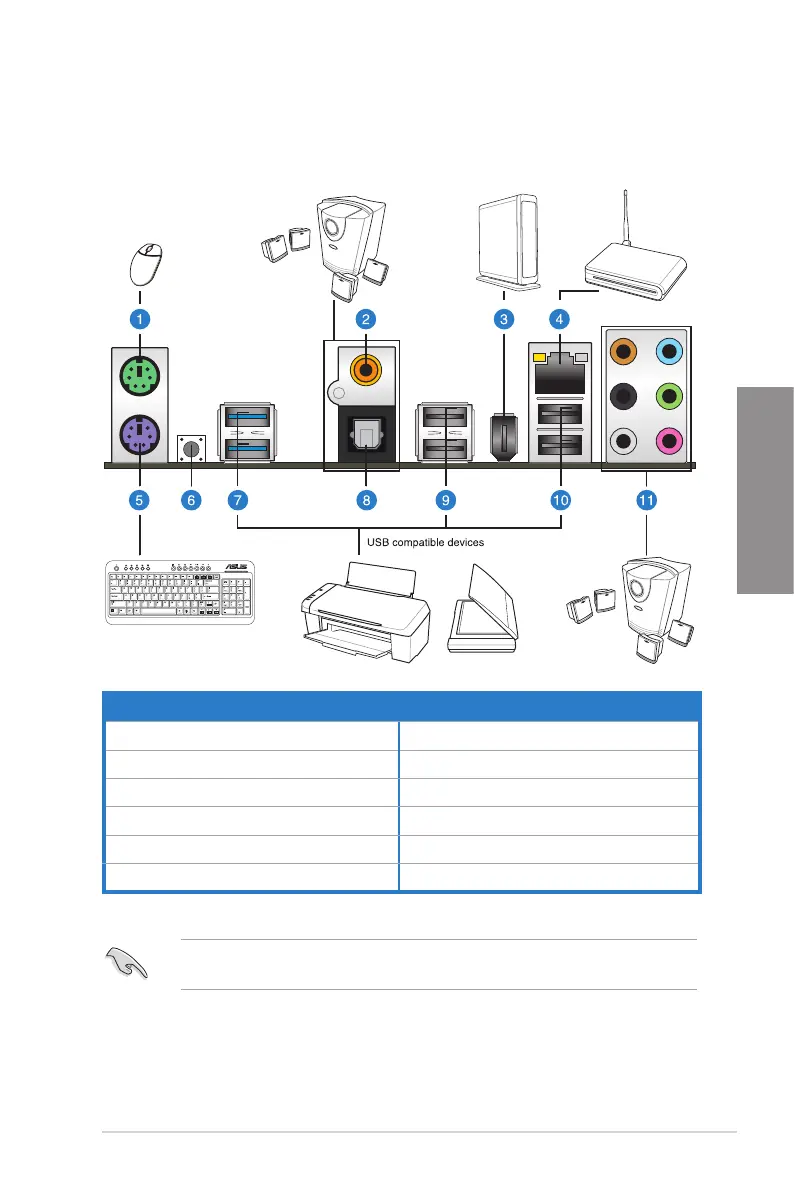

Rear panel connectors
1. PS/2 mouse port (green) 7. USB 3.0 ports 1 and 2
2. Coaxial S/PDIF Out port 8. Optical S/PDIF Out port
3. IEEE 1394a port 9. USB 2.0 ports 3 and 4
4. LAN1 (RJ-45) port* 10. USB 2.0 ports 1 and 2
5. PS/2 keyboard port (purple) 11. Audio I/O ports**
6. Clear CMOS switch
*and **: Refer to the tables on the next page for LAN port and audio port denitions.
Press the Clear CMOS switch to clear BIOS setup information only when the system hangs
due to overclocking.
