ASUS P7P55D Deluxe 2-31

Chapter 2

2.7.3 Internal connectors

Drive jumper setting Mode of

device(s)

Cable connector

Single device Cable-Select or Master - Black

Two devices Cable-Select Master Black

Slave Gray

Master Master Black or gray

Slave Slave

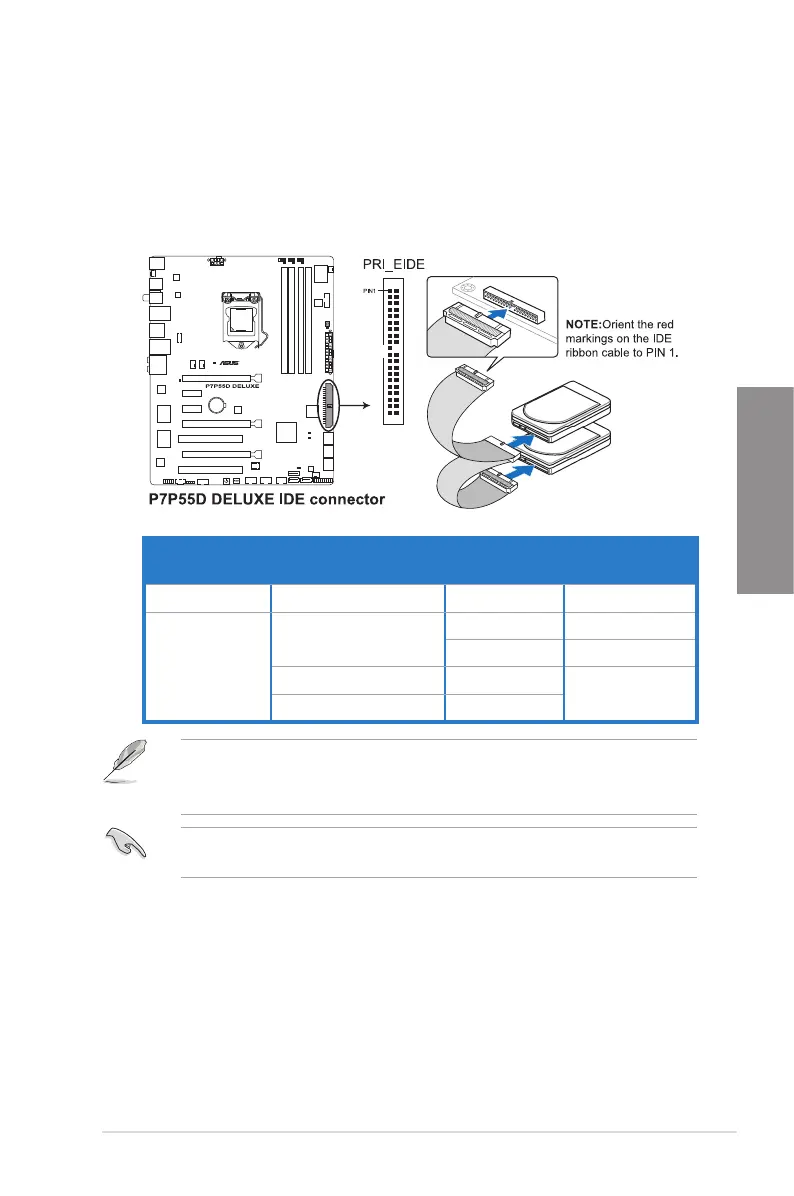

1. IDE connector (40-1 pin PRI_IDE)

The onboard IDE connector is for the Ultra DMA 133/100/66 signal cable. There are

three connectors on each Ultra DMA 133/100/66 signal cable: blue, black, and gray.

Connect the blue connector to the motherboard’s IDE connector, then select one of the

following modes to congure your device.

• Pin 20 on the IDE connector is removed to match the covered hole on the Ultra DMA

cable connector. This prevents incorrect insertion when you connect the IDE cable.

• Use the 80-conductor IDE cable for Ultra DMA 133/100/66 IDE devices.

If any device jumper is set as “Cable-Select”, ensure that all other device jumpers have the

same setting.
