1-29 Chapter 1: Product introduction
6. Intel
®
P67 Serial ATA 6.0Gb/s connectors (7-pin SATA6G_1/2 [gray])
These connectors connect to Serial ATA 6.0 Gb/s hard disk drives via Serial ATA 6.0
Gb/s signal cables.
• These connectors are set to [AHCI Mode] by default. If you intend to create a Serial ATA
RAID set using these connectors, set the SATA Mode item in the BIOS to [RAID Mode].
See section 2.5.4 SATA Conguration for details.
• Before creating a RAID set, refer to the RAID Supplementary Guide included in the
folder named Manual in the support DVD.
• You must install Windows
®
XP Service Pack 2 or later version before using Serial ATA
hard disk drives. The Serial ATA RAID feature (RAID 0, 1, 5, and 10) is available only if
you are using Windows
®
XP SP2 or later version.
• When using hot-plug and NCQ, set the
SATA Mode item in the BIOS to [AHCI Mode].
See section 2.5.4 SATA Conguration for details.
P8P67 LX
GND
RSATA_TXP1
RSATA_TXN1
GND
RSATA_RXP1
RSATA_RXN1
GND
SATA6G_1
SATA6G_2
GND RSATA_RXN2 RSATA_RXP2 GND RSATA_TXN2 RSATA_TXP2 GND

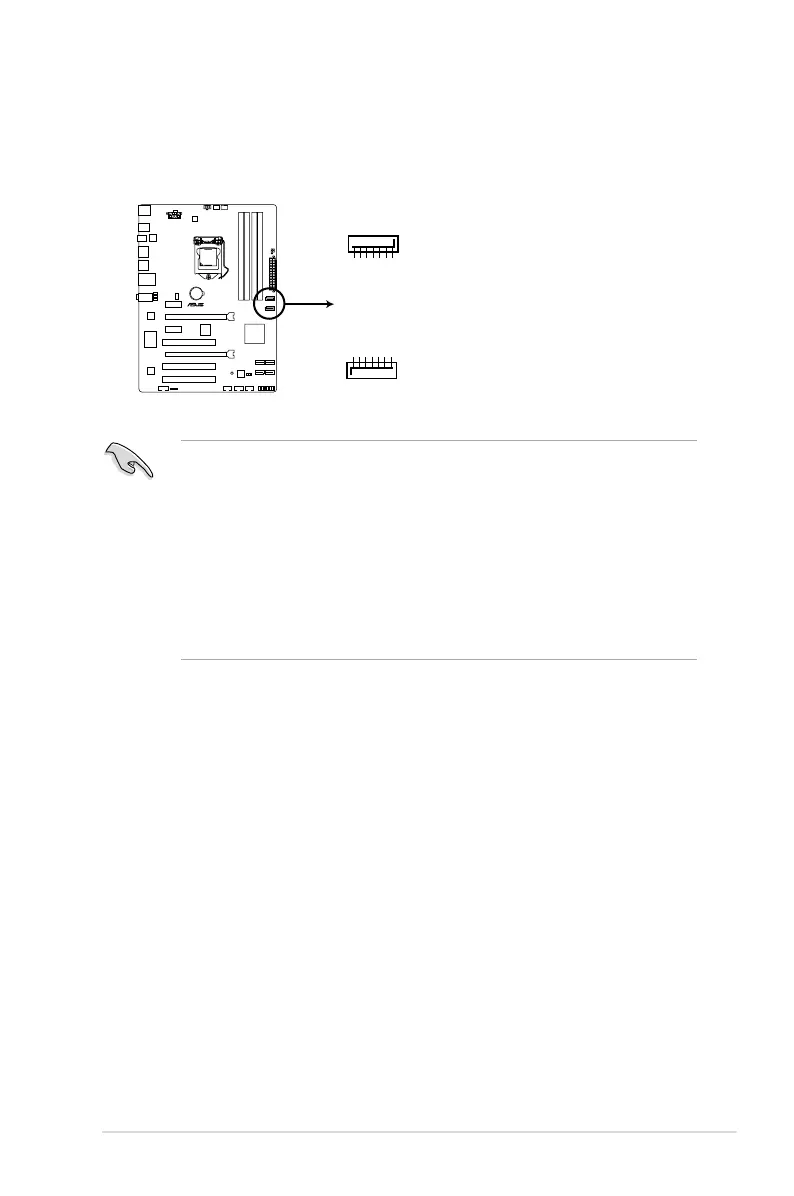

P8P67 LX SATA 6.0Gb/s connectors
