ASUS P8P67 LX 1-30
7. Intel
®
P67 Serial ATA 3.0Gb/s connectors (7-pin SATA3G_1~4 [blue])
These connectors connect to Serial ATA 3.0 Gb/s hard disk drives and optical drives via
Serial ATA 3.0 Gb/s signal cables.
If you installed Serial ATA hard disk drives, you can create a RAID 0, 1, 5, and 0+1(10)
congurations with the Intel
®
Rapid Storage Technology through the onboard Intel
®
P67
chipset.
• These connectors are set to [AHCI Mode] by default. If you intend to create a Serial ATA
RAID set using these connectors, set the SATA Mode item in the BIOS to [RAID Mode].
See section 2.5.4 SATA Conguration for details.
• Before creating a RAID set, refer to the RAID Supplementary Guide included in the
folder named Manual in the support DVD.
• You must install Windows
®
XP Service Pack 2 or later version before using Serial ATA
hard disk drives. The Serial ATA RAID feature (RAID 0, 1, 5, and 10) is available only if
you are using Windows
®
XP SP2 or later version.
• When using hot-plug and NCQ, set the
SATA Mode item in the BIOS to [AHCI Mode].
See section 2.5.4 SATA Conguration for details.
P8P67 LX
GND
RSATA_TXP4
RSATA_TXN4
GND
RSATA_RXP4
RSATA_RXN4
GND
SATA3G_4 SATA3G_3
SATA3G_2 SATA3G_1
GND
RSATA_TXP3
RSATA_TXN3
GND
RSATA_RXP3
RSATA_RXN3
GND
GND RSATA_RXN2 RSATA_RXP2 GND RSATA_TXN2 RSATA_TXP2 GND GND RSATA_RXN1 RSATA_RXP1 GND RSATA_TXN1 RSATA_TXP1 GND

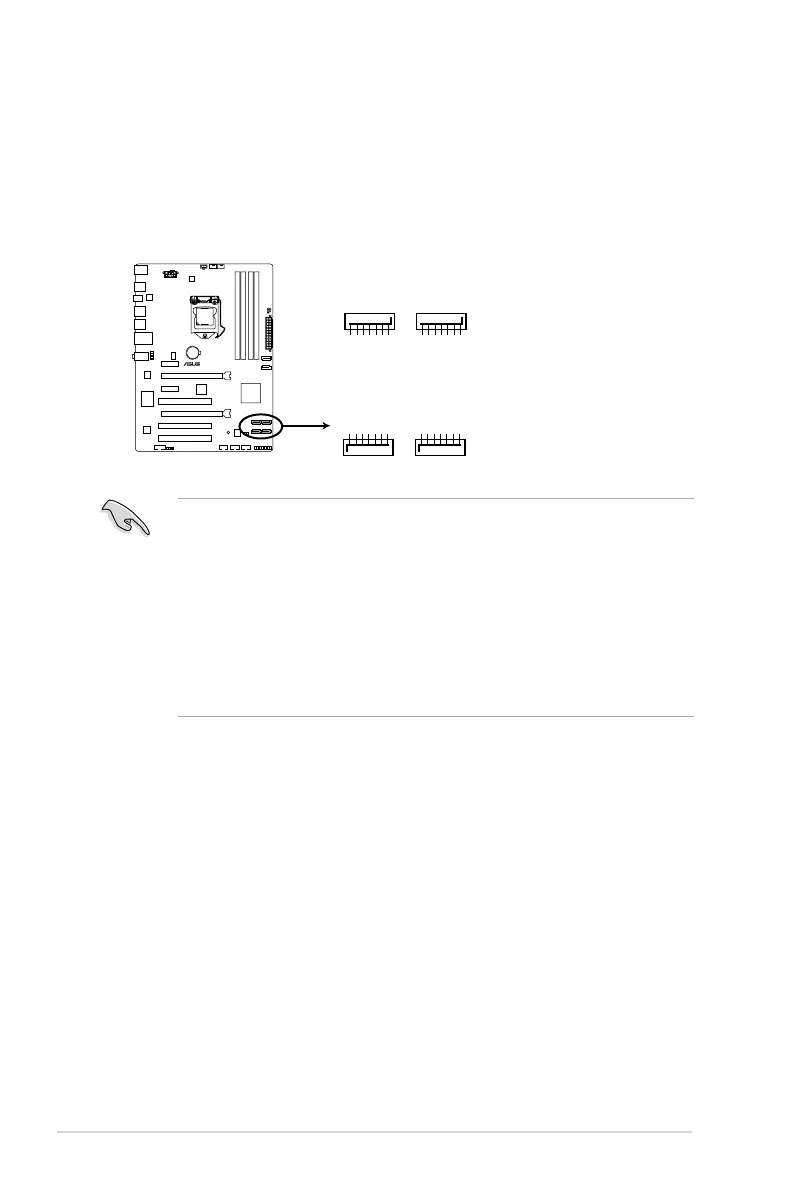

P8P67 LX SATA 3.0Gb/s connectors

Asus P8P67 LX Specifications

General

Chipset	Intel P67
Socket	LGA 1155
Memory Type	DDR3
Maximum Memory	32GB
Storage Interfaces	4 x SATA 3Gb/s, 2 x SATA 6Gb/s
Form Factor	ATX
Memory Standard	DDR3 2200(O.C.)/2133(O.C.)/1866(O.C.)/1600/1333/1066
RAID Support	RAID 0, 1, 5, 10
Memory Slots	4
Expansion Slots	2 x PCIe 2.0 x1, 3 x PCI
LAN	Realtek 8111E Gigabit LAN
Audio	8-Channel High Definition Audio
USB Ports	12 (6 x USB 2.0, 6 x USB 3.0)
