Asus ROG Front Base User Manual

8

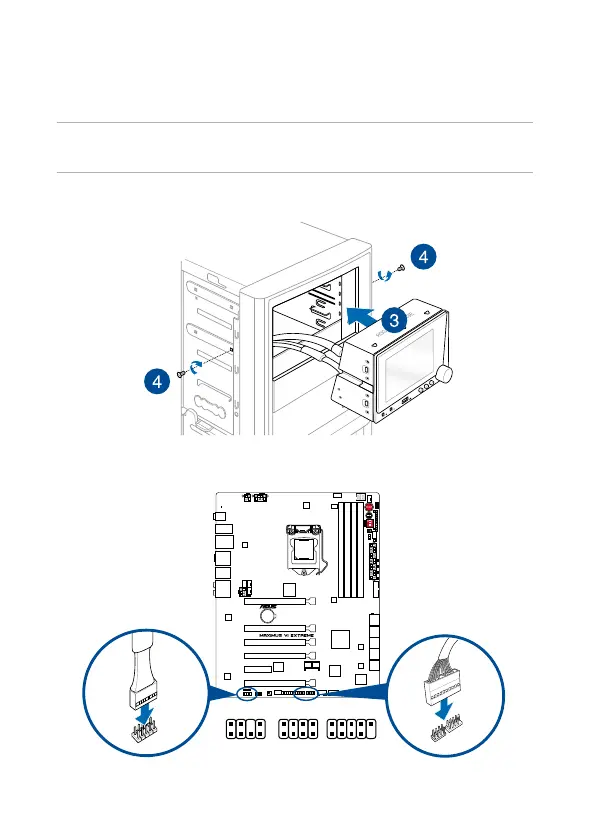

3. Align and place the ROG Front Base with its connected cable to the two (2)
empty 5.25-inch drive bays.
5. Connect the other end of the ROG_EXT cable and the AAFP cable to their
respective connectors on the motherboard.
AAFP
AAFP
ROG_EXT
ROG_EXT
NOTE: Ensure that the screw holes on the ROG Front Base matches the screw
holes on the PC chassis.
4. Secure the ROG Front Base to the PC chassis using the bundled set of
screws.
